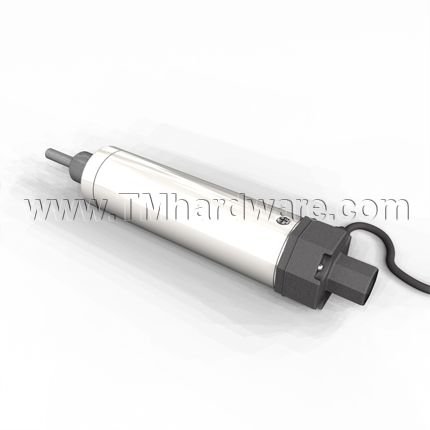

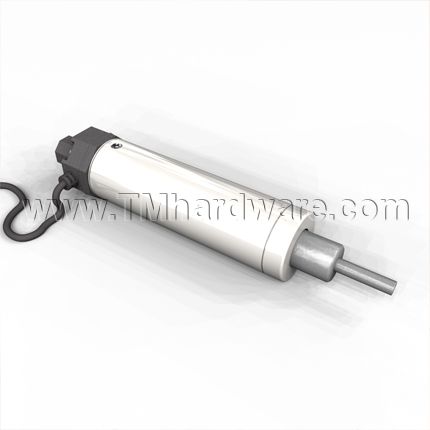

This specialty electronic actuator for standby automatic door bottoms is ideal for applications where gaps under the door are desired for ventilation but must be sealed under specified emergency conditions. The ability to activate the drop seal at will using a key pad or key switches helps to improve air circulation yet also maintain safety at all times.

A standby automatic door bottom is a standard automatic door bottom that is fitted with a specialized nut on the side where, normally, contact with the frame results in the drop-seal being activated. A hole is drilled in the frame in precisely the area where the specialized nut touches the frame, so that pressure is not applied and the seal is not activated upon normal door closure.

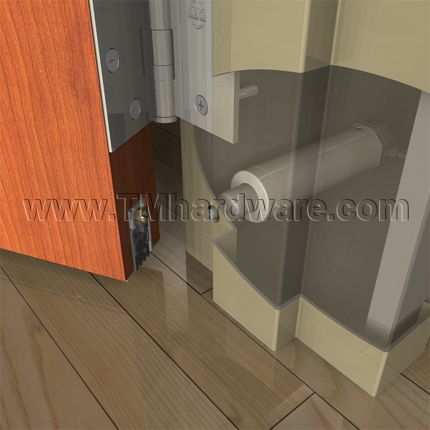

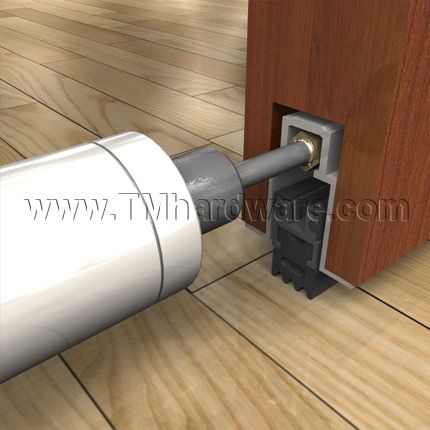

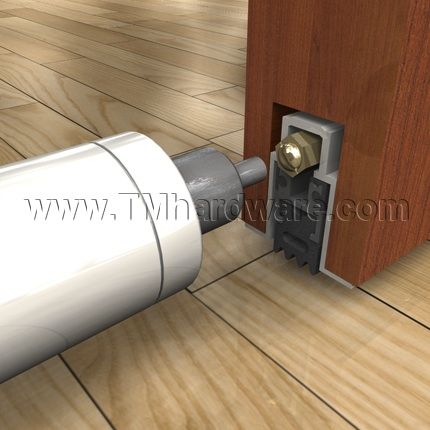

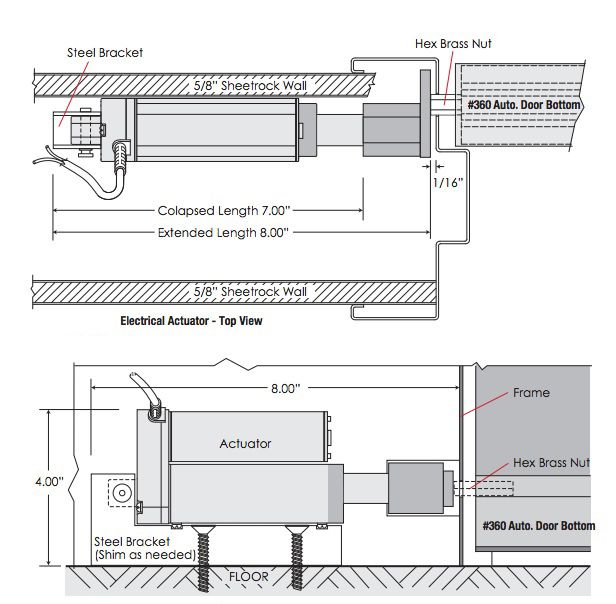

The electronic actuator is installed within the frame, and, when prompted remotely, will apply pressure to the nut and cause the drop-seal to lower (see product specs). To order a compatible Automatic Door Bottom (Z360) with the specialized nut or, alternatively, to order the requisite specialized nut for a previously purchased automatic door bottom, please contact us or call at 845-388-1300.

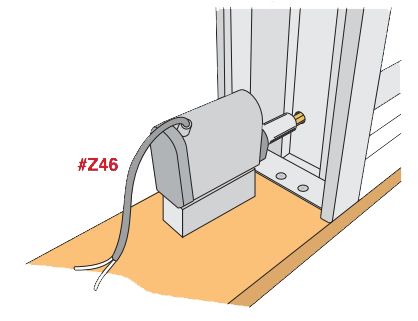

Ideal applications for this product include laboratories, hotels, security and control rooms, and any location where gaps beneath the door are necessary for ventilation yet require sealing capabilities to contain fumes, spills, smoke, and fire in the event of an emergency. See applications tab for visual representation of uses.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.

Please see our other Automatic Door Bottoms.

    • SKU
      ZRZ46
  • QuickShip
    No
  • Manufacturer
    Zero International
  • MPN
    Z46
