Falcon 2390 Series, Recessed Exit Device with Concealed Vertical Rod - Cylindrical Functions
This item has been discontinued - For similar item see our Adams Rite Exit Device 8500 / 3600 Series

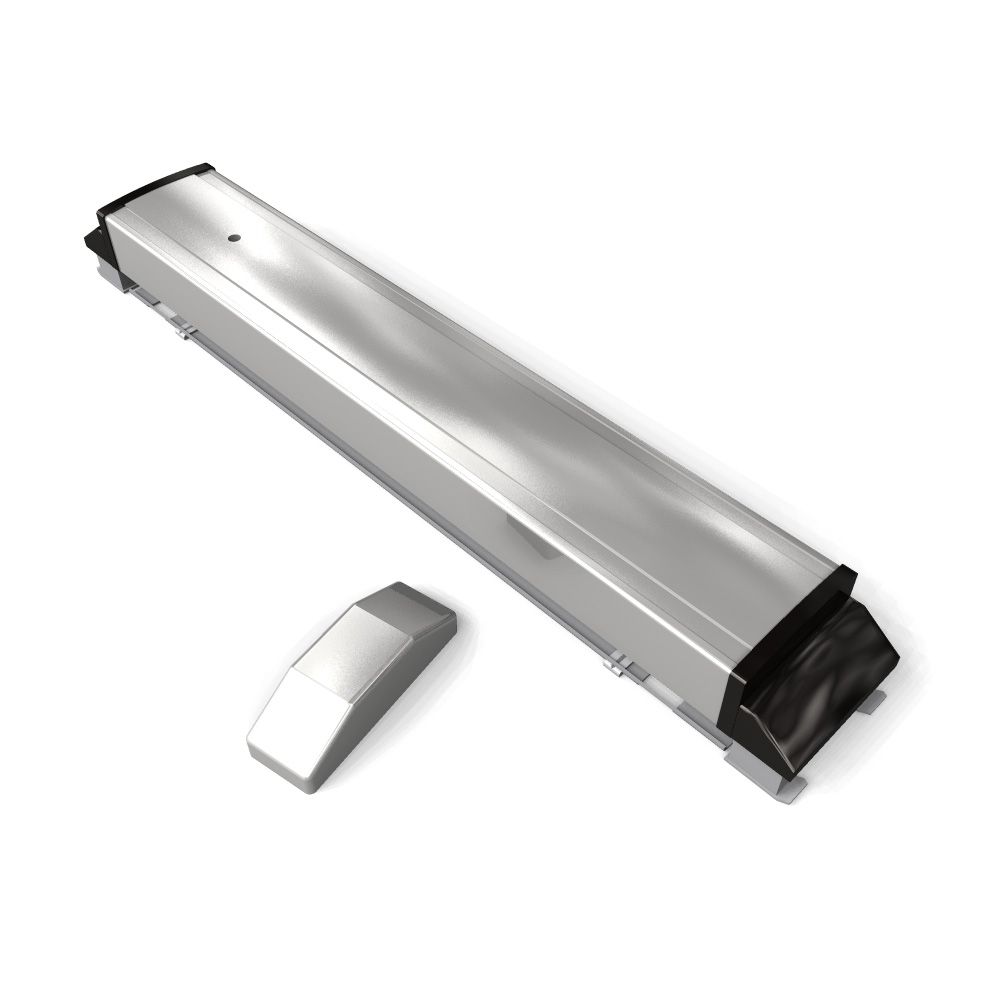

Falcon 2390 Recessed Exit Device with Concealed Vertical Rods.
Functions:
- 2392NL/HB-OP: Pushpad Exit Device, Cylinder assembly with Night Latch and Hold Back Options.
- 2395NL/HB-OP: Pushpad Exit Device, Cylinder assembly with Night Latch and Hold Back Options, less cylinder.
- 2398: Dummy Exit Device.
- 2390EO: Click here to view Falcon 2390EO Recessed Exit Device with Exit Only Function.
Design: Recessed device designed for high use and abuse. Sits in the rail of the door preventing damage by large equipment moving in and out of the door. Concealed rods are hidden to prevent tampering and are protected from the environment.
Device Size: Choose from 2 size options: 21" or 24". Device is easily cut to size on the field during installation. See Product Data Tab to determine length needed.
Handing: Non handed
Door Type: For Aluminum Doors.
Door Size: 42" or 48" Width X 84" Height. 21" device for doors 42", 24" device for doors up to 48" wide. See Product Data Tab for more information.
Door Thickness: For 1 3/4" thick metal doors. Specify in order comments if other than 1 3/4" thick.
Door Stile Thickness: 1 3/4" thick door stile, minimum.
Cylinder: Mortise, key entry (NL) or hold back (HB) available and field selectable.
Strikes: PB48 top.
Dogging feature: Hex Key Dogging standard, except EL where must use hold back feature.
Latches: Hex bottom latch (standard), RL- rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
Projections: 1 5/8" with pushbar extended.
Fasteners: All mounting screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
End Caps: Sloped metal end caps
Door Height: Available for doors up to : 7', 8', 9' and 10'. Select Door Height above and extension rods will be furnished upon request.
Mounting Height: Furnished to length based on a 40" horizontal CL from finished floor. Centerline must be specified above.
ANSI: Certified ANSI A156.3 Grade 1 standards
Applications: For institutional, commercial, retail, education installations and all areas with moderate to frequent traffic.
Installation: Easy rod adjustment simplifies the installation process. See Installation Tab below for complete installation instructions.
Additional Options: Including electrical modifications and extension rods are available through our office. To order please contact us or call our office at 845-388-1300.
Priced per piece
This product has a 10 year warranty against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
Click here to view our Falcon XX-C Crossbar Exit Device with Concealed Vertical Rod.
-
QuickShipNo
-
ManufacturerFalcon
-
MPN2392NL/HB-OP; 2395NL/HB-OP; 2398
-
FunctionCylinder Assy With Cyl #2392, Cylinder Assy Less Cyl #2395, Dummy Exit Device #2398
-
Finish OptionsClear Aluminum (US28), Dark Bronze Aluminum (DC13), Black Aluminum (DC35)
-
Size21", 24"
-
Centerline40", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50"
-
Door Height7' Height (Standard), 8' Height, 9' Height, 10' Height
Printable Documents:
Click to print Installation Instructions for Falcon 2390 Exit Device.
Installation:
