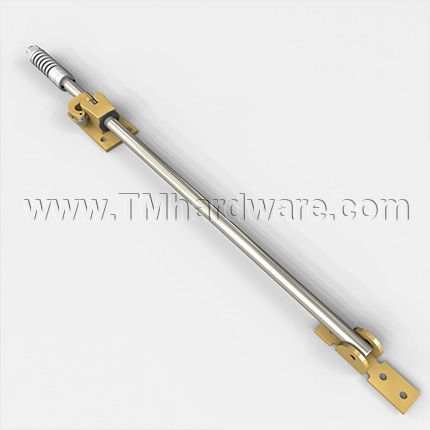

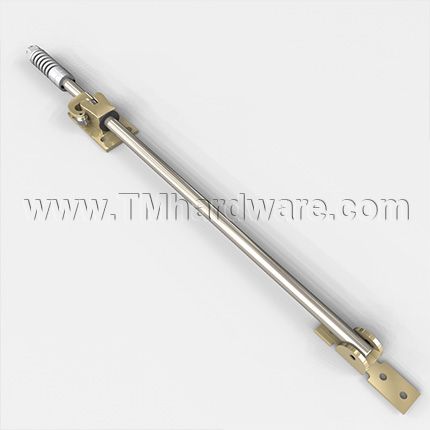

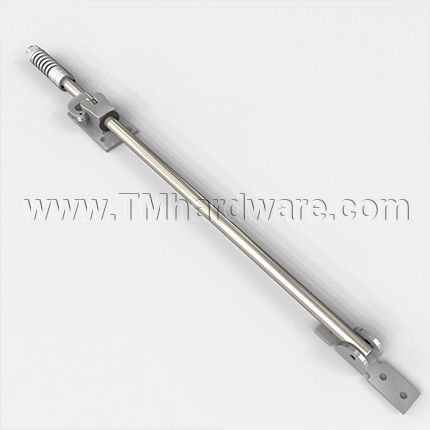

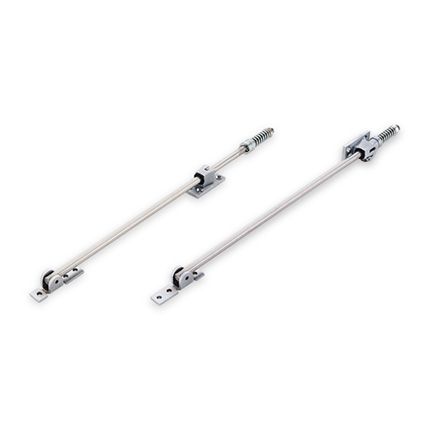

Glynn Johnson 79 Overhead Holder - Surface Mounted, Extra Heavy Duty

Glynn Johnson 79 Overhead Holder - Surface Mounted, Extra Heavy Duty
Glynn Johnson

Glynn Johnson 79 Series Overhead Door Holders and Stops are extra heavy-duty and surface applied for high-traffic, industrial applications. Product is available with an option of hold-open or stop only functions and a wide array of finish options.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      GJ792S-US3
    • Starting price: Price: $452.00 per item


    Glynn Johnson 79 Series Overhead Door Holders and Stops are extra heavy-duty and surface applied for high-traffic, industrial applications. Product is available with an option of hold-open or stop only functions.

    Materials: 79 series models are constructed primarily of brass and 300 series stainless steel substrates, with several components fabricated of steel treated to resist corrosion. 3/4" diameter stainless steel bar provided in US32D finish. Spring, washer and nut provided in a clear, zinc finish.

    Function: Hold-Open model: Provides a selective hold-open function with easy-to-adjust tension. Simple 90 degree rotation of the roller mechanism disables the Hold-Open function, allowing the unit to serve as a shock-absorbing stop.  Hold-Open function provides a convenient method of holding the door open at a predetermined location for short or long periods of time, permitting an unobstructed traffic flow through the opening.

    Stop-Only model: Provides a reliable method of door control when the hold-open function is not a requirement. Provides shock-absorbing capability and may be used on fire doors.

    Angle Jamb Bracket: Available to convert standard models to flush transom mounting. Affixes to standard jamb brackets.

    Classification: Stop only models are UL listed as miscellaneous fire door accessories. May be used on hollow metal fire doors or wood fire doors without adversely affecting the fire rating on the fire door and/or fire door frame.

    Installation: Product is provided with templates to allow for variable mounting positions, ranging from 85 degrees to 110 degrees hold-open/stop angle.  Templates are designed for installation in almost all types of doors. See Installation Tab for complete installation instructions.

    Additional Options: including angle jamb brackets, sex bolts and pin-in-socket security screws can be ordered. Please contact us or call our office at 845-388-1300.

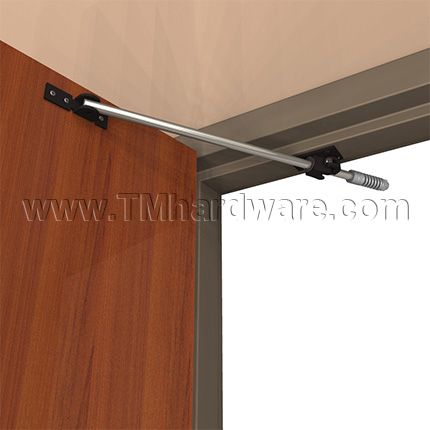

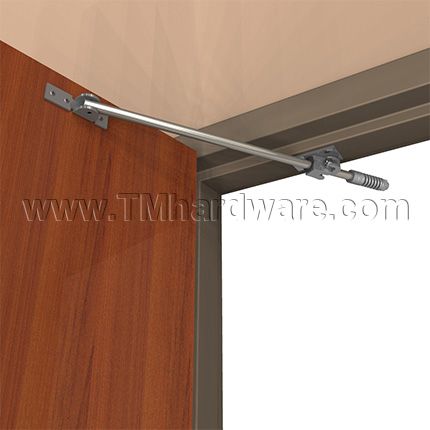

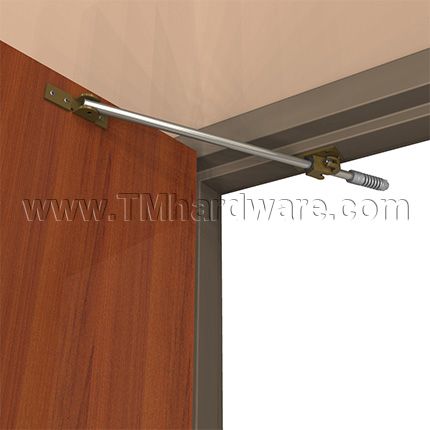

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show details.

    For additional options, see our Glynn Johnson 81 Series Overhead Holders.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

      • SKU
        GJ792S-US3
    • Material
      Brass, Stainless Steel
    • Strength
      Extra Heavy Duty
    • Size
      2 (23 1/16" - 27"), 3 (27 1/16" - 33"), 4 (33 1/16" - 39"), 5 (39 1/16" - 45"), 6 (45 1/16" - 54")
    • Function
      Stop- Only, Hold-Open
    • Mounting
      Surface Mount
    • QuickShip
      No
    • Manufacturer
      Glynn Johnson
    • MPN
      G79
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil-Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D), Powder Coat Brass (SP4), Powder Coat Bronze (SP10), Powder Coat Aluminum (SP28), Powder Coat Dark Bronze (SP313), Powder Coat Black (SPBLK)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        C08511, C08541
      • Warranty
        1 Year Limited Warranty

    Printable Documents:

    Click to print Glynn Johnson 79 Series Surface Mounted Overhead Door Holder Product Specs.

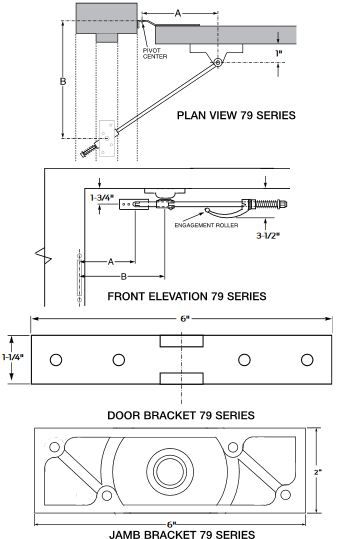

    Sample Applications:

    Glynn Johnson 79 Series Sample Applications

    Sizing Options:
    Glynn Johnson 70 Series Sizing Chart

    Certifications:
    Glynn Johnson 70 Series Certifications
