Ives Door Hinge, 5 Knuckle, Ball Bearing, Swing Clear, Heavy Weight Full Mortise, Steel Hinge

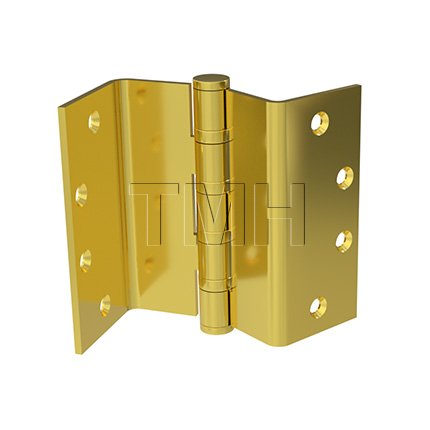

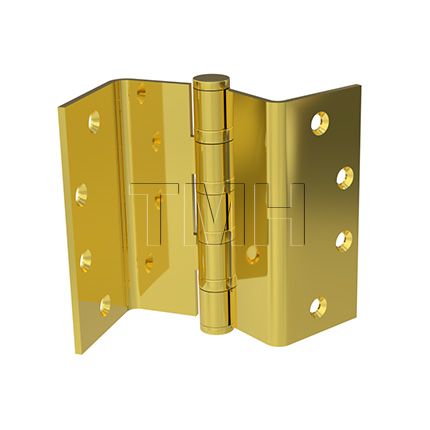

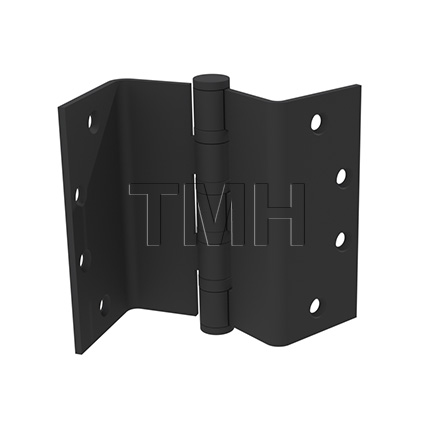

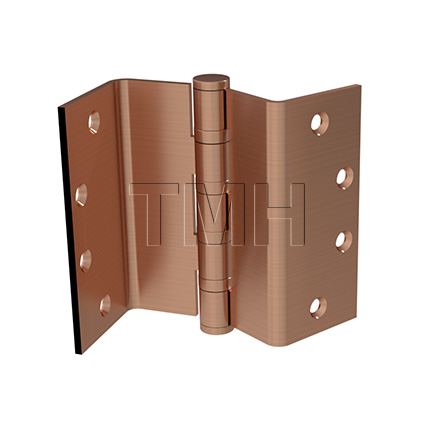

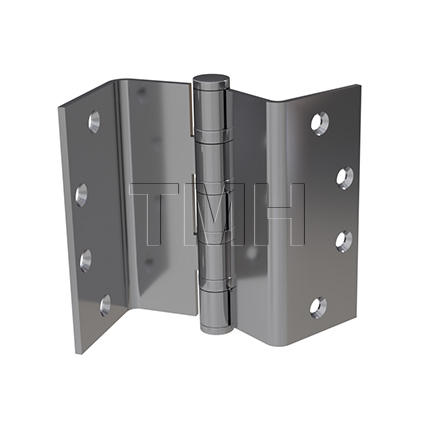

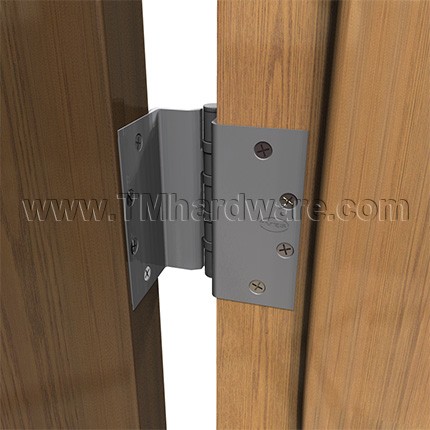

This Ives 5 Knuckle, Ball Bearing, Swing Clear, Heavy Weight, Full Mortise Hinge is made from 1040 steel. This hinge is designed to completely clear the opening when the door is open at 92°. Ives 5BB1SCHW is made with two ball bearing assemblies and is recommended for use in ADA door opening applications. The hinge is made for square edge doors and is suitable for heavier weight doors (>150 lbs.) with high frequency usage (400 cycles per day). Many sizes and finishes available; select from the options below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      VS5BB1SCHW-4.5-633
    • Market price:$81.60
      • save 35%
    • Starting price: Price: $53.04 per item


    This Ives 5 Knuckle, Ball Bearing, Swing Clear, Heavy Weight Full Mortise Hinge is made from 1040 steel or 304 series stainless steel. This hinge is designed to completely clear the opening when the door is open at 92°. Ives 5BB1SCHW is made with two ball bearing assemblies and is recommended for use in ADA door opening applications. The hinge is made for square edge doors and is suitable for heavy weight doors (>150 lbs.) with high frequency usage (400 cycles per day).

    Size Options:

    dimensions

    Hinge Options:

    • Rounded Corners
    • Non-Removable Pin (NRP): Pins have a set screw to prevent tampering with the pin while the door is closed. Select from the options above.

    Additional Hinge Options: To order, please contact us or call our office at (845) 388-1300.

    • Hospital Tip: Used primarily for security areas in Hospitals, Prisons, Mental Health Facilities and Clean Rooms. Hospital tip hinges serves to assist in preventing hanging any objects on the tip of the hinge.
    • Security Fasteners: Pin-in-Socket. Protects the door from being removed by locking the leaves of the hinges together.
    • Four Wire: Provides electric power transfer from the frame to the door in order to supply power to an electrified mortise or cylindrical locks, exit devices with electric latch retraction, and/or electric strikes (pairs of doors). Comes standard with NRP.
    • Four Wire with Monitor: Comes standard with NRP.
    • Eight Wire: Provides electric power transfer from the frame to the door in order to supply power to an electrified mortise or cylindrical locks, exit devices with electric latch retraction, and/or electric strikes (pairs of doors). Comes standard with NRP.
    • Eight Wire with Monitor: Comes standard with NRP.
    • Monitor: Comes standard with NRP.

    Please note, detailed images are for illustrative purposes only. Images on screen may appear slightly different in real application. Actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    Click to view our Ives 5BB1BSC, 5 Knuckle, Ball Bearing, Beveled Swing Clear, Full Mortise, Steel Hinge.

      • SKU
        VS5BB1SCHW-4.5-633
    • QuickShip
      No
    • Manufacturer
      Ives
    • MPN
      5BB1SCHW
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Steel, Stainless Steel
      • Usage Level
        Extra Heavy Duty
      • Throw
        Swing Clear Throw
      • Bearing Type
        Ball Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin, Non-Removeable Pin (NRP)
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner, 5/8" Radius Corner, 1/4" Radius Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Thickness
        See Dimensions Chart
      • Hinge Height
        4-1/2", 5"
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Supplied With Fasteners for hollow metal and wood doors:
        12-24 x 1/2 UFPHMS
        12 x 1 1/4 FPHWS
    • Additional Options - Purchase Through Our Office
      • Hospital Tip
        Yes
      • Security Fasteners
        Yes
      • Electric Modifications
        Yes
    • Finishes
      • Finish
        Prime Coat (USP), Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Antique Bronze (US10A), Satin Bronze, Blackened (US11), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), Aged Bronze (US11E), Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A156.1, A156.7
      • Warranty
        1 Year Limited Warranty
    • Certified to ANSI/BHMA A156.1 for performance standards.
    • Meets ANSI/BHMA 156.7 for template  hinge dimensions.
