HF2/100A P.C. Henderson Folding Doors/ Room Dividers up to 100 Lbs., Doors up to 24" W

Aluminum folding door and room divider hardware kit for doors weighing 100 lbs., measuring up to 24” wide and 96” tall.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      PHHF2/100A/2
    • Market price:$115.20
      • save 15%
    • Starting price: Price: $97.92 per set


    Key Product Features:

    • Manufactured by PC Henderson
    • High quality hardware
    • Result: Medium weight folding doors that are efficient and easy to use.
    • Two and four leaf kits are available.
    • Overhead and Sidewall Mounting Options

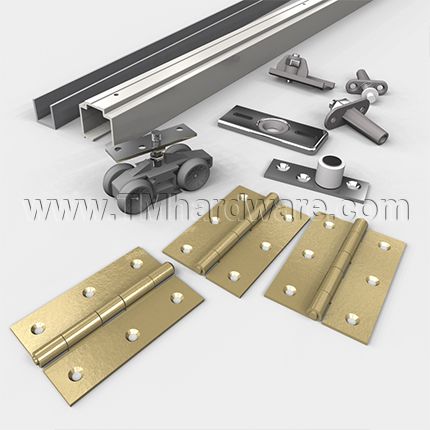

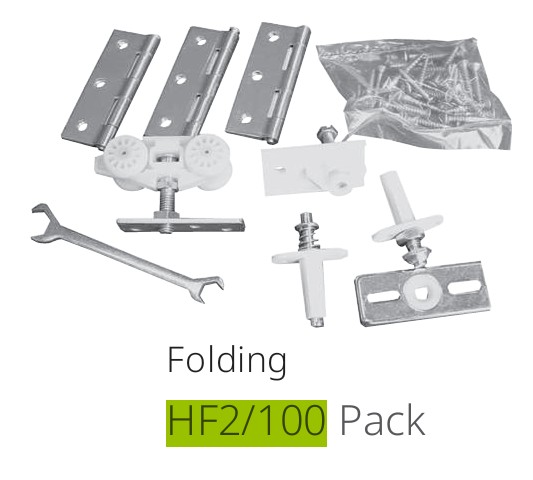

    Folding 100 Series Kit Includes: See product specs and detailed images for visual aid.

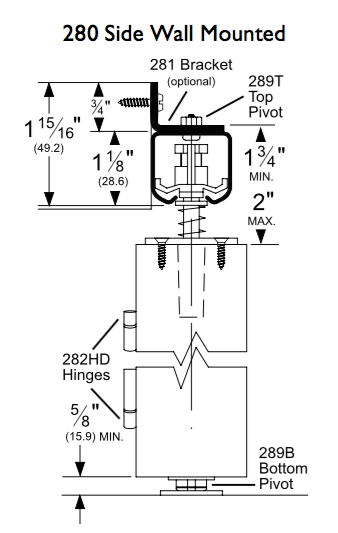

    Side Wall Mounting Option:

    • Includes side wall bracket to reduce the amount of wall space needed to mount the track.
    • Note: 1 side wall track bracket is required at each end and not more than 3 feet in between. Appropriate number of brackets come according to length ordered. Fasteners included.

    Dimensions and Installation Information: See product specs and Installation Instructions in tabs to the right for more information and clearance information.

    Materials: Aluminum track and guide channel. Nylon Bodied Hanger is smooth rolling, with needle bearing, acetal wheels. Bottom roller guide is steel plate with nylon roller.

    Additional Customization Options: Dual guide channel, roller guide, mortise bottom channel and surface mounted bottom channel are available. See customization tab and detailed images for more on these products. To purchase any of these options, please contact us or call us at (845) 388-1300.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.

    Click to view our Full Warranty Policy.

    See our Bypass Track Sliding Door Series, 200 Lbs/Door for an alternative multiple door option.

      • SKU
        PHHF2/100A/2
    • QuickShip
      No
    • Manufacturer
      PC Henderson
    • MPN
      HF2/100A_, HF4/100A_
    • Panels
      2 Panels, 24" Track, 2 Panels, 36" Track, 2 Panels, 48" Track, 4 Panels, 48" Track, 4 Panels, 72" Track, 4 Panels, 96" Track
    • About This Product
      • Mounting Type
        Sidewall Mount, Overhead Mount
      • Door Mount
        Surface Mount
      • Track Type
        Box Track
      • System Type
        2 Door Folding System, 4 Door Folding System

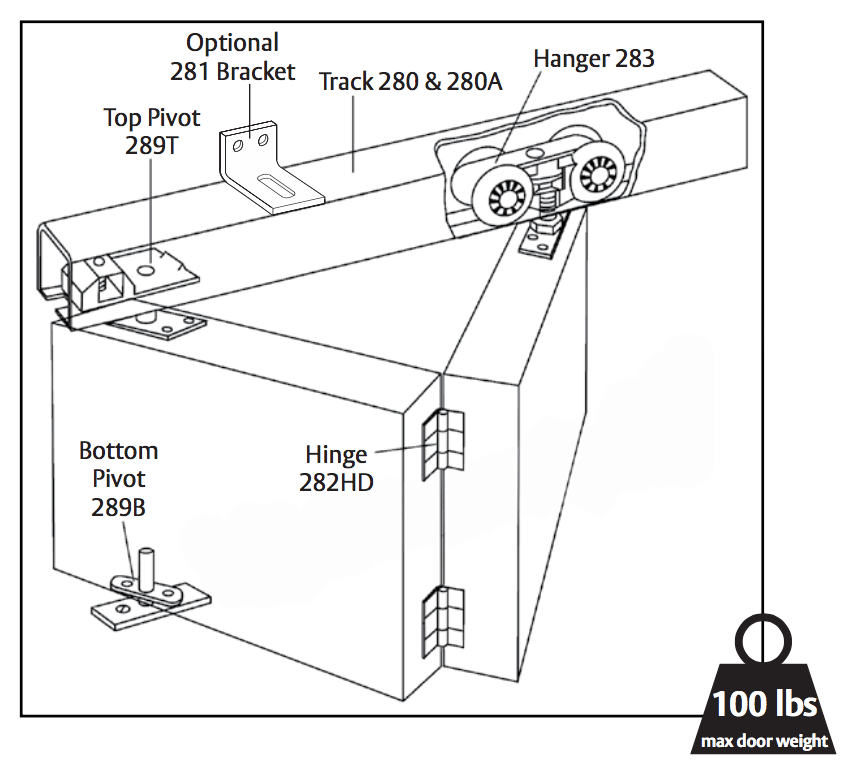

      • Included Parts
        HF2/100A Kits (2 Panel):
        Mill Finished Aluminum Track – 280A (1 ea.)
        Hanger – 283 (1 ea.)
        Top Pivot – 289T (1 ea.)
        Bottom Pivot – 289B (1 ea.)
        Hinges – 282HD (3 ea.)
        Roller Guide – 106HF/94 (1 ea.)
        Aluminum Guide Channel – 94A (1 ea.)
        Adjusting Wrench and Mounting Hardware (1 ea.)
        HF4/100A Kits Include (4 Panel)
        Mill Finished Aluminum Track – 280A (1 ea.)
        Hanger – 283 (2 ea.)
        Top Pivot – 289T (2 ea.)
        Bottom Pivot – 289B (2 ea.)
        Hinges – 282HD (6 ea.)
        Roller Guide – 106HF/94 (2 ea.)
        Aluminum Guide Channel – 94A (1 ea.)
        Adjusting Wrench and Mounting Hardware (1 ea.)
        Side Wall Mounting Option will also include:
        Aluminum Brackets – P2815 (Pack of 5)
    • Dimensions
      • Door Panel Weight
        Up to 100 lbs
      • Door Width
        Up to 24" Wide
      • Door Thickness
        1-3/4" Thick
      • Track Length
        24" Length, 36" Length, 48" Length, 72" Length, 96" Length
      • Door Height
        96" Height
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Click to Print Product Specs

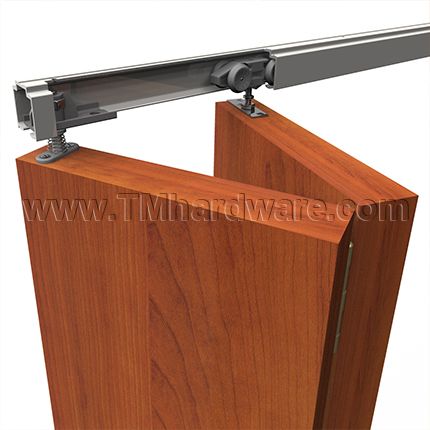

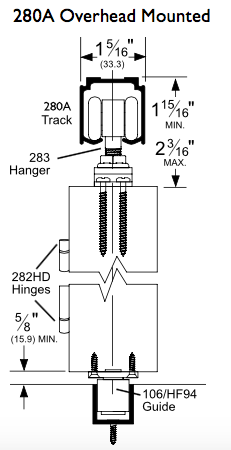

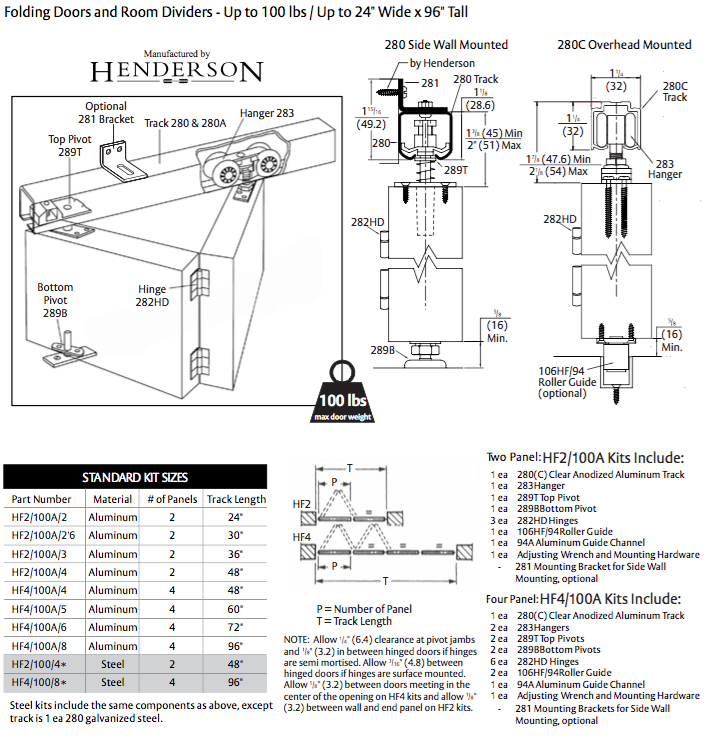

    Folding Doors/ Room Dividers up to 100 Lbs., Doors up to 24" W x 96" H, overhead mount Folding Doors/ Room Dividers up to 100 Lbs., Doors up to 24" W x 96" H, Sidewall Mount

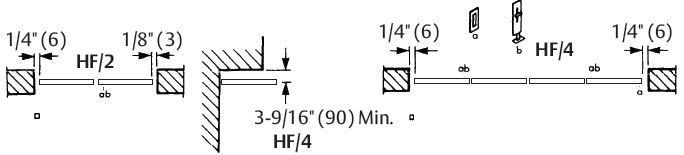

    Door Configuration Options:

    HF2/100 Sliding Door Hardware Configurations

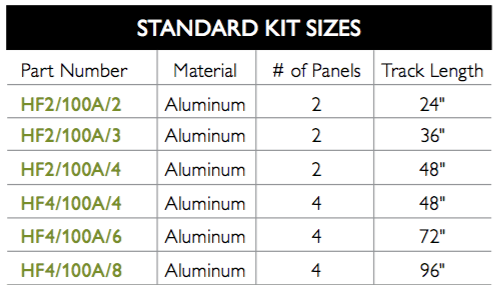

    Standard Kit Sizes:

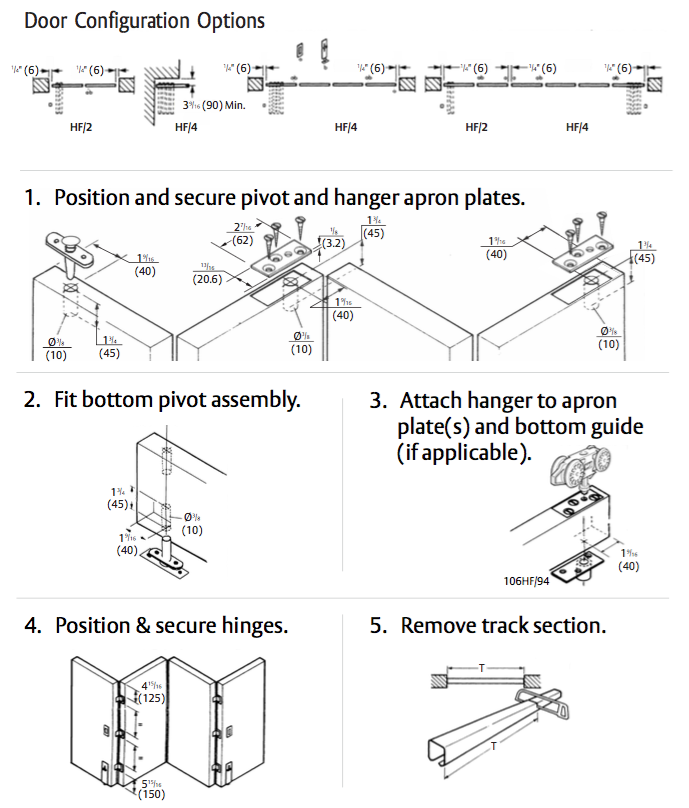

          Click to Print Installation Guide.

    Important clearance information:

    • Allow 1⁄4" clearance at pivot jambs and 1⁄8" in between hinged doors if hinges are semi mortised.
    • Allow 3⁄16" between hinged doors if hinges are surface mounted.
    • Allow 1⁄8" between doors meeting in the center of the opening on HF4 kits and allow 1⁄8" between wall and end panel on HF2 kits.

    Folding Doors/ Room Dividers up to 100 Lbs., Doors up to 24" W x 96" H, Installation Instructions

    Finishes Comply with the Following ANSI / BHMA Codes:

    • Aluminum Mill Finish - US27 / 719

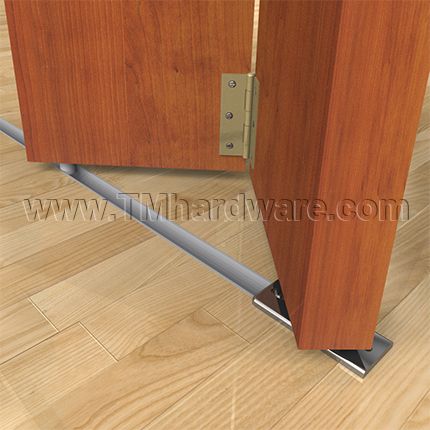

    1. Bottom Channel (94A): Used as a guide channel when using a Roller Guide. Roller guide is used instead of a mortise guide (described below).

    2. Roller Guide (106R/94): In place of a mortise in the bottom of the door for the bottom guide, this roller guide can be installed at the bottom of the door and used with a guide channel (94A).

    3. Aluminum, 5” Wide Threshold with Guide Channel (971A): Used in place of a bottom channel with all the benefits of a threshold. Please contact us to order.
