PIF_/165A P.C. Henderson Folding Doors/ Room Dividers, 165 Lbs., Heavy Duty Alum., Doors up to 36" W x 106" H

PIF_/165A Heavy Duty Aluminum Folding Door and Room Divider Hardware Kit for doors weighing 165 lbs., measuring up to 36” wide and 106” tall. For residential and commercial applications requiring end folding doors.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information

Quantity

Add to compare

Key Product Features:

Manufactured by PC Henderson
For top-hung, medium weight, interior partition doors
Heavy duty mill finished aluminum track
Ideal in both residential and commercial applications requiring end folding doors.

Configurations:

Overhead Mount
Two door panel installation
Bi-parting, four-door panel installation.

Folding 100 Series Kit Includes: See product specs and detailed images for visual aid.

Dimensions and Installation Information: For doors measuring 36" Wide x 106" Height. See product specs and Installation Instructions in tabs to the right for more information.

Materials: Heavy duty track, guide channel, and hinges are made of aluminum. Nylon bodied hanger is smooth rolling, with nylon wheels. Zinc coated steel pendant bolt and nylon bottom roller guide.

Additional Customization Options: Including surface mounted door thresholds are available. See customization tab to the right and detailed images above for more on these products.

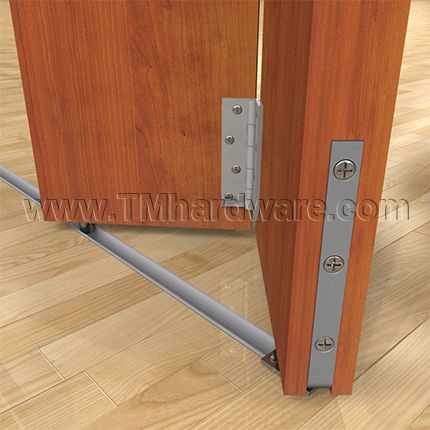

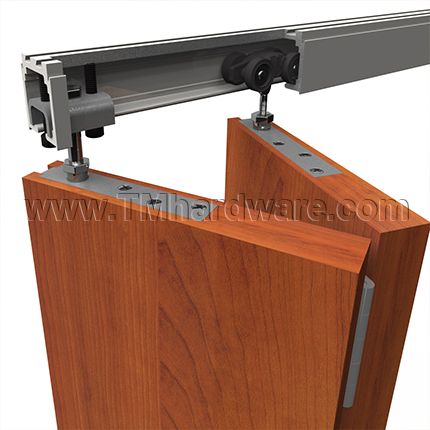

Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.

Click to view our Full Warranty Policy.

Many variations of sliding doors are available. See our Folding Doors/ Room Dividers up to 100 Lbs., Doors up to 24" Wide x 96" Tall for an alternative multiple door option.

- SKU
  PHIF2/165A/6
QuickShip
No
Manufacturer
PC Henderson
MPN
PIF2/165A, PIF4/165A
About This Product
- Mounting Type
  Overhead Mount
- Door Mount
  Surface Mount
- Track Type
  Box Track
- System Type
  2 Door Folding System, 4 Door Folding System
- Included Parts
  PIF2/165A (2 Panel) Kits Include:
  Mill Finished Aluminum Track - 600A (1 ea.)
  Top and Bottom Pivot Assembly 21B/P (1 ea.)
  Nylon Body and Wheels, Zinc Coated Steel Pendant Bolt and Door Bracket Hanger - 21B/4 (1 ea.)
  Nylon Roller Guide on Zinc Coated Steel Door Bracket Bottom Guide - 21N/94 (1 ea.)
  Aluminum Alloy Butt Hinges - 403/2 (4 ea.)
  Aluminum Guide Channel - 94A (1 ea.)
  PIF4/165A (4 Panel) Kits Include:
  Mill Finished Aluminum Track - 600A (1 ea.)
  Top and Bottom Pivot Assembly - 21B/P (2 ea)
  Nylon Body and Wheels, Zinc coated steel Pendant Bolt and Door Bracket Hanger - 21B/4 (2 ea.)
  Nylon Roller Guide on Zinc Coated Steel Door Bracket Bottom Guide - 21N/94 (2 ea.)
  Aluminum Alloy Butt Hinges - 403/2 (8 ea.)
  Aluminum Guide Channel - 94A (1 ea.)
- Material
  Aluminum
Dimensions
- Door Panel Weight
  Up to 165 lbs (75 kg)
- Door Width
  Up to 36" Wide
- Track Length
  72" Length, 96" Length, 12 FT. System - 2 x 72" Track
- Door Height
  106" Height
Compliance Details
- Warranty
  5 Year Limited Warranty

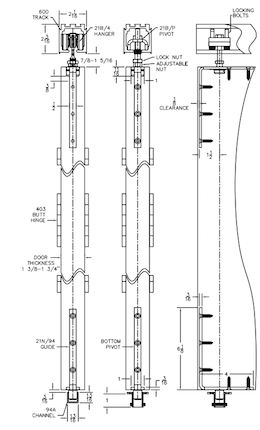

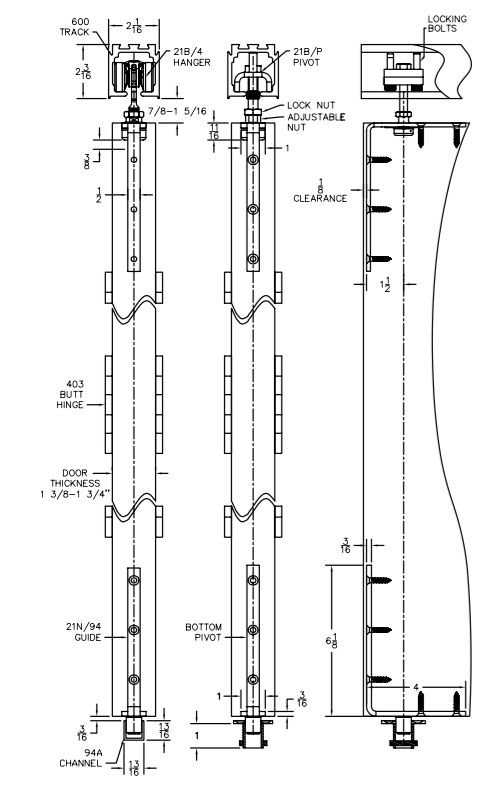

Product Specs:

Click to Print Product Specs

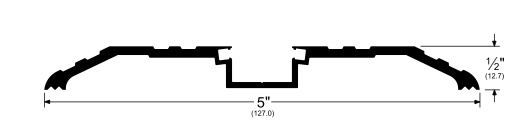

Optional Threshold 971A

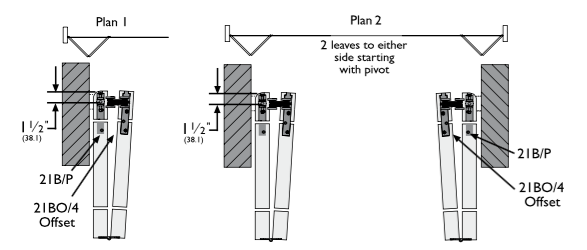

Configurations:

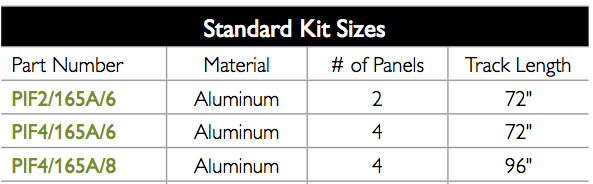

Standard Kit Sizes:

Click to Print Installation Guide.

Important Clearance Information:

Allow 3⁄8" clearance at pivot jambs and 1⁄8" in between hinged doors if hinges are semi mortised.
Allow 7⁄16" between hinged doors if hinges are surface mounted.
Allow 1⁄8" between doors meeting in the center of the opening on PIF4 kits
Allow 1⁄8" between wall and end panel on PIF2 kits.

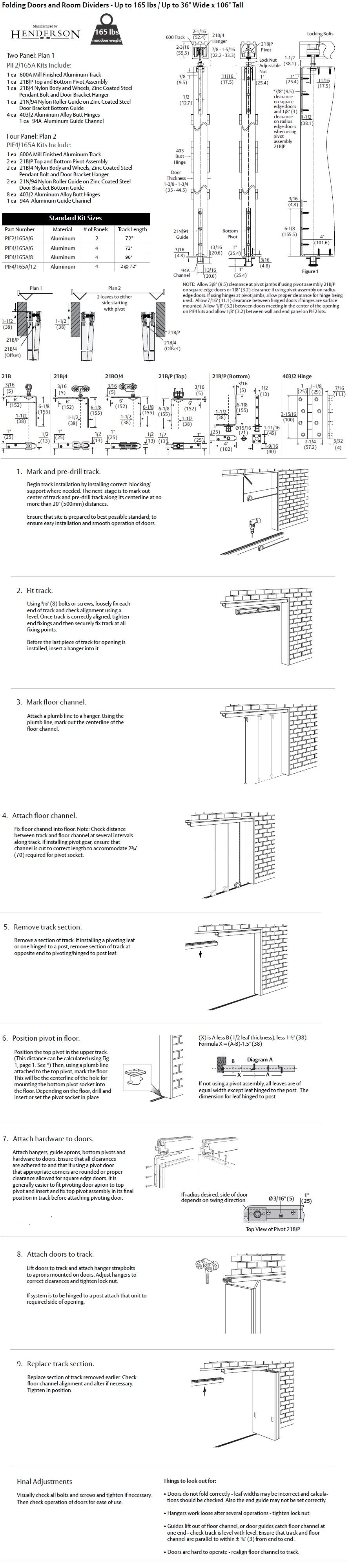

Installation Instructions:

PIF_/165A Sliding Door Hardware Installation Instructions

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719

1. Aluminum, 5” Wide Threshold with Guide Channel (971A): Used in place of a bottom channel with all the benefits of a threshold. Please contact us to order.
