Pemko #PF28200 Pocket Frame Kit, Aluminum and Wooden Doors

PF28200A Pocket Frame Kit- Parts
PC Henderson

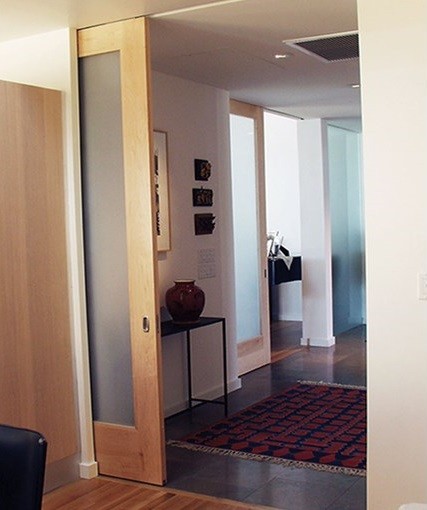

Aluminum and Solid Wood Pocket Frame Kit conceals the sliding door within a pocket in the wall when door is open. For doors up to 175 lbs each and measuring 1 3/8” thick, with additional sizes and options available through our office. ADA Approved.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      PKPF28200A6080
    • Market price:$264.09
      • save 15%
    • Starting price: Price: $224.48 per set


    Key Product Features:

    •  Heavy duty hardware supports doors up to 175 lbs.

      • Standard kit is for 1-3/8” door. For 1-3/4” door, MUST use PF134KIT (see Customization Tab Below)

    •  Door actuation requires less than 5 lbs. of horizontal force, meeting ADA requirements

    •  Extruded aluminum track

    •  Solid wood studs encased in extruded aluminum reduces corrosion and minimizes bowing effects

      • Chrome plated steel hangers are corrosion resistant and no maintenance is required

      • Knock-down construction

    Pocket Frame Kit Includes: See product specs and detailed images for visual aid

    Dimensions and Installation Information: See Product Specs and Installation Instructions in tabs below for more information.

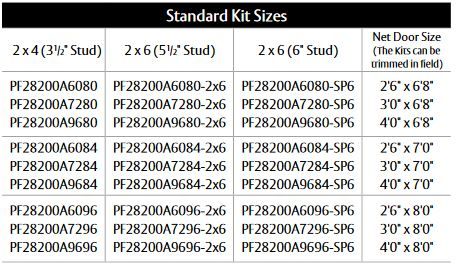

    Standard Kit Sizes: 2x4 with 3.5" solid wood stud, 2x6 with 5.5" solid wood stud and 2x6 with full 6" net stud.

    *Pocket Frame Conversion Kit: Standard kit is designed for 1-3/8" Doors. Pocket frame conversation kit can be used to convert to 1-3/4" thick doors. Compatible ONLY for 2x4 stud assembly.

    Materials: Aluminum track, aluminum cased solid wood studs, and chrome plated steel hangers.

    Additional Customization Options: See customization options tab below and detailed images above for more on these products.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    Many variations of sliding doors are available. See our PC Henderson SIM200A Simultaneous Action Sliding Door Series, 200 Lbs. /Door.

      • SKU
        PKPF28200A6080
    • QuickShip
      No
    • Manufacturer
      PC Henderson
    • MPN
      PF28200A_
    • About This Product
      • Wall Size
        2x4 Studs, 2x6 Wood Studs, 2x6 Metal Studs
      • Mounting Type
        Overhead Mount
      • Door Mount
        Surface Mount
      • Track Type
        Box Track
      • System Type
        Pocket Door Kit
      • Included Parts
        Header Track Assembly (1 ea.)
        PFAS_Aluminum Cased Wood Studs (4 ea.)
        PFHB-1 and PFHB-2 Pre-Mounted Header Brackets (2 ea.)
        H222-45 Hangers (2 ea.)
        PFFC-8 Floor Cleats (2 ea.)
        PFBS Pocket Bumper Stop (1 ea.)
        PFBG-8 Pocket Frame Bottom guide for 1-3/8” thick doors (1 ea.)
        Mounting Hardware
      • Material
        Aluminum
    • Dimensions
      • Door Panel Weight
        175 Lb Doors
      • Door Width
        30" Width, 36" Width, 48" Width
      • Door Thickness
        1 3/8" Thick, 1 3/4" Thick
      • Door Height
        80" Height, 84" Height, 96" Height
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Click to Print

    Pocket frame door specs

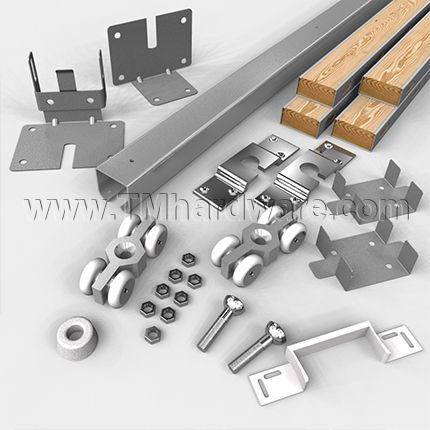

    Product Parts:

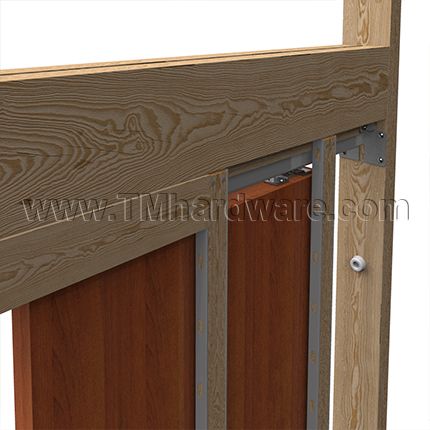

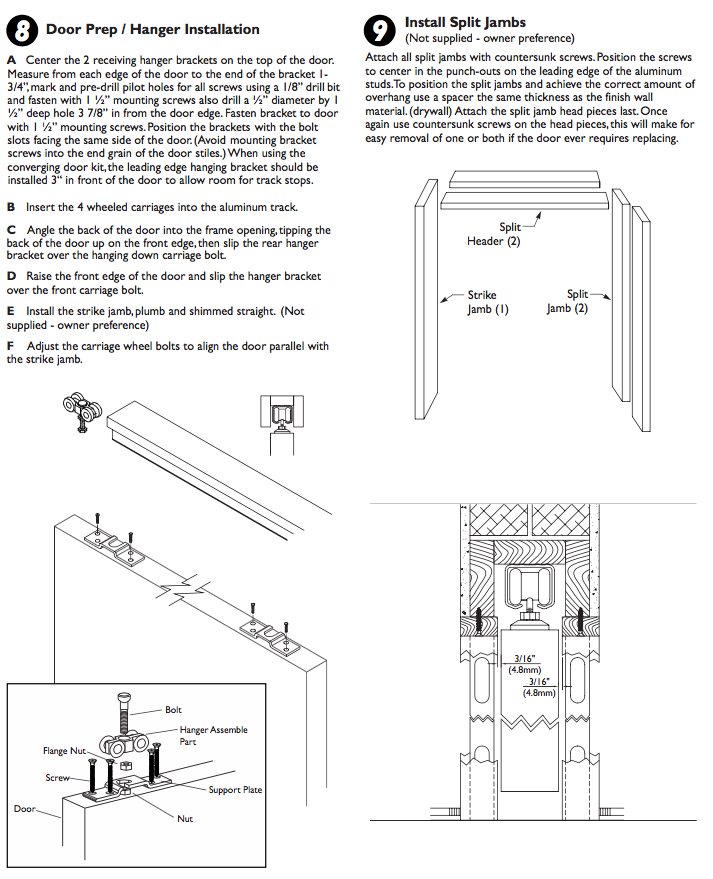

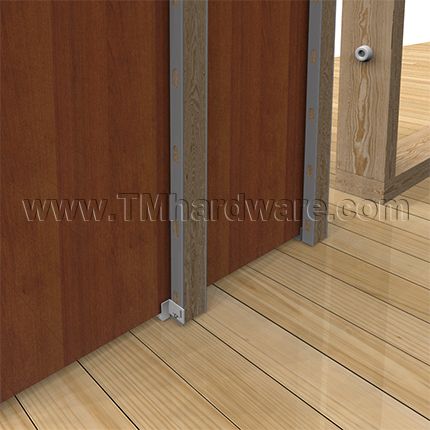

     included parts in the pocket frame sliding door kit image demonstrating installation of pocket frame sliding door

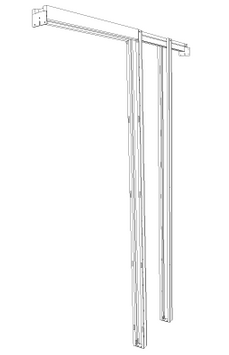

    Dimensions:

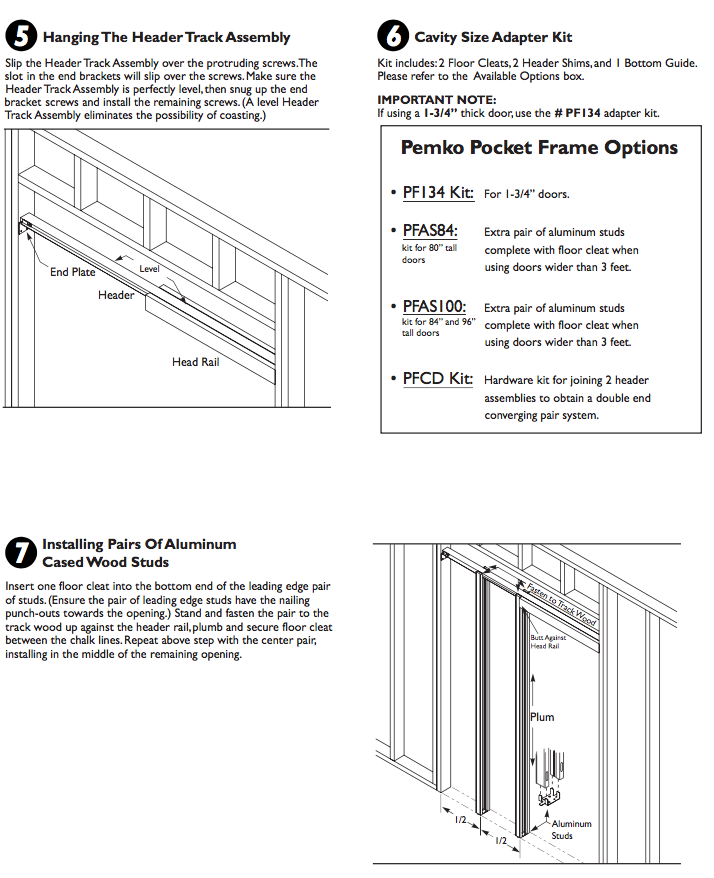

    PF28200A Sliding Door Hardware Options

    Complies with:

    Door actuation requires less than 5 lbs of horizontal force, meeting ADA requirements

    To order any of these options, please contact us or call us at (845) 388-1300.

    1) PF134KIT: MUST use to allow pocket frame kit compatible with 1-3/4” thick doors.

    2) PFAS88: An extra pair of 88" center studs with floor cleat for 84" (7ft.) tall doors, for doors over 3' wide.

    3) PFAS100: An extra pair of 100" center studs with floor cleat for 96" (8ft.) tall doors, for doors over 3' wide.
