Hager 9674 Bypass Track Sliding Door System, 150 Lb. Door

Hager 9674 Bypass Track Sliding Door System, 150 Lb. Door
Hager Companies

This Item has been discontinued - For similar items please see our Hager 9611CS Bypass

See tabs below for additional information
    • SKU
      HG9674-48_136345
    Call for price!
    845-388-1300

    Click here to view Hager 9674 Series from Hager Full Line Catalog.

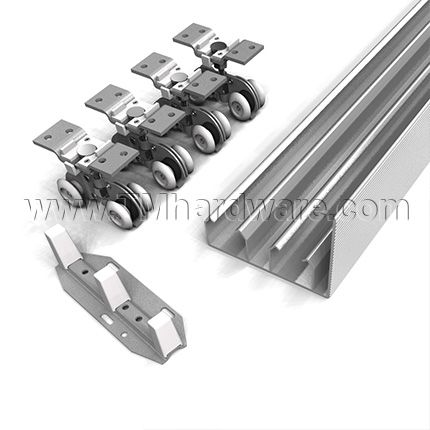

    Included Parts for 9674 Bypass sets: Components can be ordered separately, see links below.

    Mounting Type: Aluminum Bypass Track and Hardware for 2 doors.

    Track Lengths: Available in stock lengths up to 96". Tracks up to 144" lengths can be purchased through our office.

    Materials: Track is made of extruded aluminum jump-proof style with "V" shaped rails. Micro Adjust Hanger made from Steel with brass-tone dichromate finish and pre-lubricated Celcon wheels.

    Design: Heavy duty aluminum track with 2 5/8" built in grooved fascia.

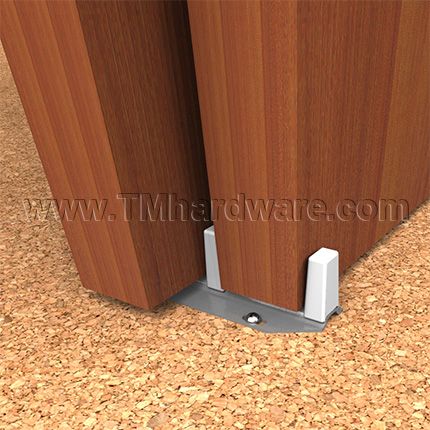

    Door Bottom Guide: Standard kit provided with high density polyethylene adjustable guide for doors 3/4" - 1 3/4".

    Hangers: 4 Wheel Quick Release Hangers with top mount plate and 7/8" diameter wheels.

    Height Clearance:

    • Minimum Clearance = Door Height + 2 1/4"
    • Maximum Clearance = Door Height + 2 1/2"

    Width Clearance: 2 Door Bypass - 2 times door width minus 1"

    Installation: Simple to install, All mounting hardware included

    Additional Customization Options: These products can be ordered as full Bypass Kits or as individual components. Additional pull and hanger options are available through our office. To order please contact us or call our office at 845-388-1300.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

      • SKU
        HG9674-48_136345
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      H9674
    • About This Product
      • Door Mount
        Surface Mount
      • Track Type
        Double Box Track
      • System Type
        Bypass
      • Included Parts
        Aluminum Track – 9820 (1 ea.)
        Quick Release Hangers – 9606 (2 ea.)
        Adjustable Door Guide – 9353 (1 ea.)
        #8 x ¾” Phillips Pan Head Screws (2 ea.)
        #8 x 5/8” Phillips Truss Head Screws (16 ea.)
        #8 x 1 1/2” Phillips Pan Head Screws (3 ea.)
        #8 x 1” Phillips Pan Head Screws (16 ea.)
      • Material
        Aluminum
    • Dimensions
      • Door Panel Weight
        Up to 150 lbs
      • Door Thickness
        1 3/8" to 1 3/4" Thick
      • Length
        48" Bypass Track (2 x 24" Doors), 60" Bypass Track (2 x 30" Doors), 72" Bypass Track (2 x 72" Doors), 96" Bypass Track (2 x 96" Doors)
    • Special Features
      • Special Features
        Fascia
    • Compliance Details
      • Compliance Details
        ANSI/BHMA A156.14
      • ANSI Designation
        D8751, D8752
      • Warranty
        1 Year Limited Warranty

    Click to print Hager 9674 Bypass Set Product Specs.

    Product Specs:

    Hager 9673 Bypass Set Product Specs

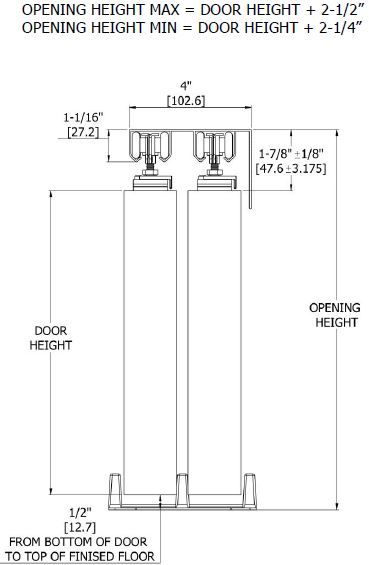

    Opening Dimensions:

    Hager 9673 Opening Dimensions
