Hager 3500 Series Door Knob, Grade 2 - Keyed, Passage, Privacy or Dummy Functions

Hager 3500 Series Door Knob, Grade 2 - Keyed, Passage, Privacy or Dummy Functions
Hager Companies

Hager 3500 Series Grade 2 Door Knob that Lock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. It is an economical alternative to Grade 1 where it is not required. This product is non-handed, offers superior dependability and is backed by a LIFETIME warranty! Many functions, finishes and options available.

PRICED PER SET



See tabs below for additional information
    • SKU
      HG3510_Apollo_US3
    • Market price:$73.77
      • save 40%
    • Starting price: Price: $44.26 per item


    Click here to view Hager 3500 Series from Hager Full Line Catalog.

    Heavy Duty, Commercial, Grade 2 - An economic alternatic to Grade 1, when Grade 1 is not required

    No Exposed Mounting Screws

    Handing: Non- Handed

    Knob Width: 2-1/4" (58mm)

    Rose Diameter: 3" (76mm)

    Exposed Trim: Wrought Brass or Stainless Steel

    Keys: Two brass keys provided

    Cylinders: Brass 6-pin, Keyed 5 Pin, Keyed Different, Schlage C Keyway

    Additional Cylinder Options:

    • Keyed 6-Pin
    • Small Format Interchangeable Core (SFIC), Uncombinated or Combinated

    Additional Keying Options:

    • MK-Master key - Master Keying Form must be filled out
    • CMK-Construction master key
    • GMK-Grand master key
    • SK-Customer specified keying
    • "0" bitted cylinder
    • "1" bitted cylinder

    Additional Keyways: Available through our office (see figure below)

    Door Thickness: 1-3/8" - 1-3/4"

    Backset:

    • 2-3/4"
    • 2-3/8" Optional, please list on order comments before completing purchase

    Latchbolt:

    • 1/2" throw-stainless steel
    • 1-1/8" x 2-1/4" faceplate
    • Deadlocking latchbolt-prevents manipulation when door is closed; keyed functions only.

    Strikes:

    • ASA 4-7/8" x 1-1/4" strike standard
    • Additional strikes available through our office

    Available Finishes: Polished Brass US3, Satin Stainless Steel US32D

    Option of split finish available: Lock can be purchased with one finish for the outside section of the lock and another for the inside.

    Certifications:

    • BHMA Certified ANSI A156.2, Series 4000, Grade 2
    • ANSI A250.13 Severe Windstorm Resistant Component
    • UL/cUL Listed for all functions up to 3 hours for ''A'' label single doors
    • UL10C Positive Pressure Rated
    • UL10B Neutral Pressure Rated

    Functions:

    • 10-Passage; 17-Dummy, 40-Privacy, 50-Office, 53-Entry, 70-Classroom, 80-Storeroom
    • See Hager Knob and Lever Functions for more information

    Standard Door Prep:

    • Cylinder hole: 2-1/8" diameter (cross bore)
    • Latch hole: 1" diameter (edge bore)

    Priced per piece

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Please see product specs tab for exact measurements. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    This product has a lifetime guarantee against defects in workmanship and materials.
    Click here to view our Full Warranty Policy.

    For a Grade 1 version, see our Hager 3400 Door Knob Series.

      • SKU
        HG3510_Apollo_US3
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      3500 Knob
    • Function
      Passage, Single Dummy, Privacy, Office, Entry, Classroom, Keyed Communicating, Storeroom
    • Exterior Finish
      Bright Brass - US3, Satin Stainless - US32D

    Click to Print Product Data Sheet

    Click to Print  Apollo Knob Product Dimensions

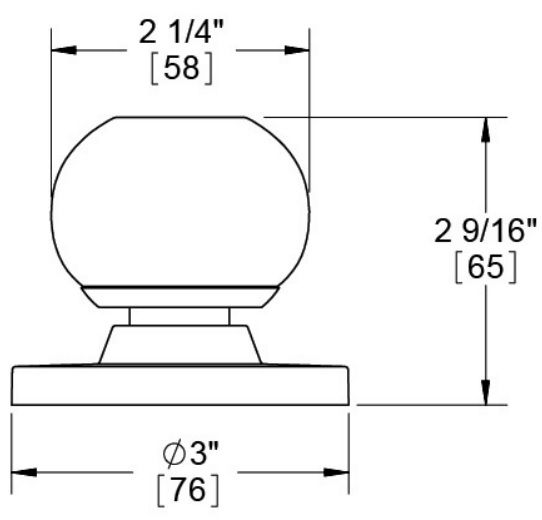

    Product Specs of Hager Apollo Knobr for 3400 Grade 1 Cylindrical Lockset

    Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    *All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Bright Brass-US3/605
    • Satin Stainless Steel-US32D/630

    *Locket complies with ANSI A156.2 Series 4000 Grade 2; ANSI A250.13 Severe Storm Resistant Component.

    *UL/cUL listed for all functions up to 3 hours for "A" label single doors.

    *UL10C/UBC7-2 (1997) Positive Pressure Rated

    *UL10B Neutral Pressure Rated
