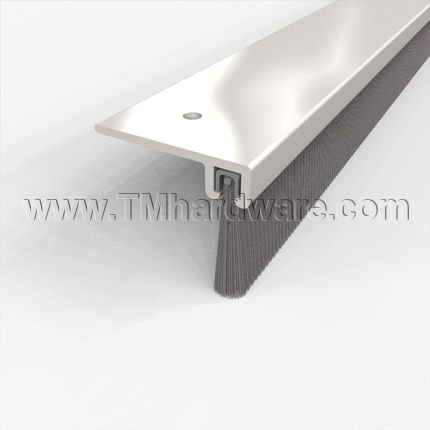

Pemko #90062 Door Sweep, Aluminum with .625" Nylon Brush
Similar item in stock sizes that can ship within 1 business day. see our Barzen #SBM10 Door Sweep, 90° Aluminum Retainer - QUICK SHIP
This fire and smoke rated aluminum door bottom sweep is fitted with a nylon brush which will seal the gap beneath the door, preventing dust, drafts, air, wind, insects and water infiltration. Available in options of different finishes and length is custom cut to size.
PRICED PER FOOT
This fire and smoke rated aluminum door bottom sweep is fitted with a nylon brush which will seal the gap beneath the door, preventing dust, drafts, air, wind, insects and water infiltration.
Material: Nylon is highly resistant to chemicals, mold and mildew, remains flexible in weathers down to -40°F and over 400°F, and is extremely long-lasting.
Seal: Provide a strong seal against air, wind, water, dust, drafts, insects, smoke and light from infiltrating
Brush: The bristles conform to the contours of all surfaces, with extremely low closing force, providing a superior seal to your doorway and remains flexible in extreme weather.
Installation instructions and screws provided.
Brush Inserts: Clear Anodized is supplied with a grey insert, Dark Bronze is supplied with a black insert. Other combinations can be requested. Contact Us or call us at 845-388-1300 to place a request.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year warranty against defects in material and workmanship.
Click here to view our full Warranty Policy.
For smaller gaps, see our Door Sweep with .375" Brush.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN90062
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range-40°F to 400°F
-
Door TypeWooden Door, Metal Door
-
Seal TypeNylon Brush Seal
-
MountingUnderside Mount
-

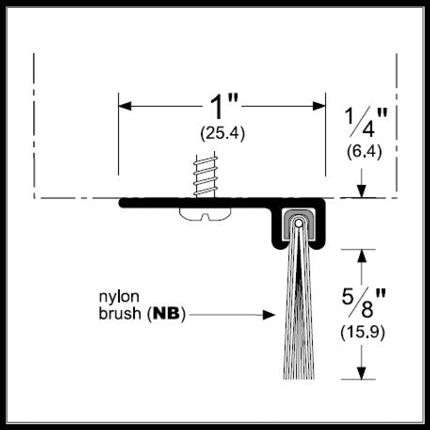

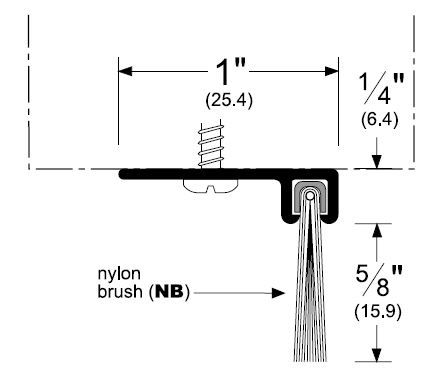

- Dimensions
-
Seal Height5/8" Height
-
Total Height7/8" Height
-
Additional DimensionsDoor seal is 1" thick
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
- Finishes
-

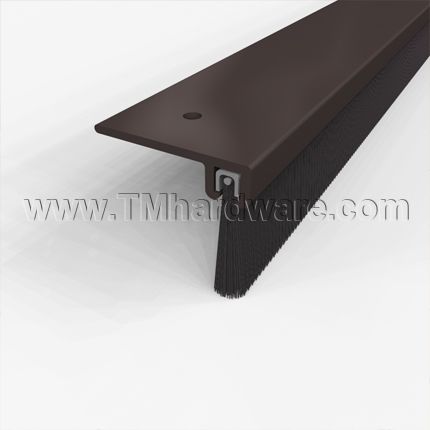

FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsFire Rated, Smoke Rated, BHMA Certified, UL Classified
-
ANSI DesignationR3A164, R3A414
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
Finishes Comply with the Following ANSI / BHMA Codes:
- Clear Anodized Aluminum - US28 / 628
- Dark Bronze Anodized Aluminum - US10B / 710
