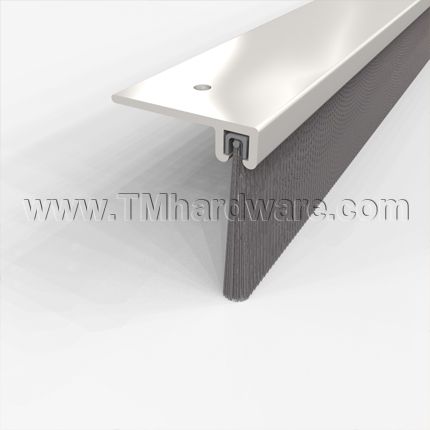

Pemko #90100 Door Sweep, Aluminum with 1" Nylon Brush
This aluminum door bottom sweep is fitted with a nylon brush which will seal the gap beneath the door, preventing dust, drafts, air, wind, insects, smoke and water infiltration. Dimensions are designed especially for the hollow channel at the bottom of Hollow Metal Doors. Available in choices of different finishes and length is custom cut to size.
PRICED PER FOOT
This door sweep, fitted with a 1" nylon brush, is sure to provide a strong seal against dust, drafts, water, insects, smoke and light from infiltrating. Nylon is highly resistant to chemicals, mold and mildew, remains flexible in weathers down to -40°F and over 400°F, and is extremely long-lasting. The bristles conform to the contours of all surfaces, with extremely low closing force, providing a superior seal to your doorway.

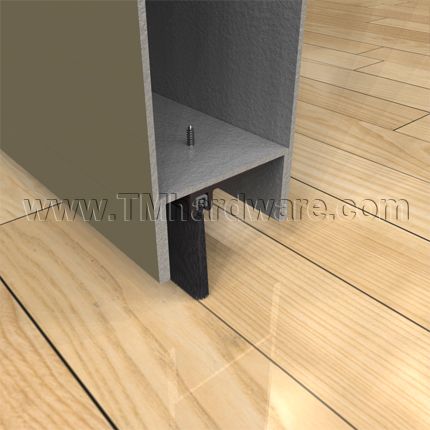

This door sweep has a sleek aluminum casing and will fill gaps of 1.25". Its aluminum casing is applied to the bottom of the door which eliminates exposed casing and mounting screws for an aesthetically appealing look. The casing is punched with slotted holes allowing for easy adjustment once installed. This door sweep works best with a hollow metal door with an inverted channel, and can additionally be used on wooden doors.

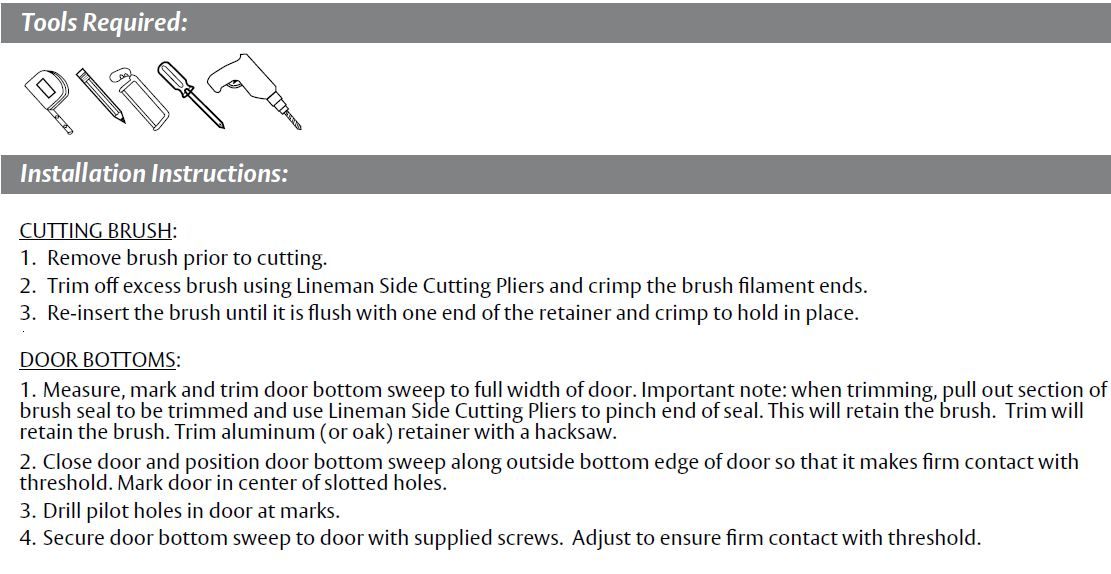

Installation instructions and screws provided. Screws are colored to coordinate with color of casing.
Stock Sizes - 36" and 60" Lengths are available
Brush Inserts: Clear Anodized is supplied with a grey insert, Dark Bronze is supplied with a black insert. Other combinations can be requested. Contact Us or call us at 845-388-1300 to place a request.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
For smaller gaps, see our Door Sweep with .375" Brush.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN90100
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range-40°F to 400°F
-
Door TypeWooden Door, Metal Door
-
Seal TypeNylon Brush Seal
-
MountingFully Mortised, Underside Mount
-

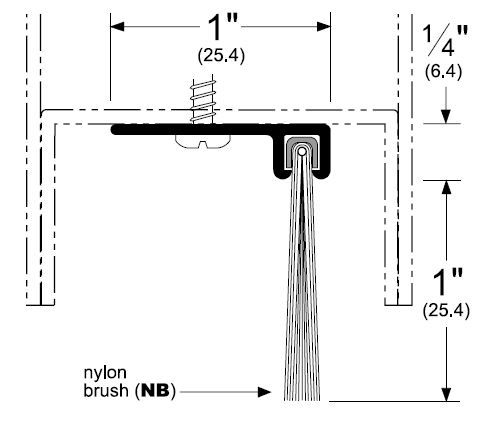

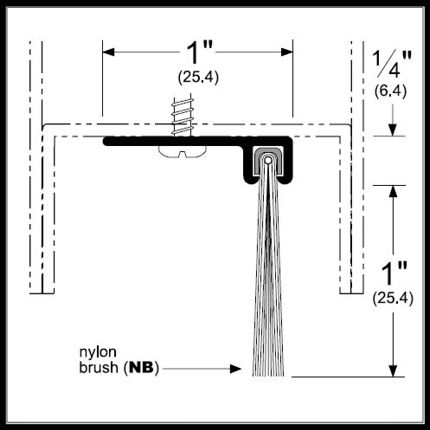

- Dimensions
-
Seal Height1" Height
-
Total Height1-1/4" Height
-
Additional DimensionsDoor seal is 1" thick
-
LengthCustom Cut to Size, 36" Length
-
- Installation
-
Drill HolesDrill holes are provided
-
- Finishes
-

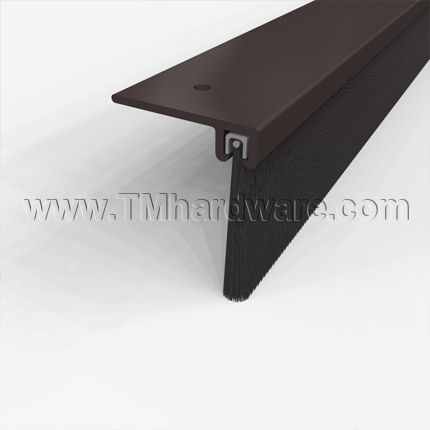

FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsFire Rated, Smoke Rated, UL Classified
-
ANSI DesignationR3A414
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
Finishes Comply with the Following ANSI / BHMA Codes:
- Clear Anodized Aluminum - US28 / 628
- Dark Bronze Anodized Aluminum - US10B / 710

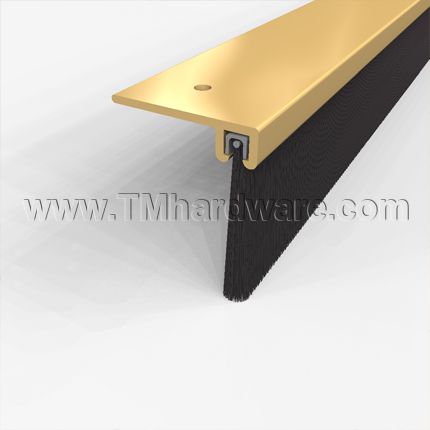

- Gold Anodized Aluminum - US4 / 688
