Pemko #90137NB Door Sweep, Mortised Aluminum with 1.375" Nylon Brush

Pemko #90137NB Door Sweep, Mortised Aluminum with 1.375" Nylon Brush
Product Spec of Brush Door Sweep 90137 Clear Anodized Aluminum Dark Bronze Anodized Gold Anodized

This fire and smoke rated aluminum door bottom sweep is fitted with a nylon brush which will seal the gap beneath the door, preventing dust, drafts, air, wind, insects and water infiltration. The casing is fully mortised and can be applied to the cavity under a hollow metal door or to a wooden door. Available in three finishes and is custom cut to size.

PRICED PER FOOT

Market price: $6.60
save 20%
Price: $5.28
Finish
Size (Inches)
Qty
Save to wishlist
Made in USA
SKU P90137CNB
Shipping See Shipping Tab Below
Description

This door sweep, fitted with a 1.375" nylon brush, is sure to provide a strong seal against dust, drafts, water, insects, smoke and light from infiltrating. Nylon is highly resistant to chemicals, mold and mildew, remains flexible in weathers down to -40oF and over 400oF, and is extremely long-lasting. The bristles easily conform to the contours of all surfaces, and will operate with extremely low closing force.

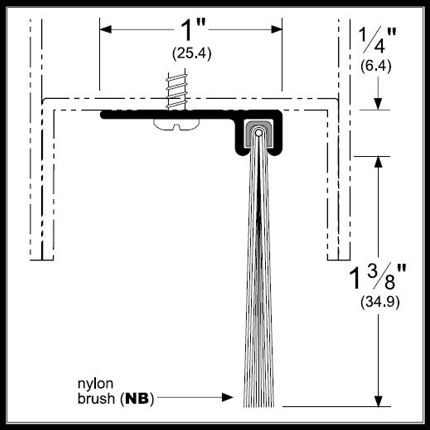

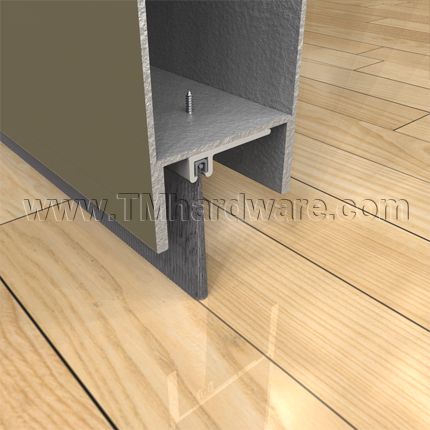

This door sweep has a sleek aluminum casing and will fill gaps of 1.625". Its aluminum casing is applied to the cavity under hollow metal doors, which eliminates exposed casing and mounting screws for an aesthetic appeal. The casing is punched with slotted holes allowing for easy adjustment once installed. This door sweep works well with both hollow metal and wooden doors, and is great for both home and commercial use. It is fire and smoke rated and is available in three finishes. Length is custom cut to size.

  • Fire and smoke rated
  • Prevents air, wind and water infiltration
  • 1.375" nylon brush which seals gaps of 1.625"
  • Bristles conforms well to surface irregularities
  • Remains flexible in  extreme weather
  • Compatible with wood or hollow metal doors
  • Custom cut to size

Installation instructions and screws provided. Screws are colored to coordinate with casing.

Brush Inserts: Clear Anodized is supplied with a grey insert, Dark Bronze Anodized and Gold Anodized is supplied with a black insert. Other combinations can be requested. Contact Us or call us at 845-388-1300 to place a request.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

For smaller gaps, see our Door Sweep with .375" Brush.

Product Specs

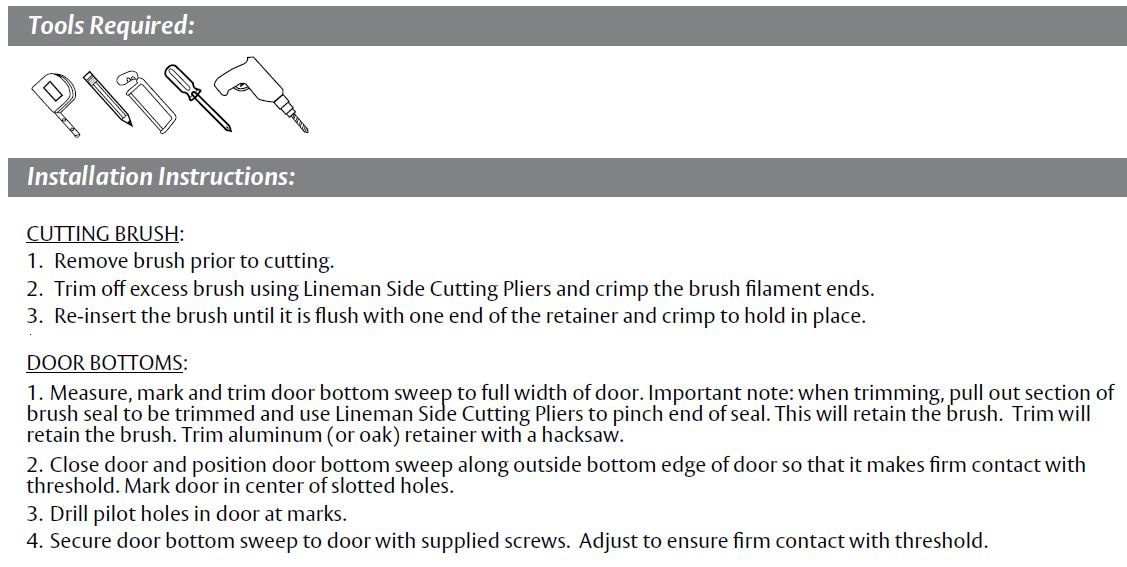

Installation
Compliance Details

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
