Hager 3500 Series Grade 2 Door Handle - Keyed, Privacy, Passage or Dummy Function

Hager 3500 Series Grade 2 Lock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. It is an economical alternative to Grade 1 where it is not required. This product is non-handed, offers superior dependability and is backed by a LIFETIME warranty! Many functions, finishes and options available. See below for details and pricing.

PRICED PER SET



See tabs below for additional information
    • SKU
      HG3517_Archer_US3
    • Market price:$86.69
      • save 40%
    • Starting price: Price: $52.01 per item


    ADA compliant lever designs, all non-handed and easily field reversible.

    Inside and outside rose liners contain independent high strength torsion springs that allow the lever to move bi-directionally without lever sag.

    3/4" diameter stainless steel bolt with 1/2" throw.

    Fixed conventional or small format interchangeable housing cylinder.

    All keyed funtions include our clutching feature that allows the lever to freely rotate up or down while remaining locked.

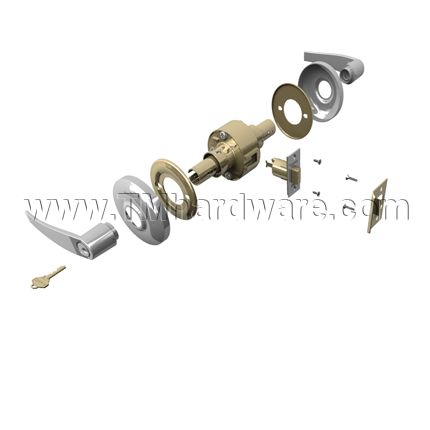

    Lock Is Comprised of:

    • Lever of your choice
    • Cylinder of your choice in exterior and interior finish of your choice
    • Backset of 2-3/4"
    • Two operating keys-keyed different
    • Schlage C keyway
    • Drilled 6-pin, keyed 5-pin cylinder
    • Latchbolt
    • Square corner strike with dustbox
    • Door thickness of 1-3/4"

    Please note that these are the standard options available. For all other orders, call us at 845-388-1300.

    Levers:  Click on an image to view its product specs.

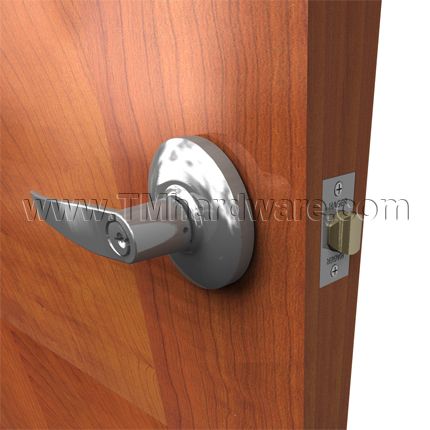

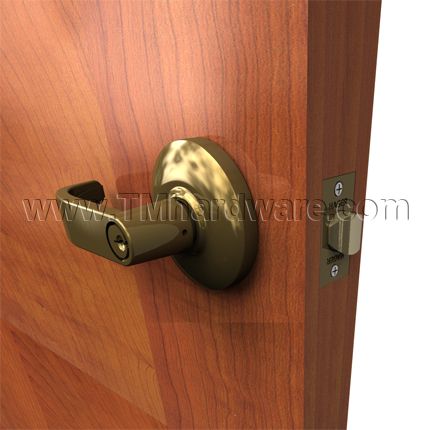

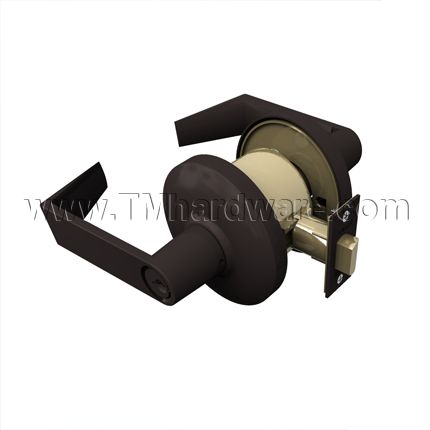

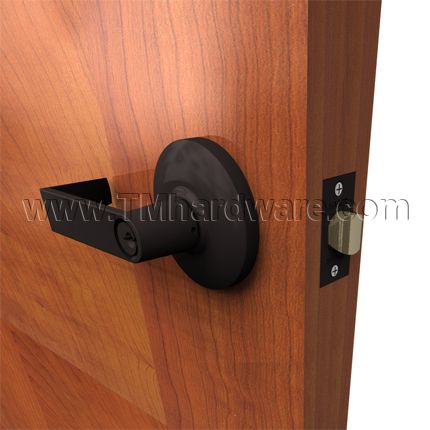

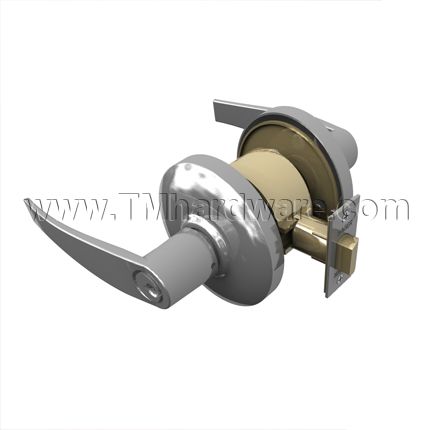

    Archer Lever August Lever Withnell Lever

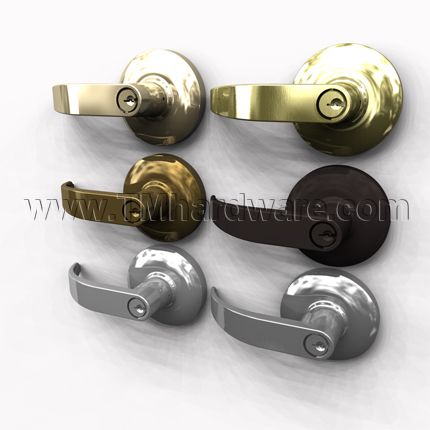

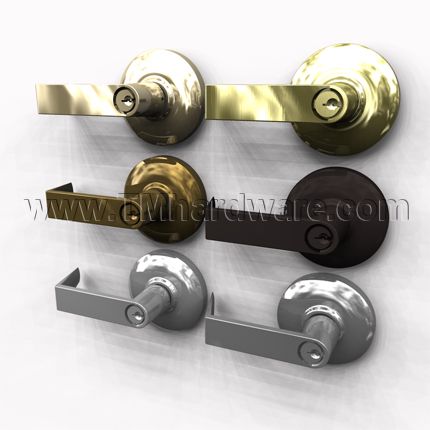

    Available Finishes: Bright Brass; Satin Brass; Satin Bronze; Antique Bronze Oiled; Bright Chromium Plated; Satin Chromium Plated(Finishes comply with BHMA codes. See Product Data Tab.)

    Option of split finish available: Lock can be purchased with one finish for the outside section of the lock and another for the inside.
     If the interior finish is the same as the exterior, select "Same as Exterior Finish". Otherwise, select the finish of your choice.

    Functions: Non-Keyed Functions

    • 3510-Passage: Latchbolt operated by lever from either side, at all times.
    • 3517-Dummy: Pull 1 side, no mechanical operation.

    • 3525-Exit: Blank plate on the outside. Inside lever always unlocked.

    • 3527-BTB Dummy: Back to back dummy has two pulls, one on either side of door. No mechanical operation.
    • 3540-Privacy: Latchbolt operated by lever from either side. Outside lever is locked by push-button and unlocked by emergency release from outside, operating inside lever or closing the door.


                        Keyed Functions-include our clutching feature that allows the lever to freely rotate up or down while remaining locked.

    • 3550-Office: Push-button locking. Push-button locks outside lever until unlocked with key or by rotating the inside lever.

    • 3553-Entry:
      • Deadlocking latchbolt operated by lever on either side, except when the turn button locks the outside lever.
      • Pushing the turn button "in" locks the outside lever, requiring use of a key from the outside to unlock. (Lever is freewheeling in locked position.) Turning the inside lever unlocks the outside lever.
      • Pushing "in" and turning the button locks outside lever, requiring key to unlock from the outside. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.
      • Inside lever is always free.

    • 3570-Classroom: Deadlocking latchbolt operated by lever from either side except when outside lever is locked from the ouside by a key. When outside lever is locked, latchbolt is operated by inside lever.

    • 3573-Corridor:
      • Deadlocking latchbolt operated by lever from either side except when outside lever is locked by key in outside lever or by push button or other locking device on the inside.
      • Key in outside lever locks or unlocks outside lever.
      • Operating inside lever releases push button or other locking device placed in locked position.
      • Closing the door releases putsh button or other inside locking device.
      • Inside lever always operates the latchbolt.

    • 3579-Keyed Communicating: Deadlocking latchbolt operated by inside lever except when locked by key. Non-removable blan

    • 3480-Storeroom:
      • Deadlocking latchbolt operated by key in outside lever, or by operating inside lever.
      • Outside lever is always locked.
      • Inside lever is always unlocked.

    Standard Door Prep:

    • Cylinder hole: 2-1/8" diameter (cross bore)
    • Latch hole: 1" diameter (edge bore)

    Exposed Trim:

    • Levers: Cast zinc
    • Rose: Wrought brass or stainless steel

    Rose Diameter: 3-11/32" diameter

    Lock Chassis:

    • Heavy guage steel, zinc dichromated for corrosion resistance
    • Free wheeling
    • Removable thrubolts. Note: Failure to install thrubolts and removable screw posts voids BHMA certification, UL ratings and warranty.

    Keys: Two operating keys, which are keyed differently, supplied per lock.

    Keying Options: Available for order through our office only. Please call us at 845-388-1300.

    • Keyed alike
    • MK-Master key
    • CMK-Construction master key
    • GMK-Grand master key
    • SK-Customer specified keying
    • "0" bitted cylinder
    • "1" bitted cylinder

    Note: For any master key options, this Master Keying Form must be filled out and faxed to us at 845-367-4657 or emailed to sales@tmhardware.com.

    Keyways: Standard keyway is Schlage C.

    Here are more keyway options available for order through our office only, at 845-388-1300.



    Cylinder Options:

    • Conventional cylinder
      • Brass, Drilled 6-pin, keyed 5-pin. Standard.
      • Brass, Drilled 6-pin, keyed 6-pin. Optional. Available through our office only, at 845-388-1300.
    • Small Format Interchangeable Core Housing Option: The inner core, containing the keyway, is removable and changeable for security purposes. Say, a department store fires its manager. All the cores could be removed and changed, with new keys distributed to all its employees. This way, there is no worry that the previous manager has access to the offices. As an aside, the cores can than be sent to a locksmith for rekeying so that they could be used again.
      Note: Cores are not included with this option. To order Small Format Interchangeable Housing or Cores (SFIC) call us at 845-388-1300.

    Door Thickness: 1-3/8"-2" Thick.

    Backset:

    • 2-3/4". Standard.
    • 2-3/8". Optional. Available through our office only, at 845-388-1300.
    • 3-3/4". Optional. Available through our office only, at 845-388-1300.
    • 5"Optional. Available through our office only, at 845-388-1300.

    Latchbolt:

    • 1/2" throw-stainless steel
    • 1-1/8" x 2-1/4" square corner faceplate for 2-3/4"  backset. Standard.
    • 1" x 2-1/4" faceplate for 2-3/8" backset. Available through our office only, at 845-388-1300.
    • Deadlocking latchbolt-prevents manipulation when door is closed; keyed functions only.
    • Square corner faceplate. Standard.
    • Round corner faceplate. Optional. Available through our office only, at 845-388-1300.

    Strikes: 3935 ASA 1-1/4" x 4-7/8" strike.

    Options available through our office only: Please call 845-388-1300 to order.

    • Leadlined levers
    • Tactile warning on levers only
    • Additional latchbolts and strikes

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Please see product specs tab for exact measurements. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    This product has a lifetime guarantee against defects in workmanship and materials.

    Click here to view our Full Warranty Policy.

    Click here to view all our Hager 3400 Grade 1 Lock Series.

      • SKU
        HG3517_Archer_US3
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      3500 Levers
    • Lever Type
      Archer Lever, August Lever, Withnell Lever
    • Function
      Passage, Single Dummy, Exit, Double Dummy, Privacy, Office, Entry, Classroom, Corridor, Keyed Communicating, Storeroom
    • Finish
      Bright Brass - US3, Satin Brass - US4, Antique Bronze Oiled - US10B, Bright Chromium Plated - US26, Satin Chromium Plated - US26D

    Click to Print Archer Lever Product Specs

    Click to Print August Lever Product Specs

    Click to Print Withnell Lever Product Specs

    Click to Print Lever Template

    Please note that all other necessary templates will be included in your order.

    3500 series lever lock template

    Template is not drawn to scale. Accurately scaled template will be supplied with your order.

    *All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Bright Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Antique Bronze Oiled-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Satin Chromium Plated-US26D/626

    *Locket complies with ANSI A156.2 Series 4000 Grade 1; ANSI A250.13 Severe Storm Resistant Component.

    *UL/cUL listed for all functions up to 3 hours for "A" label single doors.

    *UL10C/UBC7-2 (1997) Positive Pressure Rated

    *UL10B Neutral Pressure Rated

    *ADA Compliant ANSI A117.1 Accessibility Code
