Hager 790-903 Continuous Hinge, Half Surface Leaf Stainless Steel
Hager 790-903 is a Heavy-Duty, Half-Surface Stainless Steel Continuous Barrel Hinge which is mortised to the frame rabbet and surface of the door. Designed for doors 1 3/4" thick and up to 600 pounds. Compatible with doors of any material and is available in a choice of lengths and finishes.
PRICED PER PIECE - See full product details and specs in the tabs below
Hager 790-903 Continuous Barrel Type, Stainless Steel Half-Surface Leaf Hinge with Security Molding for 1 3/4" doors by Hager companies.
- Available in five sizes: (chart) For 119" Length, please contact us or call 845-388-1200 as Freight Shipping Charges may apply.
- Security and Privacy: Eliminates the gap between the frame and door so doors cannot be pried open, offers privacy on hospital and toilet partitions.
- Finish: Stainless steel continuous hinges are brushed to a satin finish (US32D). For custom color painted or powder coated finishes please contact our office at 845-388-1200 or contact us (Color samples are required for matching.)
- Materials: Constructed from 14 Gauge Type 304 Stainless Steel with lubricated nylon 6/6 bearings between each knuckle and stainless steel pin. 1/4" diameter Stainless Steel Pin. Provided with security molding.
- Features: Heavy-duty construction to support doors up to 600 pounds. Energy saving, creates a seal from the top to bottom of the door to prevent air infiltration and permanent weather barrier.
- Design: Half surface leaf edge mount hinge for 1 3/4" thick doors. Provides 1/8" door inset (see Product Data Tab.)
- Fasteners: #10-24 X 5.8" S/S Dril-Kwik (R) (metal frame)
#1/4-20 X 3/4" 2C Dril-Kwik (R) (metal door)
#1/4 -14 x 1" 2C Type AB (wood door)
- Applications: May be used for all door types. Corrosion resistant for swimming pool buildings, sewage, water treatment plants and salt spray environment. Ideal for applications where doors and frames are subjected to severe abuse such as hospitals and institutions.
- Clearance: Minimum clearance between the hinge edge of the door and the frame is 1/8" plus standard lockside clearance.
- Reinforcement: No door or frame reinforcement necessary for loads up to 200 lbs. For heavier weight use 16 gauge channel.
- Fire-Rating: Up to 3 hour metal and 90 min. wood composite (with studs).
- Certification: ANSI A156.26 Grade 1 for 150 pound doors.
- Electric Modification: Power Transfer Preparation (EPT 2) and (EPT 10) are available through our office, for details and pricing please contact us or call us at 845-388-1300.
- Additional Options: Including security studs, specialty fasteners, hospital tip and customize hole patterns may be ordered, for details and pricing please contact us or call our office at 845-388-1300.
- Installation: Can be used with any standard frame without hinge preps. Installed either with or without reinforcements depending on door weight. Installation screws and security molding are provided (see Installation Tab.)
- Priced per piece

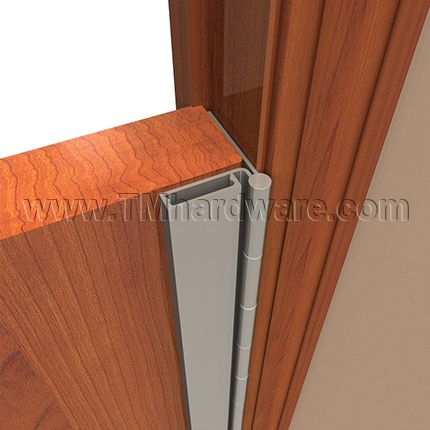

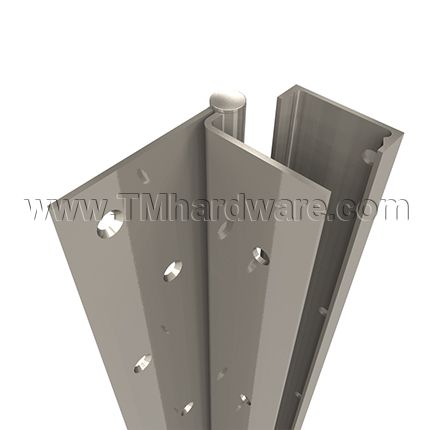

- Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
Click here to view our Hager 790-904 Continuous Hinge, Half Mortised Stainless Steel with Security Molding.
This product has a lifetime warranty against defects in workmanship and material.
Click here to view our Full Warranty Policy.
Printable Documents: |
Click to print Hager 790-903 Continuous Hinge 83" Template. Click to print Hager 790-903 Continuous Hinge 95" Template. Click to print Hager 790-903 Continuous Hinge 119" Template. Click to print Hager Continuous Hinge Electric Modification Information. |
Product Specs: |
Standard Locations for Electrical Modification: |
Click to print Installation Instructions for Hager 790-903 Stainless Steel Continuous Barrel Type Hinge. |
Hager Models 790-903 and 790-935 are Stainless Steel Continuous Half Surface Hinges for 1 3/4" thick doors. Clearance required between the hinge edge of the door and the frame rabbet is 1/8" minimum. Both models provide for a1/8" door inset. Model 790-935 provides 'swing clear' rotation. |
Hinge Length: |
All Hager Stainless Steel Continuous Hinges are supplied 7/8" to 1" shorter than the nominal door height to avoid threshold or carpet clearance problems. If the hinge must be trimmed shorter, first determine the correct hand of the door and orientation of the hinge. Remove the bottom pin cap and trim from the bottom end of the hinge only to achieve the desired length - do not cut from the top end. Undercut the pin 7/8" shorter for clearance and reinsert the bottom pin cap. |
General Fitting Procedure: |
|
Frame Preparation: |
1. With the hinge open, place the hinge frame leaf against the frame rabbet. Position the top of the hinge 1/8" below the header. Allow 1/16" minimum between the frame stop and edge of the hinge. 2. Mark and center punch the screw hole locations. Accurate location is important for proper hinge installation. 3. For metal frames 14 gauge or less, it is not necessary to pre-drill pilot holes if using the #10 self-drilling screws provided. For metal frames 12 gauge and over drill and tap all mounting holes for #10-24 threads prior to installing the screws. For wood frames, pre-drill pilot holes using a #25 bit. 4. Attach the hinge to the frame rabbet. For metal frames, use the #10 self-drilling screws provided (recommended driver speed 1,900-2,500 RPM). For wood frames, use optional #10 wood screws. |
Hanging the Door: |
1. Rotate the hinge leaf out of the way and set the door into the frame, using shims or wedges to adjust for the desired clearance on all sides. Allow 1/8" clearance between the top of the door and the frame header rabbet. Allow 1/16" minimum clearance between the edge of the door and the hinge frame leaf. 2. With the door held securely in place, rotate the hinge leaf into position on the face of the door: a. For metal doors, mark and center punch the hole locations on the door face. For metal doors 12 gauge or less, it is not necessary to pre-drill pilot holes if using the 1/4" self-drilling screws (recommended driver speed 1,900-2,500 RPM) Placing a Molding Clip under the head of a screw at five locations along the hinge - one at each end and the others spaced equally in between. b. For wood doors, mark and center punch the hole locations on the door face. Pre-drill pilot holes using a 7/32" bit. Install the #14 wood screws, placing a Molding Clip under the head of a screw at five locations along the hinge - one at each end and the others spaced equally in between. c. (Optional Sexbolt Mounting) - Locate a sexbolt at each end hole, with the others spaced equally in between (Note: There are more holes in the hinge than required. Use a minimum of 10 sexbolts.) Mark and center punch only the hole locations where a sexbolt will be inserted. Rotate the hinge leaf back out of the way. At each mark, drill a hole completely through the door using a 1/4" bit. From the 'push' face of the door, at each hole location, bore 1 1/4" deep using a 3/8" bit. Do not bore completely through the door. Rotate the hinge leaf into position on the face of the door. Insert the sexbolt posts from the 'push' side of the door and the screws from the 'pull' side. When inserting the screw, place a Molding Clip under the head of a screw at five locations along the hinge - one at each end and the others spaced equally in between. |
Install the Snap-On Molding: |
1. Position the molding so that the short leaf is closest to the hinge pin. Hook the short leg over the Molding Clips along the full length of the hinge. Starting at the top and working downward press the long leg of the Molding in place completely over the outside edge of the door leaf. If necessary, gently tap in place using a rubber mallet, taking care not to damage the Molding. |
