Hager 790-915 Continuous Hinge, Stainless Steel Concealed Leaf
Hager 790-915 is a Heavy-Duty, Concealed Leaf Stainless Steel Continuous Barrel Hinge which is mortised to the frame rabbet and edge of the door. Designed with a door edge protection lip for doors 1 3/4" thick and up to 600 pounds. Compatible with doors of any material and is available in a choice of lengths and finishes.
PRICED PER PIECE - See full product details and specs in the tabs below
Hager 790-915 Continuous Barrel Type, Stainless Steel Concealed Leaf Hinge with door edge protection lip for 1 3/4" doors by Hager companies.
- Available in five sizes: (chart) For 119" Length, please contact us or call 845-388-1200 as Freight Shipping Charges may apply.
- Security and Privacy: Eliminates the gap between the frame and door so doors cannot be pried open, offers privacy on hospital and toilet partitions.
- Finish: Stainless steel continuous hinges are brushed to a satin finish (US32D). For custom color painted or powder coated finishes please contact our office at 845-388-1200 or contact us (Color samples are required for matching.)
- Materials: Constructed from 14 Gauge Type 304 Stainless Steel with lubricated nylon 6/6 bearings between each knuckle and stainless steel pin. 1/4" diameter Stainless Steel Pin.
- Features: Heavy-duty construction to support doors up to 600 pounds. Energy saving, creates a seal from the top to bottom of the door to prevent air infiltration and permanent weather barrier.
- Design: Concealed leaf hinge for 1 3/4" thick doors with door edge protection lip (stop side only). Provides 1/16" door inset (see Product Data Tab.)
- Fasteners: #10-24 X 5/8" S/S Dril-Kwik (R) (metal frame/door)
#10-16 X 1-1/14" S/S Type AB (wood door)
- Applications: Not recommended for doors with a beveled edge on the hinge side. Corrosion resistant for swimming pool buildings, sewage, water treatment plants and salt spray environment. Ideal for applications where doors and frames are subjected to severe abuse such as hospitals and institutions.
- Clearance: Minimum clearance between the hinge edge of the door and the frame is 7/32" plus standard lockside clearance.
- Reinforcement: No door or frame reinforcement required up to 200 lbs. Heavier weight use 16-gauge channel.
- Fire-Rating: Up to 3 hour metal and 90 min. wood composite (with studs).
- Certification: ANSI A156.26 Grade 1 for 150 pound doors.
- Additional Options: Including security studs, specialty fasteners, hospital tip and customize hole patterns may be ordered, for details and pricing please contact us or call our office at 845-388-1300.
- Installation: Installed either with or without reinforcements depending on door weight. Installation screws are provided (see Installation Tab.)
- Priced per piece

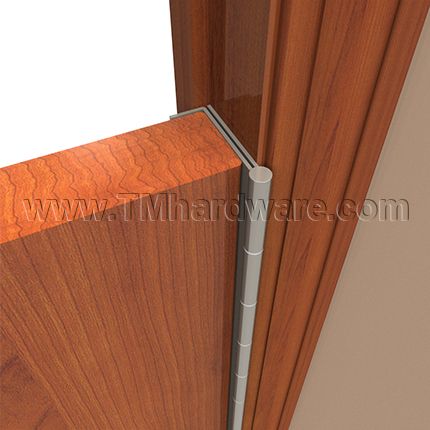

- Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
Click here to view our Hager 790-926 Continuous Hinge, Stainless Steel Concealed Leaf Swing Clear Action.
This product has a lifetime warranty against defects in workmanship and material.
Click here to view our Full Warranty Policy.
Printable Documents: |
Click to print Hager 790-915 Continuous Hinge 79" Template. Click to print Hager 790-915 Continuous Hinge 83" Template. Click to print Hager 790-915 Continuous Hinge 85" Template. Click to print Hager 790-915 Continuous Hinge 95" Template. Click to print Hager 790-915 Continuous Hinge 119" Template. |
Product Specs: |
![]() |
Standard Location for Electical Modification: |
Click to print Installation Instructions for Hager Models 790-900, 790-911 and 790-915. Click to print Hager 790-915 Installation Instructions for ETW/E1S. |
Hager Models 790-900, 790-911 and 790-915 are Stainless Steel Continuous Edge Mount Hinges for 1 3/4" thick doors. Clearance required between the hinge edge of the door and the frame rabbet is 7/32" minimum. Model 790-911 provides 'swing clear' rotation. Models 790-911 and 790-915 feature an integral protective corner guard and are not recommended for use on doors that have a beveled edge on the hinge side. |
Hinge Length: |
All Hager Stainless Steel Continuous Hinges are supplied 7/8" to 1" shorter than the nominal door height to avoid threshold or carpet clearance problems. If the hinge must be trimmed shorter, first determine the correct hand of the door and orientation of the hinge. Remove the bottom pin cap and trim from the bottom end of the hinge only to achieve the desired length- do not cut the top end. Undercut the pin 7/8" shorter for clearance and reinsert the bottom pin cap. |
General Fitting Procedure: |
|
Frame Preparation: |
1. With the hinge open, place the hinge frame leaf against the frame rabbet. Position the top of the hinge 1/8" below the header. Allow 1/16" minimum between the frame stop and the edge of the hinge. 2. Mark and center punch the screw hole locations. Accurate location is important for proper installation. 3. For metal frames 14 gauge or less, it is not necessary to pre-drill pilot holes if using the self-drilling screws provided 4. Do not attach the hinge to the frame at this time. |
Door Preparation: |
1. With the hinge open, place the hinge door leaf against the edge of the door. Position the top of the hinge flush with the top of the door. For model 790-900, position the edge of the hinge leaf flush with the 'push' face of the door. For Models 790-911 and 790-915, position the integral corner guard fully against the 'push' face of the door. 2. Mark and center punch the screw hole locations. Accurate location is important for proper hinge installation. 3. For metal frames 14 gauge or less, it is not necessary to pre-drill pilot holes if using the self-drilling screws provided. 4. Attach the hinge to the door. For metal doors, use the #10 self-drilling screws provided (recommended driver speed 1,900-2,500 RPM). For wood doors, use the #10 wood screws provided. |
Hanging the Door: |
1. Position the door (with hinge attached) at 90 degrees to the frame. Attach the hinge to the frame rabbet. For metal frames, use the #10 self-drilling screws provided (recommended driver speed 1,900-2,500 RPM). For wood frames, use optional #10 wood screws. 2. Make a gentle trial swing. Carefully check for proper swing and door clearance. |
Adjusting the Door: |
1. If lateral adjustment of the door is required due to excessive or uneven door/frame clearance, adjust by shimming where needed: a. For minor adjustments, an effective shimming material is 1 1/2" cloth duct tape. Apply the tape in stepped layers underneath the frame leaf where needed to build up to the desired thickness. b. To shift the entire door, a thin continuous aluminum strip may be used underneath the frame leaf (available in 1/16" and 1/8" thicknesses from our manufacturer. 2. Retighten all screws. Make a gentle trial swing. Carefully check for proper swing and door clearances. |
