Hager AB700, Concealed Anti-Friction Bearing, Steel, Heavy Weight, 3 Knuckle, Full Mortise Hinge, All Sizes

Hager AB700 Full Mortised, Three Knuckle, Concealed Anti-Friction Bearing, Architectural Hinge. Standard weight for use with medium weight doors or doors of medium frequency service. Available in many sizes and finishes.

PRICED PER PIECE - See full product details and specs in the tabs below


See tabs below for additional information
    • SKU
      HGAS700-3.5x3.5-USP
    • Market price:$40.84
      • save 50%
    • Starting price: Price: $20.42 per item


    Hager AB700 Full Mortised, Three Knuckle, Concealed Anti-Friction Bearing, Architectural Hinge. Standard weight for use with medium weight doors or doors of medium frequency service.

    Available in many sizes:

    Hinge SizeGauge of MetalHole CountScrew Size
      Inches  mm      Machine  Wood
      3-1/2" x 3-1/2"   89 x 89  0.199  6  1-2 x 10-24  1 x 9
      4" x 4"  102 x 102  0.129  8  1/2 x 12-24  1-1/4 x 12
      4 1/2" x 4"  114 x 102  0.134  8  1/2 x 12-24  1-1/4 x 12
      4 1/2" x 4 1/2"  114 x 114  0.134  8  1/2 x 12-24  1-1/4 x 12
      5" x 4"  127 x 102   0.145  8  1/2 x 12-24  1-1/4 x 12
      5" x 4-1/2"  127 x 114  0.145  8   1/2 x 12-24  1-1/4 x 12
      5" x 5"  127 x 127  0.145  8  1/2 x 12-24  1-1/4 x 12

    Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. The pin and plug are flush with the hinge body.

    Additional Options: - See options tab for more details:

    • Reverse Safety Stud Feature available. This feature is intended to keep the hinge locked in place from abuse of battering or destruction of the hinge and screws. It is primarily used in prisons and psychiatric areas. See Options Tab for pricing and more information.
    • Air Transfer Feature available. This feature is for doors required to transfer compressed air.
    • Concealed Electric Modifications available: Three types available: EMN, ETW, ETM. For more information see Options Tab to the right.

    Priced per piece

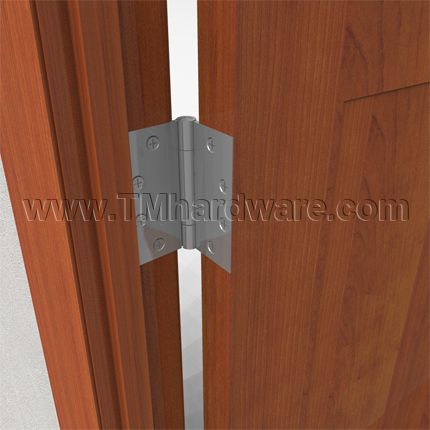

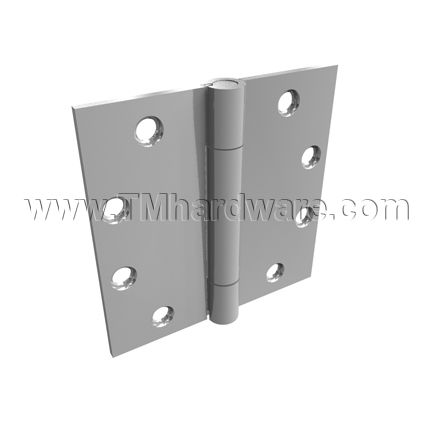

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Data Tab for exact measurements.

    This product has a lifetime guarantee against defects in workmanship and materials.
     Click here to view our Full Warranty Policy.

    Click here to view our Three Knuckle, Standard Weight, Concealed Anti-Friction Bearing Hinge- Hager AB800.

      • SKU
        HGAS700-3.5x3.5-USP
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      AB700
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Steel
      • Usage Level
        Heavy Duty
      • Throw
        Standard Throw
      • Bearing Type
        Concealed Anti-Friction
      • Knuckles
        3 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        See Dimensions Chart
    • Dimensions
      • Hinge Size
        3-1/2" x 3-1/2", 4" x 4", 4-1/2" x 4", 4-1/2" x 4-1/2", 5" x 4", 5" x 4-1/2", 5" x 5"
      • Hinge Thickness
        See Dimensions Chart
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Installation Screws Provided Accordingly:
        4-1/2" x 4-1/2": All machine and all wood screws provided.
        4-1/2" x 4": All machine and all wood screws provided.
        3-1/2" Hinge: All wood screws and half metal screws
        4" Hinge: All wood screws and half metal screws
        5" Hinge: All metal screws and half wood screws
        Additional screw packs can be provided if listed in order comments before completing purchase.
    • Additional Options - Purchase Through Our Office
      • Electric Modifications
        Yes
    • Finishes
      • Finish
        Luma Sheen Aluminum, Painted, Prime Coat (USP), Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Satin Chrome (US26D)
    • Compliance Details
      • Compliance Details
        NFPA80
      • ANSI Designation
        A8112, A156.18
      • Warranty
        Lifetime Limited Warranty

    Click to Print 3-1/2" Hinge Template

    Click to Print 4" Hinge Template

    Click to Print 4-1/2" Hinge Template

    Click to Print 4-1/2" Reverse Safety Stud Hinge Template

    Click to Print 5" Hinge Template

    Click to Print 5" Reverse Safety Stud Hinge Template

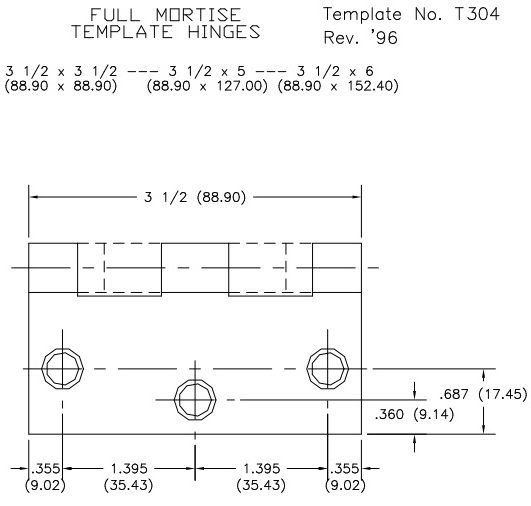

    3-1/2" Hinge Template. See links above for additional templates.



    Hinge complies with ANSI A8112.


    aa

    Reverse Safety Stud

    The Reverse Safety Stud (RSS) 7/16" projection is a feature that has a stud projecting from both leaves into the reinforcing plate of both the frame and the door. It is intended to keep the hinge locked in place from abuse of battering or trying to shear the hinges and screws. This feature is primarily used in prisons and psychiatric areas.

    Concealed Air Transfer

    The Air Transfer modification is primarily for doors that require the transfer of compressed air. Hinges with ATH modification available use 5-32" plastic air tubing, have quick-connect fittings and are capable of transfering 80-100 PSI through the air tubing.
    • Hinge pins are not field removable
    • NRP and safety stud are not available
    Note: Air Transfer Hinges have a 1 year guarantee against defects in workmanship and defects.

    Electric Modifications

    EMN-Electric Monitor Type:

    Electric Monitor hinge has a miniature snap action incorporated into the frame leaf. It utilizes a switch to send a signal when the door is opened. This hinge is for electric monitor only.

    • 28 gauge wire
    • Hinge pins are not removable
    • Monitoring capability only
    • Concealed subminiature snap action, SPDT switch
    • Adjustment feature for a wide range of switch sensitivity
    • Preset switching circuit
    • For open loop secure, closed loop secure or single pole double throw (SPDT)

    Switch Maximum Electrical rating: 30 VDC @ .500 amps

    ETW-Electric Thru-Wire Type:

    Concealed electric thru-wire hinges are a means to transfer electrical power from the power source, (through the use of 4 continuous electric conductors) through the frame and into the door and finally to the electrified door hardware, such as power lock sets, exit devices and other door monitoring devices. This hinge is for electric thru-wire only.

    • 28 guage wire
    • Hinge pins are not removable
    • Low voltage electric current transfer capability only
    • 4, 6, 8, 10, 12 continuous electrical conductors

    Electrical rating:

    Wire Maximum Electrical Rating
    Volts   Amperes

    48

    VDC

    3.5 amps     CONTINUOUS

    16.0 amps   PULSE




    ETM-Electric Tru-Wire and Monitor Type:

    These hinges can monitor door position while at the same time transfering power to electrified door hardware such as, power lock sets, exit devices and other door monitoring devices. It does this by combining the 4 continuous electric conductors and the miniature snap action switch to provide continuous circuit and monitoring capabilities.

    • 28 gauge wire
    • Hinge pins are not removable
    • Both continuous electric conductors and monitoring capability
    • Concealed monitor switch and 4, 6, 8 or 10 continuous conductors
    • Adjustment feature for a wide range of switch sensitivity
    • For open loop secure, closed loop secure or single pole double throw (SPDT)

    Electrical rating:

    Contact Maximum Electrical Rating
    Volts      Amperes

    48

    VDC

    3.5 amps     CONTINUOUS

    16.0 amps   PULSE

    Switch Maximum Electrical Rating
    30 VDC @ .500 amps


    Important Points to know about Electric Hinges:

    • All of the Hager Companies electric hinges have been tested through UL in order that our products can be used on fire rated or labeled openings.
    • The electric hinge should be the center hinge and used only for low voltage power transfer (48 volts and under) because of safety.
    • The use of a mortar or jamb box is recommended together with electrically modifies hinges in order to protect the wire termination on the inside of the frame. If the box is not used and wires are damaged, warranty of the product will be void.
    • Electric Hinges have a 1 year guarantee against defects in workmanship and materials.

    Printable Templates:

    • Click to Print 4-1/2" EMN Hinge Template
    • Click to Print 5" EMN Hinge Template
    • Click to Print 4-1/2" ETM Hinge Template
    • Click to Print 5" ETM Hinge Template
    • Click to Print 4-1/2" ETW Hinge Template
    • Click to Print 5" ETW Hinge Template
    • Click to Print Electric Modification Installation Instructions
