Hager BB1168, 4 Ball Bearing, Steel, Extra Heavy Weight, 5 Knuckle, Full Mortised Hinge, All Sizes

Hager BB1168 Full Mortised, Five Knuckle, Heavy Duty Architectural Hinge with Four Ball Bearings. Heavy weight for use with heavy doors or doors requiring high frequency service. Hinge made of steel with Steel Pin. Available in many sizes and finishes.

PRICED PER PIECE - See full product details and specs in the tabs below


See tabs below for additional information
    • SKU
      HGBB1168-4.5x4-US26D
    • Market price:$63.40
      • save 50%
    • Starting price: Price: $31.70 per item


    Hager BB1168 Full Mortised, Five Knuckle, Heavy Duty Architectural Hinge with Four Ball Bearings. Heavy weight for use with heavy doors or doors requiring high frequency service. Hinge made of steel with Steel Pin.

    Available Sizes:

    Hinge SizeGauge of MetalHole CountScrew Size
      Inches  mm      Machine  Wood
      4-1/2" x 4"  114 x 102  0.134   8  1/2 x 12-24  1-1/4 x 12
      4-1/2" x 4-1/2"  114 x 114  0.134  8  1/2 x 12-24  1-1/4 x 12
      5" x 4"  127 x 102  0.145  8  1/2 x 12-24  1-1/4 x 12
      5" x 4-1/2"  127 x 114  0.145  8  1/2 x 12-24  1-1/4 x 12
      5" x 5"  127 x 127  0.145  8  1/2 x 12-24  1-1/4 x 12
      6" x 4-1/2"  152 x 114  0.160  10  1/2 x 1/4-20  1-1/2 x 14
      6" x 5"  152 x 127  0.160  10  1/2 x 1/4-20  1-1/2 x 14
      6" x 6"  152 x 152  0.160  10  1/2 x 1/4-20  1-1/2 x 14
      8" x 6"  203 x 152  0.203  16  1/2 x 1/4-20  1-1/2 x 14
      8" x 8"  203 x 203  0.203  16  1/2 x 1/4-20  1-1/2 x 14

    Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

    Custom Finishes. For details and pricing please contact us or call us at 845-388-1300.

    Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable, which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. Contains button tip and plug.

    Additional Options - Can be purchased through our office:

    Reverse Safety Stud Feature available. This feature is intended to keep the hinge locked in place from abuse of battering or destruction of the hinge and screws. It is primarily used in prisons and psychiatric areas.

    Air Transfer Feature. This feature is for doors required to transfer compressed air.

    Concealed Electric Modifications available: 3 types available- EMN, ETW and ETM. See options tab for more details

    Unequal Leaves: Hinge sizes 4-1/2" x 4-1/2" and 5" x 5" are available with two different leaf sizes. Unequal leaf hinges are great if you have mounting areas of different surface sizes.

    Priced per piece.

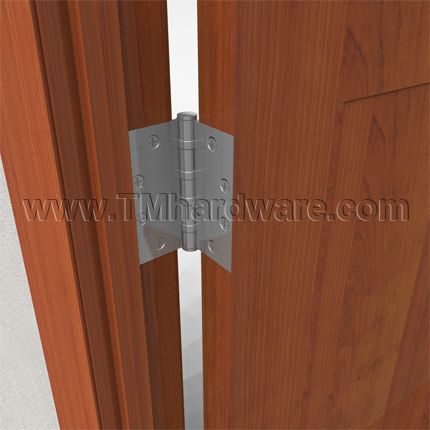

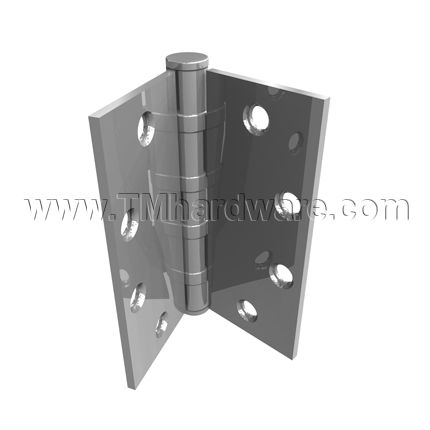

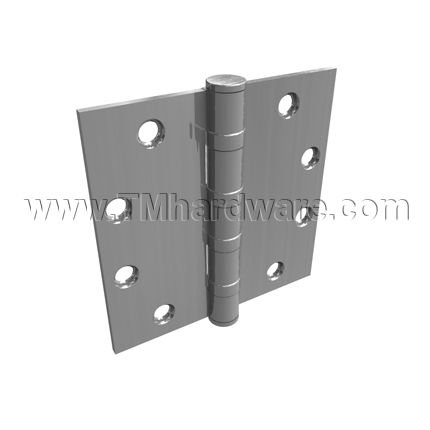

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Data Tab for exact measurements.

    This product has a lifetime guarantee against defects in workmanship and materials.
     Click to view our Full Warranty Policy.

    Click here to view our Hager WTBB1279 Five Knuckle, Ball Bearing, Steel Wide Throw Hager Hinge.

      • SKU
        HGBB1168-4.5x4-US26D
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      BB1168
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Steel
      • Usage Level
        Extra Heavy Duty
      • Throw
        Standard Throw
      • Bearing Type
        Ball Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        See Dimensions Chart
    • Dimensions
      • Hinge Size
        4-1/2" x 4", 4-1/2" x 4-1/2", 5" x 4", 5" x 4-1/2", 5" x 5", 6" x 4-1/2", 6" x 5", 6" x 6", 8" x 6", 8" x 8"
      • Hinge Thickness
        See Dimensions Chart
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Installation Screws Provided Accordingly:
        4-1/2" Hinge: All metal screws and half wood screws
        3-1/2" Hinge: All wood screws and half metal screws
        4" Hinge: All wood screws and half metal screws
        5" Hinge: All metal screws and half wood screws
        Additional screw packs can be provided if listed in order comments before completing purchase.
    • Additional Options - Purchase Through Our Office
      • Reverse Safety Stud Feature
        Yes
      • Air Transfer
        Yes
      • Electric Modifications
        Yes
    • Finishes
      • Finish
        Prime Coat (USP), Polished Brass (US3), Satin Bronze (US10), Antique Bronze (US10A), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D), Luma Sheen Aluminum, Painted
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A156.1, A8111
      • Warranty
        Lifetime Limited Warranty

    Click to Print 4-1/2" Hinge Template

    Click to Print 4-1/2" Reverse Safety Stud Hinge Template

    Click to Print 4-1/2" Air Transfer Hinge Template

    Click to Print 5" Hinge Template

    Click to Print 5" Reverse Safety Stud Hinge Template

    Click to Print 5" Air Transfer Hinge Template

    Click to Print 6" Hinge Template

    Click to Print 8"-Doors 1-3/4" Hinge Template

    Click to Print 8"-Doors 2-1/2" Hinge Template

    Click to Print Unequal Leaves Hinge Template

    Click to Print Windstorm Rated Components Chart

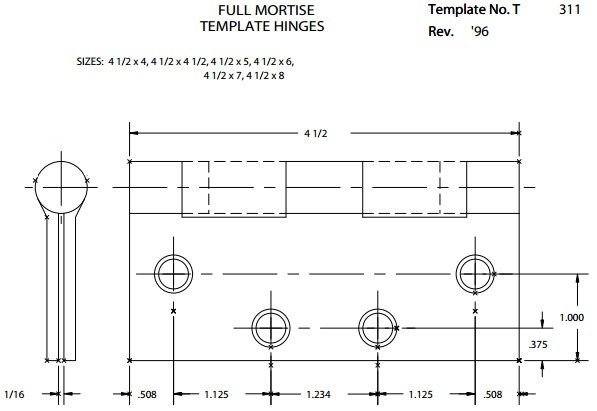

    4-1/2" Hinge Template. Select links above for additional templates.

    Hinge complies with ANSI A8111.




    aa

    Reverse Safety Stud

    The Reverse Safety Stud (RSS) 7/16" projection is a feature that has a stud projecting from both leaves into the reinforcing plate of both the frame and the door. It is intended to keep the hinge locked in place from abuse of battering or trying to shear the hinges and screws. This feature is primarily used in prisons and psychiatric areas.

    Air Transfer



    The Air Transfer modification is primarily for doors that require the transfer of compressed air. Hinges with ATH modification available use 5-32" plastic air tubing, have quick-connect fittings and are capable of transfering 80-100 PSI through the air tubing.

    Note: Air Transfer Hinges have a 1 year guarantee against defects in workmanship and materials.

    Electric Modifications

    EMN-Electric Monitor Type:

    Electric Monitor hinge has a miniature snap action incorporated into the frame leaf. It utilizes a switch to send a signal when the door is opened. This hinge is for electric monitor only.

    • 28 gauge wire
    • Hinge pins are not removable
    • Monitoring capability only
    • Concealed subminiature snap action, SPDT switch
    • Adjustment feature for a wide range of switch sensitivity
    • Preset switching circuit
    • For open loop secure, closed loop secure or single pole double throw (SPDT)

    Switch Maximum Electrical rating: 30 VDC @ .500 amps

    ETW-Electric Thru-Wire Type:

    Concealed electric thru-wire hinges are a means to transfer electrical power from the power source, (through the use of 4 continuous electric conductors) through the frame and into the door and finally to the electrified door hardware, such as power lock sets, exit devices and other door monitoring devices. This hinge is for electric thru-wire only.

    • 28 guage wire
    • Hinge pins are not removable
    • Low voltage electric current transfer capability only
    • 4, 6, 8, 10, 12 continuous electrical conductors

    Electrical rating:

    Wire Maximum Electrical Rating
    Volts    Amperes

    48

    VDC

    3.5 amps     CONTINUOUS

    16.0 amps   PULSE




    ETM-Electric Tru-Wire and Monitor Type:

    These hinges can monitor door position while at the same time transfering power to electrified door hardware such as, power lock sets, exit devices and other door monitoring devices. It does this by combining the 4 continuous electric conductors and the miniature snap action switch to provide continuous circuit and monitoring capabilities.

    • 28 gauge wire
    • Hinge pins are not removable
    • Both continuous electric conductors and monitoring capability
    • Concealed monitor switch and 4, 6, 8 or 10 continuous conductors
    • Adjustment feature for a wide range of switch sensitivity
    • For open loop secure, closed loop secure or single pole double throw (SPDT)

    Electrical rating:

    Contact Maximum Electrical Rating
    Volts       Amperes

    48

    VDC

    3.5 amps     CONTINUOUS

    16.0 amps   PULSE

    Switch Maximum Electrical Rating
    30 VDC @ .500 amps


    Important Points to know about Electric Hinges:

    • All of the Hager Companies electric hinges have been tested through UL in order that our products can be used on fire rated or labeled openings.
    • The electric hinge should be the center hinge and used only for low voltage power transfer (48 volts and under) because of safety.
    • The use of a mortar or jamb box is recommended together with electrically modifies hinges in order to protect the wire termination on the inside of the frame. If the box is not used and wires are damaged, warranty of the product will be void.
    • Electric Hinges have a 1 year guarantee against defects in workmanship and materials.

    Printable Templates:
