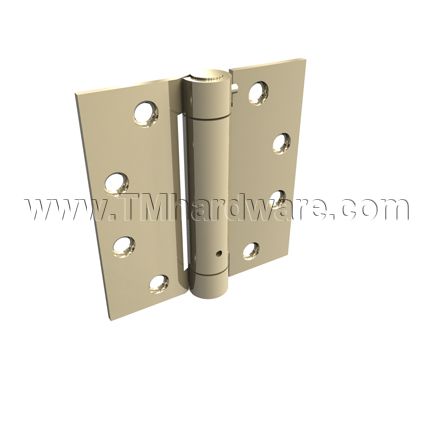

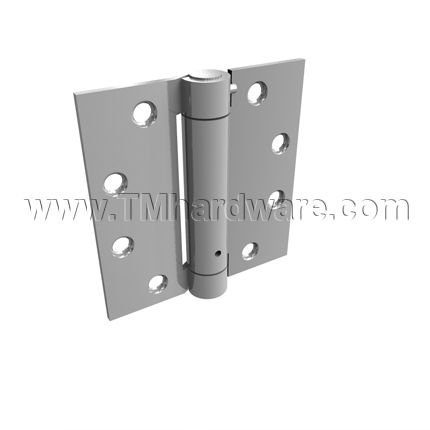

Hager EC1105, 4-1/2" x 4-1/2", Full Mortised ECCO Spring Hinge, Steel
Full Mortised Architectural, single acting spring hinge, by Hager, with three knuckles and square corner. Spring hinge for automatic closing of door. Steel with steel components. Hinge size is 4.5" x 4.5" and is available in many finishes.
PRICED PER ITEM
Sold per piece in quantities of 3.

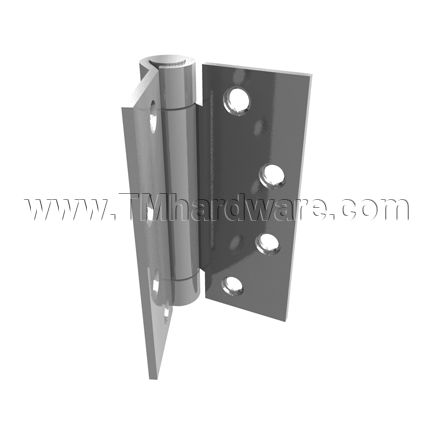

This commercial grade Architectural hinge is a full mortised spring hinge. It is square corner, single acting and for the use of automatic closing of doors. The hinge is fitted with one or more springs to close a door automatically. This hinge meets codes for hotels, motels, institutions and commercial buildings. For maximum versatility, use all spring hinges or a combination of spring and ball bearing hinges. Do not use plain bearing hinges.
Hinge Size: 4-1/2" x 4-1/2"
Hinge Size | Gauge of Metal | Hole Count | Screw Size | ||
Inches | mm | Machine | Wood | ||

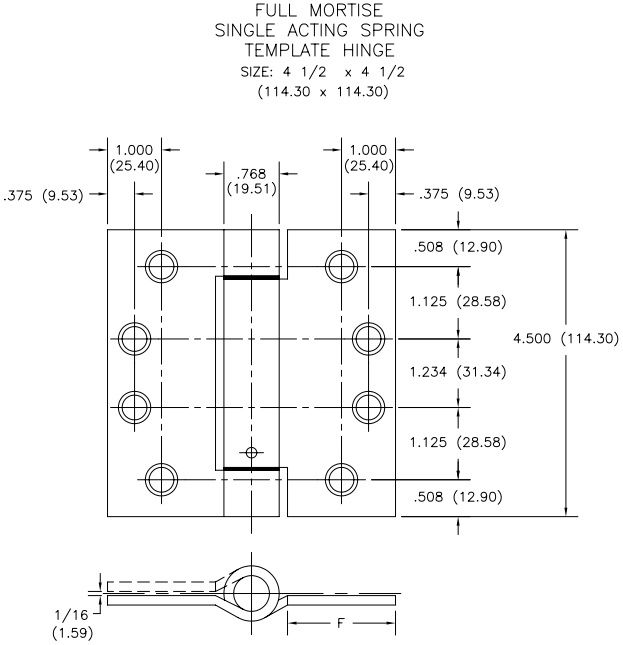

4-1/2" x 4-1/2" | 114 x 114 | 0.134 | 8 | 1/2 x 12-24 | 1-1/4 x 12 |
Door Size and Weight recommendations:
Recommended Max Door Wt (lbs) | # of Spring Hinges | # of Ball Bearing Hinges |
For use on 1-3/4" (45mm) door | ||
70 | 1 | 2 |
115 | 2 | 1 |
150 | 3 | -- |
Adjustable Tension: You could set the tension easily, as you need, using a tension bar and set pin (provided). See Installation Instructions for more information. Full spring tension may not be required.
Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames or weather-stripping on doors may require additional spring hinges.
Usage on Fire Rated Doors: NFPA 80 has restricted the use of architectural grade spring hinges to fire rated doors of a maximum size of 3'0" x 7'0". Hager spring hinges have been tested and labeled for up to a 4'0" x 8'0" door when a minimum of three springs are used.
Accessories Included: Tension adjustment bar; set pin; installation screws.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in workmanship and materials.
Click here to view our ECCO Ball Bearing Hinge of Heavy Weight Made of Brass or Stainless Steel.
To view all hinges in this category, see How to Choose an ECCO Hinge.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNEC1105
- Product Design
-
Hinge CategorySpring Full Mortised Hinge
-
Base MaterialSteel
-
Usage LevelStandard Duty
-
ThrowStandard Throw
-
Bearing TypeSingle Acting Spring
-
Knuckles3 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes8 Holes
-
- Dimensions
-
Hinge Size4-1/2" x 4-1/2"
-
Hinge Thickness.134" Thick
-
- Installation
-
Door TypeMetal Door, Wooden Door
-
Installation ScrewsInstallation Screws provided.
-
- Finishes
-
FinishPrime Coat (USP), Polished Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationK81071F, A156.18
-
Warranty3 Year Limited Warranty
-
