Hager IHTAB750 Architectural, Institutional Prison Hinge, Steel

Hager IHTAB750 Architectural, Institutional Prison Hinge, Steel
Hager Companies

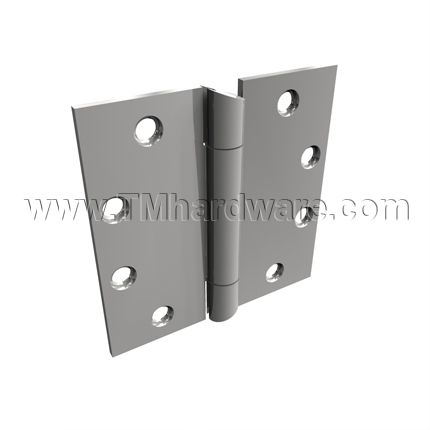

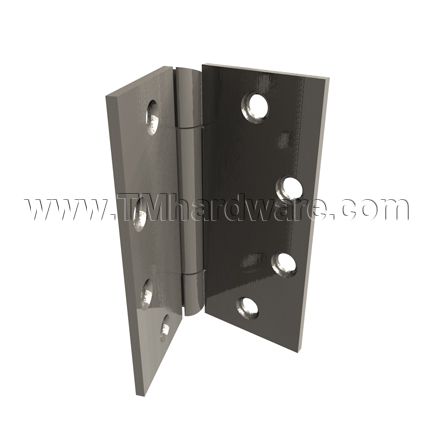

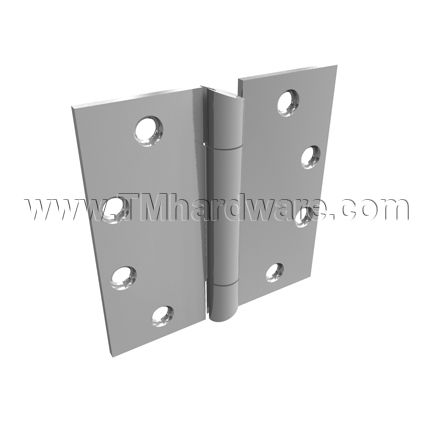

Full Mortised Architectural Institutional Prison Hinge, with three knuckles and concealed bearing, by Hager Companies. For use on heavy weight doors. Steel hinge with stainless steel pin. Variety of sizes and finishes available.

PRICED PER PIECE

See Hager Hinges Color Chart for a detailed list of Hager finishes.

See tabs below for additional information
    • SKU
      HGIHTAB750-4.5x4.5-LS
    • Market price:$151.34
      • save 50%
    • Starting price: Price: $75.67 per item


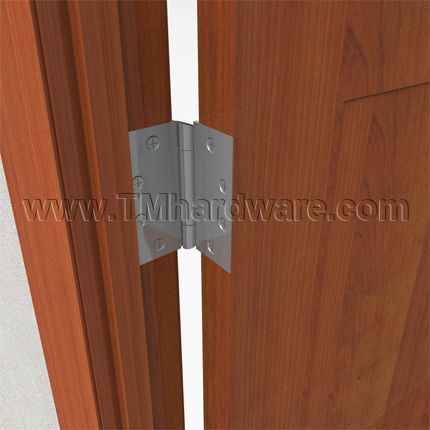

    This heavy duty Architectural hinge, by Hager Companies, is a full mortised Institutional Prison Hinge. It has three knuckles and concealed bearings. It is the perfect product for your high security centers such as hospitals and prisons.

    Hinge size:

    Hinge SizePin DiameterGauge of Metal     Hole CountMachine
      Screw Size
      Inches  mm      Inches  mm
      4-1/2" x 4-1/2"  114 x 114  0.322  8  0.180  8  1/2 x 12-24  FPHM
      5" x 4-1/2"  127 x 114  0.322  8  0.190  8  1/2 x 12-24  FPHM

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Hospital Tip Included: A tip used on hinges in security areas in prisons and hospitals. This tip prevents hanging any objects on the tip of the hinge. Hospital tipped hinges include an NRP (non-rising pin) set screw in the center of the knuckle, two cross pins and an oil port for lubrication purposes.

    Welded Hospital Tip and Plugs and Knuckles. This hinge features welded tip plugs and knuckles for security purposes. Welding eliminates the possibility of taking the hinge apart to remove the door, making it impossible to exit by those means.

    Additional Options:

    • Safety Stud Feature Available. This feature is intended to keep the door secure even if the hinge pin is removed. See Options Tab for more information and pricing.
    • Reverse Safety Stud Feature Available. This feature is intended to keep the hinge locked in place from abuse of battering or destruction of the hinge and screws. It is primarily used in prisons and psychiatric areas. See Options Tab for pricing and more information.
    • Concealed Electric Modifications available: Three types available. Specify when ordering. For pricing and more information see Options Tab to the right. (EMN-Electric Monitor Type, ETW-Electric Thru-Wire Type, ETM-Electric Thru-Wire and Monitor Type)

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.

    This product has a 3 year guarantee against defects in workmanship and materials.

    Click here to view our Full Mortised, Three Knuckle Detention Hinge.

      • SKU
        HGIHTAB750-4.5x4.5-LS
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      IHTAB750
    • Product Design
      • Hinge Category
        Detention Hinge, Welding Hinge
      • Base Material
        Steel
      • Usage Level
        Heavy Duty
      • Throw
        Standard Throw
      • Bearing Type
        Concealed Bearing
      • Knuckles
        3 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4-1/2" x 4-1/2", 5" x 4-1/2"
      • Hinge Thickness
        See Dimensions Chart
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Installation screws provided. Option of security torx screws. See Options Tab for information and pricing.
    • Additional Options - Purchase Through Our Office
      • Reverse Safety Stud Feature
        Yes
      • Hospital Tip
        Yes
      • Electric Modifications
        Yes
    • Finishes
      • Finish
        Luma Sheen Aluminum, Painted, Prime Coat (USP), Satin Chrome (US26D)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A8111, A156.18
      • Warranty
        3 Year Limited Warranty

    Click to Print 4-1/2" Hinge Template

    Click to Print 4-1/2" Reverse Safety Stud Hinge Template

    Click to Print 5" Hinge Template

    Click to Print 5" Reverse Safety Stud Hinge Template



    4-1/2" Hinge Template





    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard A156.18:

    • Luma Sheen Aluminum Paint-LS
    • Prime Coat-USP
    • Satin Chromium Plated-US26D.

    Hinge complies with ANSI A8111.

    a

    Safety Stud

    The Safety Stud (SH) 3/16" projuction is a feature that places a stud on one leaf and a locking hole on the other leaf. When the door is closed, the stud is anchored into the opposite leaf. Even if the hinge pin is removed, the door is secure because the leaves arel locked together.

    Note-this modification is intended as deterrent only. It is not to be considered suitable for high security applications or abusive environments.

    Price: add $19.05 per hinge

    Reverse Safety Stud



    The Reverse Safety Stud (RSS) 7/16" projection is a feature that has a stud projecting from the back of both leaves into the reinforcing plate of both the frame and the door. It is intended to keep the hinge locked in place from abuse of battering or trying to shear the hing and screws. This feature is primarily used in prisons and psychiatric areas.

    Price: add $29.40 per hinge

    Security Torx Screws



    Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used.

    Price per screw: Steel Screws-$1.50         Stainless Steel Screws-$1.95

    Electric Modifications

    EMN-Electric Monitor Type:

    Electric Monitor hinge has a miniature snap action incorporated into the frame leaf. It utilizes a switch to send a signal when the door is opened. This hinge is for electric monitor only.

    • 28 gauge wire
    • Hinge pins are not removable
    • Monitoring capability only
    • Concealed subminiature snap action, SPDT switch
    • Adjustment feature for a wide range of switch sensitivity
    • Preset switching circuit
    • For open loop secure, closed loop secure or single pole double throw (SPDT)

    Switch Maximum Electrical rating: 30 VDC @ .500 amps

    Price: add $469.75

    ETW-Electric Thru-Wire Type:

    Concealed electric thru-wire hinges are a means to transfer electrical power from the power source, (through the use of 4 continuous electric conductors) through the frame and into the door and finally to the electrified door hardware, such as power lock sets, exit devices and other door monitoring devices. This hinge is for electric thru-wire only.

    • 28 guage wire
    • Hinge pins are not removable
    • Low voltage electric current transfer capability only
    • 4, 6, 8, 10, 12 continuous electrical conductors

    Electrical rating:

    Wire Maximum Electrical Rating
    Volts    Amperes

    48

    VDC

    3.5 amps     CONTINUOUS

    16.0 amps   PULSE



    Prices- Additional Per Hinge:

    ETW-4 Wire..............$418.75
    ETW-6 Wire..............$464.30
    ETW-8 Wire..............$513.45
    ETW-10 Wire............$649.95
    ETW-12 Wire............$768.35


    ETM-Electric Tru-Wire and Monitor Type:

    These hinges can monitor door position while at the same time transfering power to electrified door hardware such as, power lock sets, exit devices and other door monitoring devices. It does this by combining the 4 continuous electric conductors and the miniature snap action switch to provide continuous circuit and monitoring capabilities.

    • 28 gauge wire
    • Hinge pins are not removable
    • Both continuous electric conductors and monitoring capability
    • Concealed monitor switch and 4, 6, 8 or 10 continuous conductors
    • Adjustment feature for a wide range of switch sensitivity
    • For open loop secure, closed loop secure or single pole double throw (SPDT)

    Electrical rating:

    Contact Maximum Electrical Rating
    Volts       Amperes

    48

    VDC

    3.5 amps     CONTINUOUS

    16.0 amps   PULSE
    Switch Maximum Electrical Rating
    30 VDC @ .500 amps

    Prices- Additional Per Hinge:

    ETM-4 Wire..............$888.50
    ETM-6 Wire..............$530.30
    ETM-8 Wire..............$974.00
    ETM-10 Wire............$1,0195.50


    Important Points to know about Electric Hinges:

    • All of the Hager Companies electric hinges have been tested through UL in order that our products can be used on fire rated or labeled openings.

    • The electric hinge should be the center hinge and used only for low voltage power transfer (48 volts and under) because of safety.

    • The use of a mortar or jamb box is recommended together with electrically modifies hinges in order to protect the wire termination on the inside of the frame. If the box is not used and wires are damaged, warranty of the product will be void.

    Printable Templates:​
