Hager BB1109, 2 Ball Bearing, Brass or Stainless Steel, Heavy Weight, 5 Knuckle, Half Mortised Hinge, Sized 4.5" - 5"
Half Mortised Architectural, two ball bearing hinge with five knuckles. Standard weight for use with medium weight hollow metal doors with channel iron frames requiring medium frequency service. Brass or stainless steel with stainless steel pin. Variety of sizes finishes available.
PRICED PER PIECE
See Hager Hinges Color Chart for a detailed list of Hager finishes.
This high quality Architectural hinge, by Hager Companies, is a half mortised hinge. It is a five knuckle, ball bearing hinge and standard weight.
Available sizes:
Hinge Size | Gauge of Metal | Hole Count | Machine Screw Size | ||
Inches | mm | Door Leaf | Jamb Leaf | ||
4-1/2" | 114 | 0.134 | 7 | 1/2 x 12-24 FH | 1/2 x 12-24 OH |
5" | 127 | 0.145 | 8 | 1/2 x 12-24 FH | 1/2 x 12-24 OH |
Additional Hinge Dimensions. (chart) "A","B", "C" correspond to figure at the right.
Hinge Size | Door Leaf Width "A" | Jamb Leaf Width "B" | Jamb Leaf Offset "C" | |||||
Inches | mm | Inches | mm | Inches | mm | Inches | mm | |
4-1/2" | 114 | 2" | 51 | 1-1/2" | 38 | 3/8" | 10 | |
5" | 127 | 2" | 51 | 1-1/2" | 38 | 3/8" | 10 |
Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable, which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. Pin and plug are flush with each other.
Reversible: This hinge can be used for a right handed or left handed door. Simply turn the hinge over, not necessary to remove and replace the hinge pin.
Custom colors available. For details and pricing please contact us or call us at 845-388-1300.
Priced per piece.

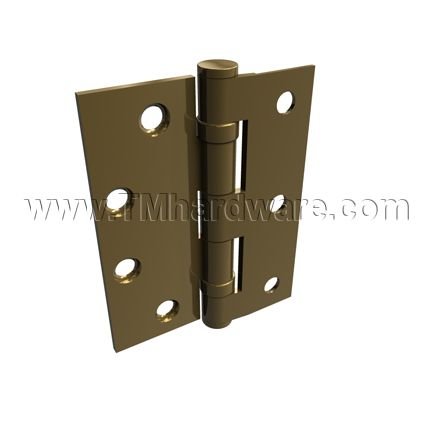

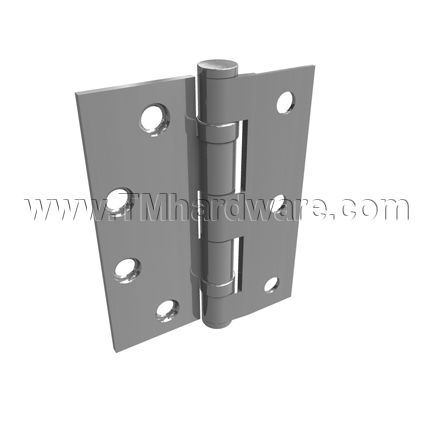

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.
This product has a lifetime guarantee against defects in workmanship and materials.
Click here to view all our Hager Hinges.
To view all hinges in this category, see How to Choose a Half Mortise Hinge.
-
QuickShipNo
-
ManufacturerHager Companies
-
MPNBB1109
- Product Design
-
Hinge CategoryHalf Mortised Hinge
-
Base MaterialBrass, Stainless Steel
-
Usage LevelStandard Duty
-
ThrowStandard Throw
-
Bearing TypeBall Bearing
-
Knuckles5 Knuckle Hinge
-
Pin TypeStandard Hinge Pin
-
Hinge Tip TypeButton Tip
-
Hinge CornerSquare Corner
-
Hole PatternCommercial "C" Pattern
-
Number of Holes7 Holes
-
- Dimensions
-
Hinge Size4-1/2", 5"
-
Hinge ThicknessSee Dimensions Chart
-
- Installation
-
Installation ScrewsProvided.
-
- Finishes
-
FinishSatin Bronze (US10), Oil Rubbed Bronze (US10B), Satin Chrome (US26D), Satin Stainless Steel (US32D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationA156.1, A2212, A5212
-
WarrantyLifetime Limited Warranty
-
Click to Print 4-1/2" Hinge Template
Click to Print 5" Hinge Template
4-1/2" Hinge Template. See above for 5" Hinge Template.
