Hager ECBB1100, 4-1/2" x 4-1/2", 2 Ball Bearing, Steel, 5 Knuckle, Full Mortised ECCO Hinge

Hager ECBB1100, 4-1/2" x 4-1/2", 2 Ball Bearing, Steel, 5 Knuckle, Full Mortised ECCO Hinge
Hager Companies

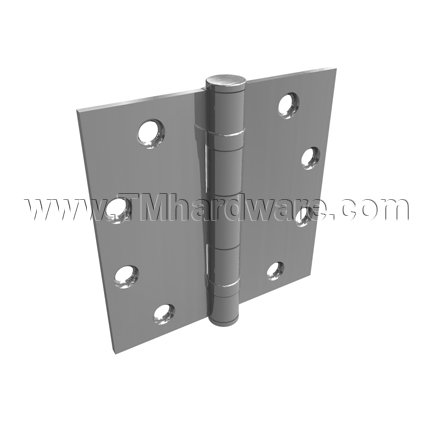

Hager Door Hinge, ECBB1100 Full Mortised, Five Knuckle Architectural Hinge with Ball Bearings, of the Hager ECCO Series. Standard weight for use with medium weight doors and doors of medium frequency service. Hinge made of steel with steel pin. Hinge size is 4-1/2" x 4-1/2".

PRICED PER ITEM

See tabs below for additional information
    • SKU
      HGECBB1100-4.5x4.5-US26D
    • Market price:$16.82
      • save 50%
    • Starting price: Price: $8.41 per item

    Sold per piece in quantities of 3.



    Hager ECBB1100 Full Mortised, Five Knuckle Architectural Hinge with Ball Bearings, of the Hager ECCO Series. Standard weight for use with medium weight doors and doors of medium frequency service. This hinge is part of our ECCO line which is of lower price and quality than our standard USA line. To view the equivalent in standard architectural line, see our Hager BB1279 Hinge.

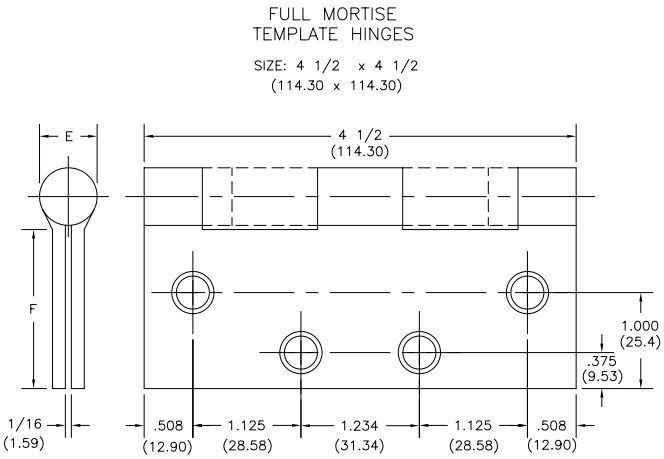

    Available sizes:

    Hinge SizeGauge of MetalHole CountScrew Size
      Inches  mm      Machine  Wood
      4-1/2" x 4-1/2"  114 x 114  0.134  8  1/2 x 12-24  1-1/4 x 12

    Available Finishes: See options above, See Hager Hinges Color Chart for a detailed list of Hager finishes.

    Hinge is provided with a non-rising removable pin. The pin does not rise out of the barrel, yet it is removable, which allows the pin to be taken out for the dismantling of the door without unscrewing the entire hinge. Contains button tip and plug.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.
     Click here to view our Full Warranty Policy.

    Click here to view our Hager Hinges, EC1100 Plain Bearing Standard Weight ECCO Hinge.

      • SKU
        HGECBB1100-4.5x4.5-US26D
    • QuickShip
      No
    • Manufacturer
      Hager Companies
    • MPN
      ECBB1100
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Steel
      • Usage Level
        Heavy Duty
      • Throw
        Standard Throw
      • Bearing Type
        Ball Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4-1/2" x 4-1/2"
      • Hinge Thickness
        .134" Thick
    • Installation
      • Door Type
        Wooden Door, Metal Door
      • Installation Screws
        Installation Screws:
        4-1/2" x 4-1/2": All machine and all wood screws provided
        4-1/2" x 4": All machine and all wood screws provided
        All other sizes: All wooden and half machine screws provided. If all machine screws are required, please add to order comments before completing purchase.
    • Finishes
      • Finish
        Satin Chrome (US26D), Polished Chrome (US26), Prime Coat (USP), Polished Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), Satin Nickel (US15)
    • Compliance Details
      • Compliance Details
        BHMA Certified
      • ANSI Designation
        A8112, A156.18
      • Warranty
        1 Year Limited Warranty

    Hinge complies with ANSI A8112.

    • QUICK SHIP PRODUCTS:
      • 4-1/2" x 4-1/2"- USP Finish - Standard and NRP Pin
      • 4-1/2" x 4-1/2"- US10B Finish - Standard Pin Only
      • 4-1/2" x 4-1/2"- US26D Finish- Standard and NRP Pin

    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Stocked Items: 2 - 5 Days
    Out of Stock Items: 4 - 10 weeks

    CALL TO CONFIRM STOCK
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • These items are non-returnable.
      • We are committed to your satisfaction. As a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
