Pemko #278x224FG Latching Panic Exit Threshold, 4" Aluminum with Thermal Break and Seal, .5" H

This Latching Panic Exit with Thermal Break and Seal is designed to be used with a surface applied vertical rod exit device and as a door bumper with a double seal at the bottom of doors. It has a 4" width and a height clearance of .25". Available with thermo, vinyl or brush seal, made of aluminum and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      PK278x224AFGT
    • Market price:$22.68
      • save 15%
    • Starting price: Price: $19.28 per foot

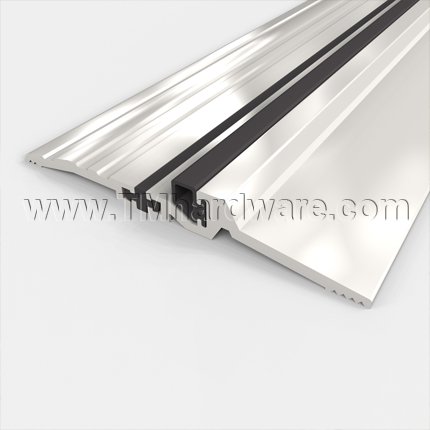

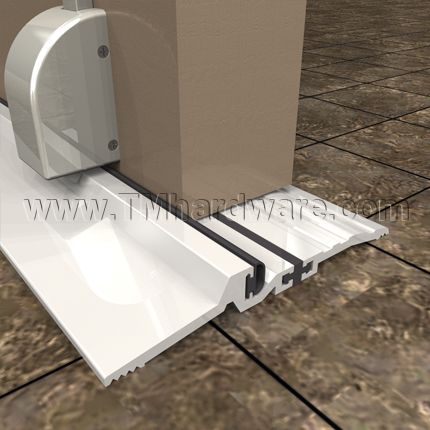

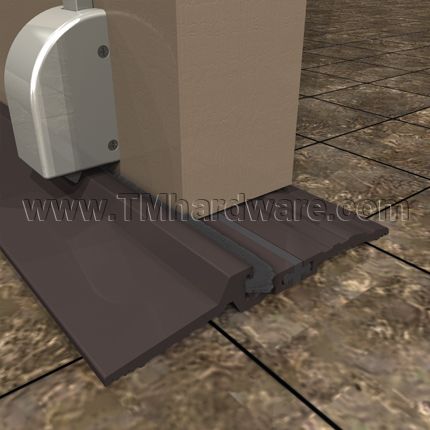

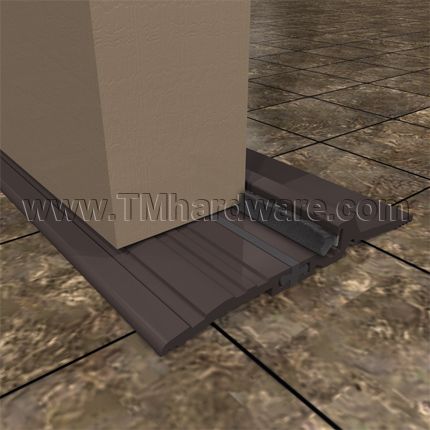

    Threshold is fitted with a black rigid polypropylene break which reduces heat loss and prevents frost build up on the interior surface of the saddle. The threshold design is compatible with a surface applied vertical rod exit device.

    Width: 4"

    Interior Saddle Height: .25" (1/4")

    Total Height: .5" (1/2")

    Length: Custom cut to size up to 104" (larger sizes can be purchased through our office)

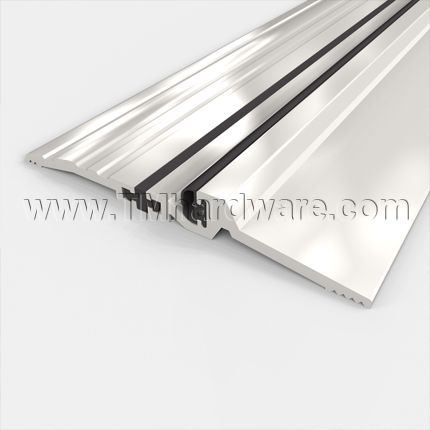

    Available Seals: It can be purchased with either a thermo, vinyl and pile brush seal which compresses against the door to form a tight seal.

    Thermo vs. Vinyl Seal: The thermo seal is a higher grade rubber than its vinyl counterpart and has a greater acoustic performance rating which creates a stronger soundproof seal. It has better performance than vinyl in extreme cold or hot temperature, and is recommended for locations with extreme weather. The vinyl seal wears quicker than thermo, so for best performance, apply vinyl in areas with light traffic abuse.

    Finishes: Available in three aluminum variations

    Compliance Details: See Product Data tab to the right

    Installation: Installation guide and screws provided. Screws are colored to coordinate with saddle. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Threshold is supplied drilled for easy installation

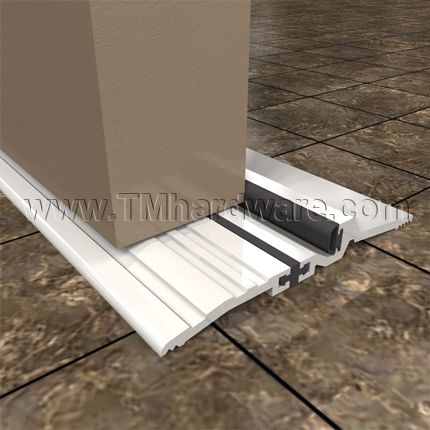

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For a wider option, see our 4.5" Aluminum Latching Panic Exit Threshold with Thermal Break and Seals.

      • SKU
        PK278x224AFGT
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      278x224FGT, 278x224FGP, 278x224FGV
    • Dimensions
      • Overall Height
        .5" Height
      • Interior Height
        .25" Height
      • Overall Width
        4" Width
      • Required Door Clearance
        .375" Height
    • Product Design
      • Threshold Type
        Thermal Break Threshold, Latching Panic Exit Threshold
      • Seal Type
        Thermo Seal, Vinyl Seal, Pile Brush Seal
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Fire Rated, Air Infiltration Rated, ADA Compliant, GreenGuard Gold Certified
      • Warranty
        5 Year Limited Warranty

    Click to Print

    P278x224FG Product Specs:

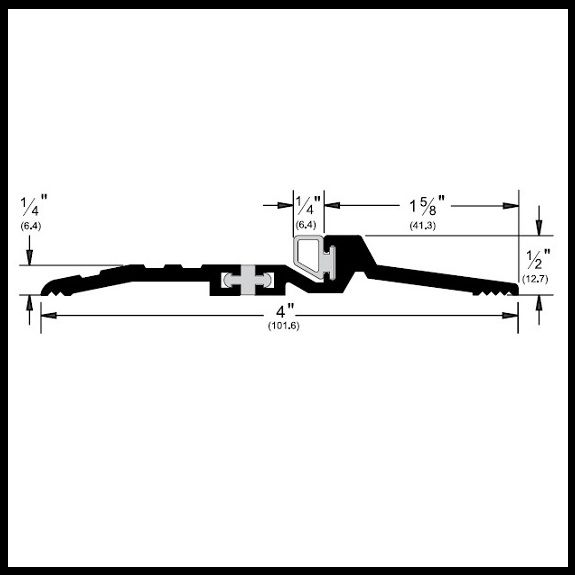

    Thermo Seal:

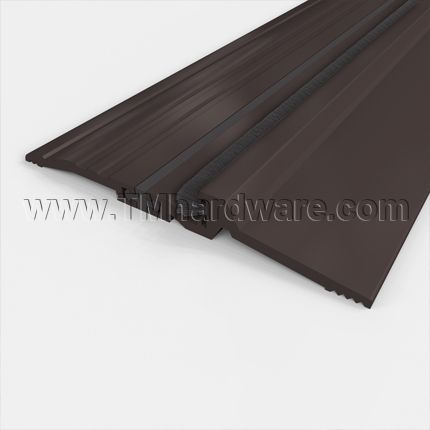

    Pile Seal:

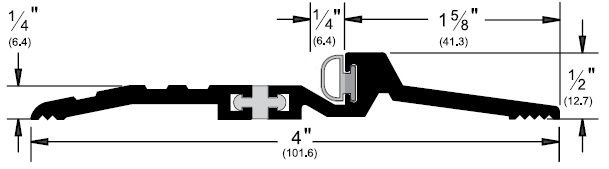

    Vinyl Seal:

    Click to Print



    P278x224FG Installation Guide:

    Click to View Ratings Explained


    Finishes Comply with the Following ANSI / BHMA Codes:
    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 688
