Zero #564B Rabbeted Threshold, Bronze Low Profile with Neoprene, 3.678" W

Zero #564B Rabbeted Threshold, Bronze Low Profile with Neoprene, 3.678" W
Zero International

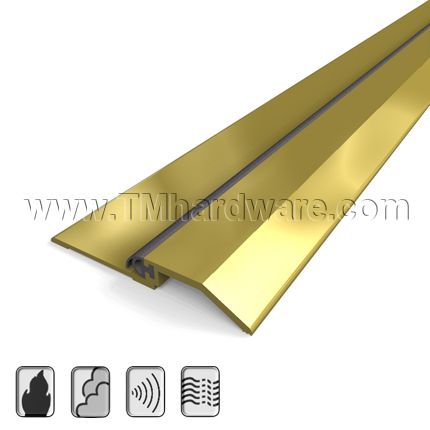

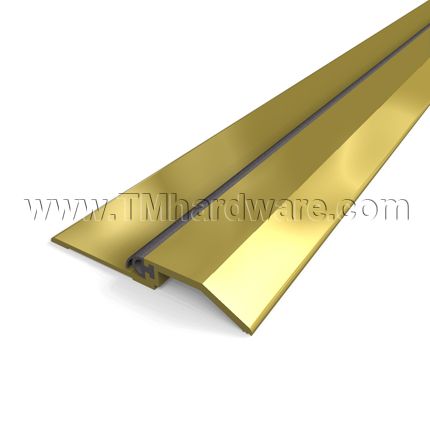

This Zero #564B low profile doorway threshold is fitted with a neoprene extrusion to provide a secure seal for sound at the bottom of doors. It is rated for sound, smoke, fire and air infiltration. The shoulder on this saddle works great in conjunction with our Automatic Door Bottoms. Available also with epoxy non slip, full body strength (see details below). Custom cut to size.

PRICED PER FOOT

This product can also be purchased in Aluminum, see our Aluminum or Bronze Rabbeted Threshold with Low Profile and Rubber Seal.

See tabs below for additional information
    • SKU
      ZR-564BE
    • Market price:$123.46
      • save 5%
    • Starting price: Price: $117.29 per foot


    This product can also be purchased in Aluminum, see our Aluminum or Bronze Rabbeted Threshold with Low Profile and Rubber Seal.

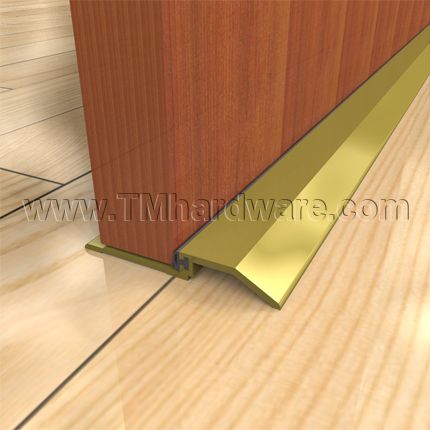

    Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal. Saddle design has a flat top surface which works well with a Surface Mounted Automatic Door Bottom.

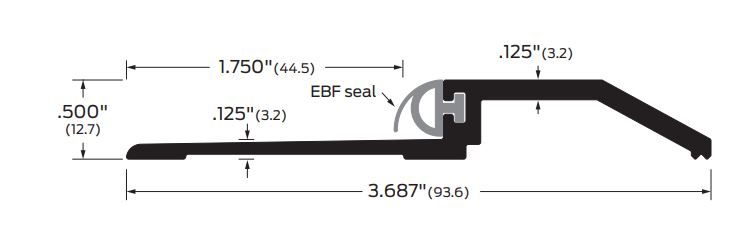

    Total Width: 3.687"

    Width Under Door: 1.75"

    Required Door Clearance: .375"

    Total Height: .5"

    Thickness: .125"

    Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)

    Finish: Bronze mill finish (Oil rubbed bronze can also be purchased for an additional 49% of standard bronze pricing)

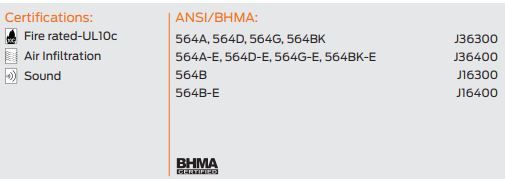

    Compliance Details: Positive Pressure Fire Rating, Smoke Rating, ITS Warnock Hersey Listed, ADA / Wheelchair Compliance

    Seal: Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

    Drilling: Threshold is drilled for easy installation

    Additional Options Include:

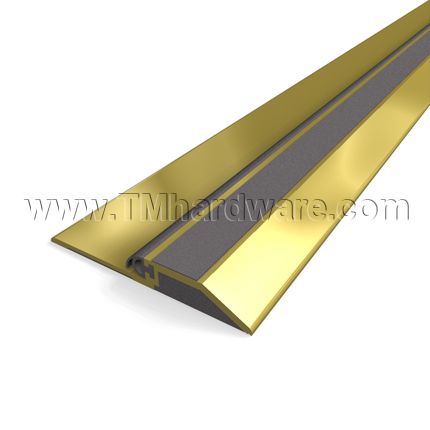

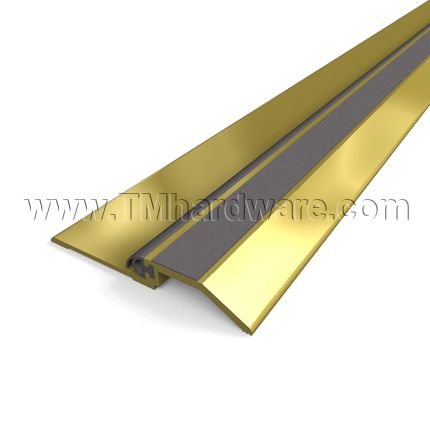

    • Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

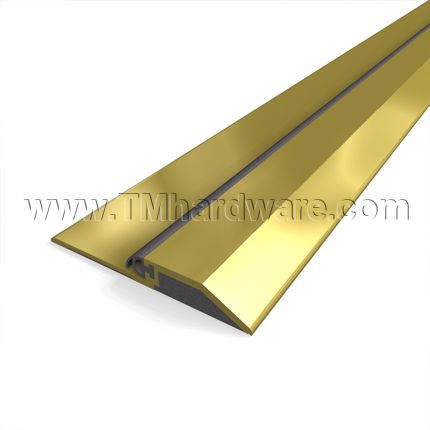

    • Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    Click here to return to our Door Threshold homepage.

      • SKU
        ZR-564BE
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      564
    • Options
      None, Epoxy Abrasives, Full Body Strength, Epoxy Abrasives & Full Body


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Zero is experiencing Significant Delays. If you are in a rush please call us for alternative options.



    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
