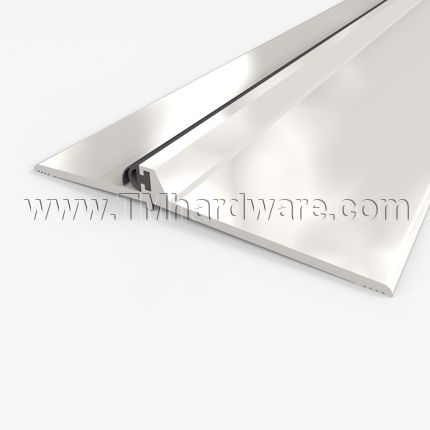

Zero #265 Latching Panic Exit Threshold, 5" Aluminum with Neoprene Gasket, Low Profile, .625" H

This Zero #265 Latching Panic Exit Threshold, made of Aluminum Mill Finish, can be used in conjunction with a surface applied vertical rod exit device. It is fitted with a Neoprene Bulb which compresses against the door to create a solid seal. It is fire and smoke rated and will prevent air, wind and water infiltration. Length is custom cut to size.

See full product details and specs in tabs below.

PRICED PER FOOT

See tabs below for additional information

Options
Length

Quantity

Add to compare

Threshold design is compatible with a surface applied rod exit device.

Seal: Threshold has a neoprene seal which compresses against door to create a solid seal. The specialized Extruded Bulb and Finger Design (EBF) ensures superior sealing by compensating for gaps that may occur due to faulty installation or natural warping of the door. Seal remains flexible in extreme temperatures

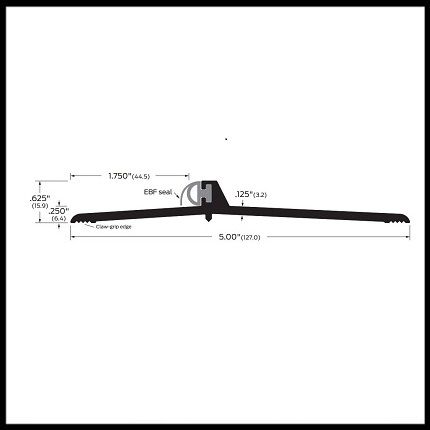

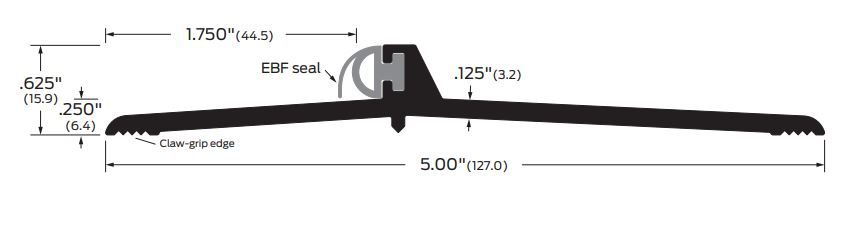

Width: 5"

Required Door Clearance: .25"

Total Height: .625"

Thickness: .125"

Finishes: Available in aluminum mill finish

Compliance Details: Positive Pressure Fire Rated, Smoke Rated, ITS Warnock Hersey listed

Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

Click here to see more Rubber Seal Thresholds.

- SKU
  ZR265A
QuickShip
No
Manufacturer
Zero International
MPN
265
Options
Standard Aluminum, Full Body Strength
Dimensions
- Overall Height
  .625" Height
- Overall Width
  5" Width
- Required Door Clearance
  .25" Height
- Thickness
  .125" Thick
Product Design
- Flat Saddle Design
  Smooth Top Design
- Threshold Type
  Latching Panic Exit Threshold
- Seal Type
  Neoprene Seal
- Material
  Aluminum
Installation
- Drilling Holes
  Drilling holes provided
- Fasteners
  Fasteners Provided
Compliance Details
- Warranty
  1 Year Limited Warranty
