Markar FM100 Aluminum Hinge, Concealed Leaf

Markar FM100 Aluminum Hinge, Concealed Leaf
Markar

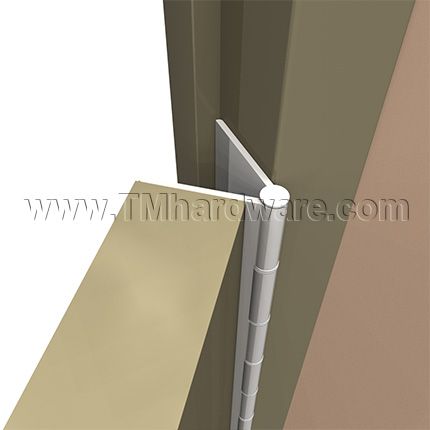

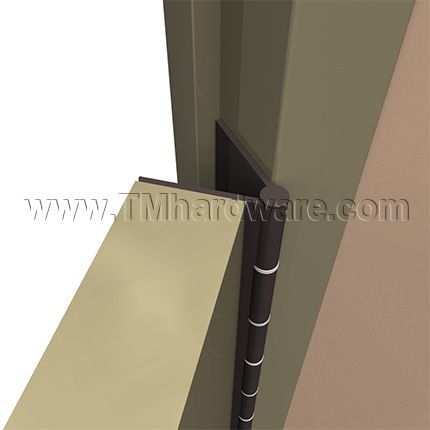

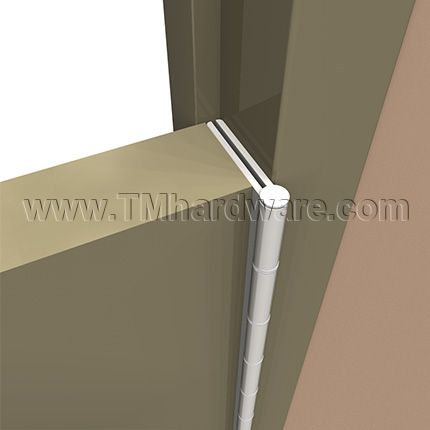

Markar FM100 is an Aluminum Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and edge of the door to conceal both leaves.  This hinge is designed for door weighing up to 600 lbs. and a maximum width of 4'0". Hinge is made from Extruded Aluminum Alloy with a choice of Clear Anodized or Dark Bronze Anodized finish. Available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRFM100_79_CR
    • Market price:$664.00
      • save 25%
    • Starting price: Price: $498.00 per item


    Marker FM100 is a Pin and Barrel Type Continuous Aluminum Concealed Leaf Hinge.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width. Non-handed. Extruded with 30% more aluminum giving it exceptional strength and durability. Unique design distributes weight of door down the entire length of the hinge.

    • Design: Constructed from 6063-T6 Aluminum Alloy, .187" diameter stainless steel pin with medical bearings and aluminum end pins. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Fasteners concealed when door is closed.

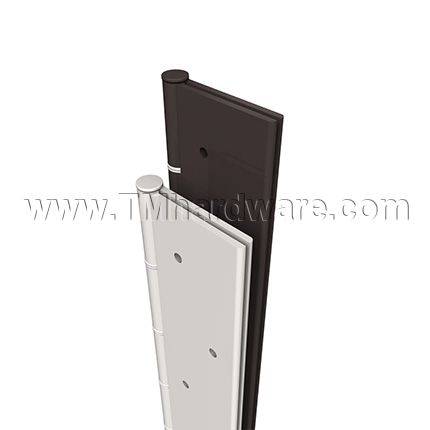

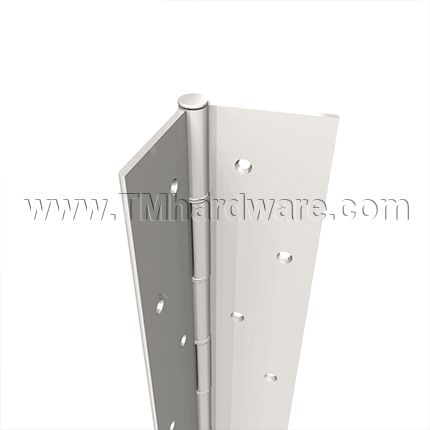

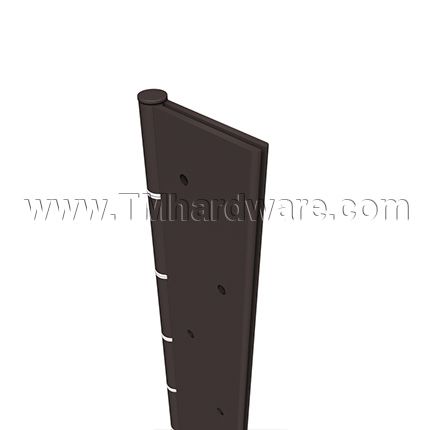

    • Finish: Clear Anodized (628) or Dark Bronze Anodized (313). Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Custom 12-24 x 11/16" S.S. Phillips Flat Head Undercut TEK Screws.

    • Handing: Not required on standardard hinges. Specify handing when ordering a hinge with modification.

    • Certifications: ANSI/BHMA Standard A156.26 Grade 2
      Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Please note: This hinge is not fire-rated.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar FS101 Full Surface Continuous Hinge with 1/8" inset.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRFM100_79_CR
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MFM100
    • Finish Options
      Clear Anodized Aluminum, Dark Bronze Anodized Aluminum

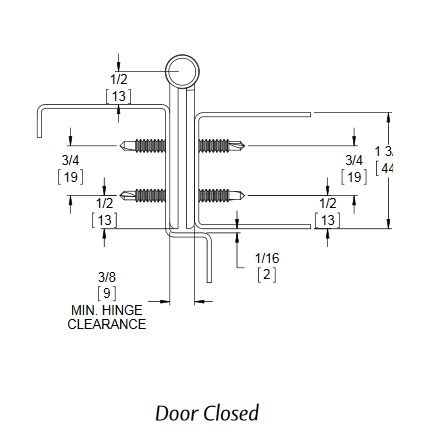

    Printable Documents:  Click to print Markar FM100 Aluminum Hinge Product Specs. Product Specs:
    Click to print Installation Instructions for Markar FM100 Aluminum Hinge. STEP 1: Frame Preparation 1. Place the hinge frame leaf on the frame. Position the top of the hinge 1/8" maximum below the header as shown (Fig.1). Place the hinge firmly a against the rabbet of the frame. 2. Mark and center punch each hole on the frame with the hinge held firmly in place. For ease of installation, a center punch can help center the hole so that the fasteners will enter straight. Remove the hinge from the frame and prepare to drill the frame. 3. Drill holes: For wood frame, drill all holes using a #28 or 9/64" drill bit. For hollow metal frame, drill all holes using a #16 drill bit. If hollow metal frame is reinforced, thread all holes with 12-24 tap. Do not install the hinge to the frame at this time. STEP 2: Door Preparation 1. Position the hinge door leaf so that the top of the hinge is flush with the top of the door. Next make sure the hinge edge is up flush with the door face. 2. Mark and center punch each hole on the door with the hinge held firmly in place (Fig. 2). Remove the hinge from the door and prepare to drill the door. 3. Drill holes. For wood doors, drill all holes using a #28 or 9/64" drill bit. For hollow metal doors, drill all holes using a #16 drill bit. If hollow metal door is reinforced, thread all holes with 12-24 tap. STEP 3: Hinge Installation 1. Attaching hinge to door (Fig. 3) Wood: Attach hinge using #12-8 x 1 1/2" Flat Head Particle Board Screws (PBS12150SP10__) Hollow Metal: Attach hinge using #12-24 x 11/16" Flat Head Undercut Self Drilling Machine Screws (TKS1267SP10__) 2. Attaching hinge to frame: (Fig.4) Wood: Attach hinge using #12-8 x 1 1/2" Flat Head Particle Board Screws (PBS12150SP10__) Hollow Metal : Attach hinge using #12-24 x 11/16" Flat Head Undercut Self Drilling Machine Screws tKS1267SP10__)
