Markar FS101 Aluminum Hinge, Full Surface 1/8" Inset

Markar FS101 Aluminum Hinge, Full Surface 1/8" Inset
Markar

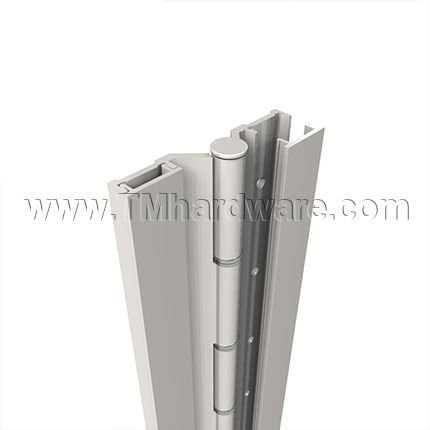

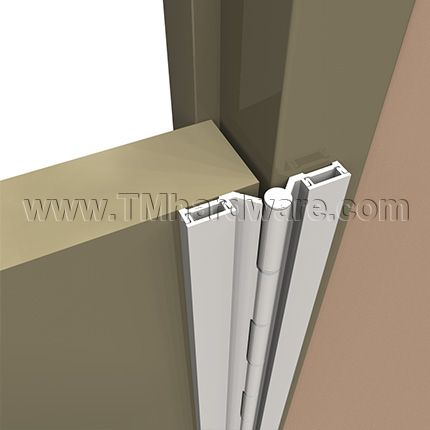

Markar FS101 is an Aluminum Full Surface Leaf Continuous Hinge which is mortised to the surfaces of the frame and door.  This hinge is designed with an 1/8" inset for door weighing up to 600 lbs. and a maximum width of 4'0". Hinge is made from Extruded Aluminum Alloy with a choice of Clear Anodized or Dark Bronze Anodized finish. Available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRFS101_CR_RH_79
    • Market price:$782.00
      • save 25%
    • Starting price: Price: $586.50 per item


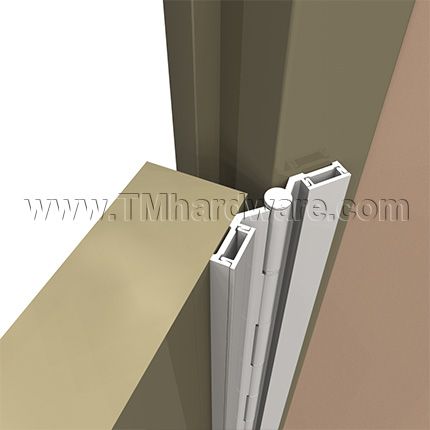

    Marker FS101 is a Pin and Barrel Type Continuous Aluminum Full Surface Leaf Hinge with 1/8" inset and security moldings to conceal fasteners.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width. Extruded with 30% more aluminum giving it exceptional strength and durability. Designed to solve door sag problems in hollow metal, wood or aluminum doors.

    • Design: Constructed from 6063-T6 Aluminum Alloy,  .187" diameter stainless steel pin with medical bearings and aluminum end pins. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Fasteners concealed with security moldings. 1/8" inset allows perfect alignment for retrofitting doors within existing conditions, no need to readjust weather stripping!

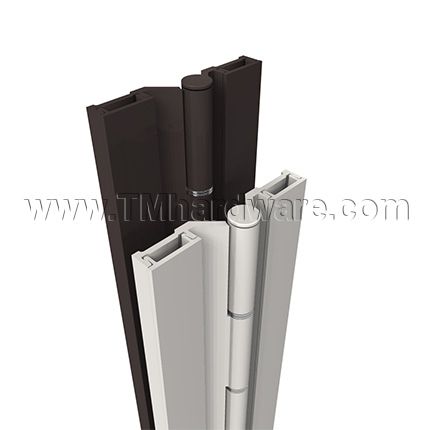

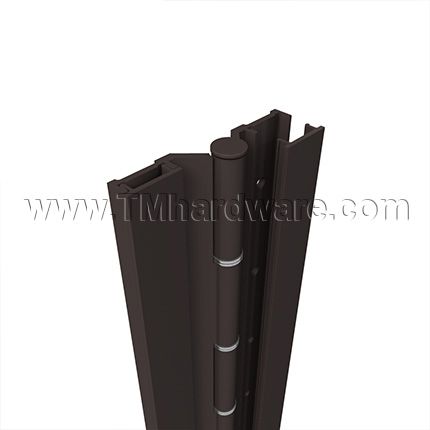

    • Finish: Clear Anodized (628) or Dark Bronze Anodized (313). Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: 1/4 -14 x 3/4" Security TORX TEK Screws. No exposed mounting fasteners.
    • Handing: Specify Handing when ordering hinge. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    • Certifications: ANSI/BHMA Standard A156.26 Grade 2.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Please note: This hinge is not fire-rated.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar FS102 Flush Full Surface Aluminum Hinge.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRFS101_CR_RH_79
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MFS101
    • Handing
      Right Hand, Left Hand
    • Finish Options
      Clear Anodized, Dark Bronze Anodized

    Printable Documents:

     Click to print Markar FS101 Continuous Hinge Product Specs.

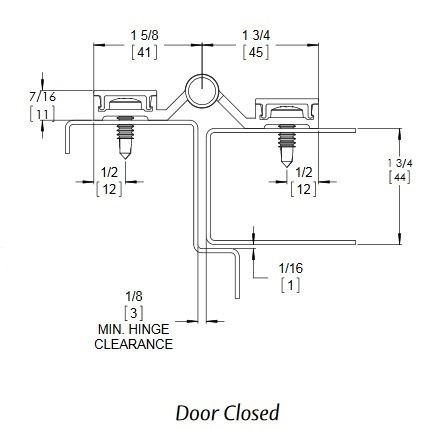

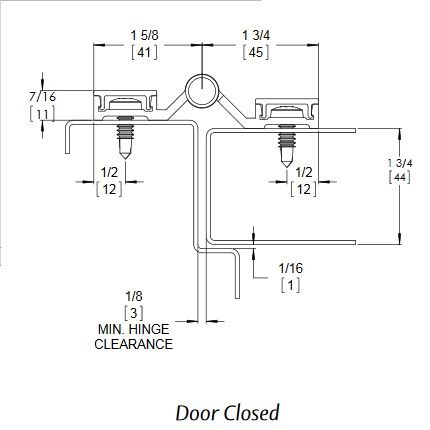

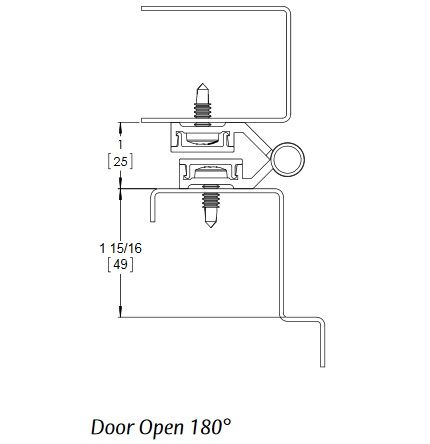

    Product Specs:
    Markar FS101 Aluminum Hinge Product SpecsMarkar FS101 Aluminum Hinge Product Specs



    Click to print Installation Instructions for Markar FS101 Aluminum Hinge.

    General Information:

    Note: Do not install Snap-On cover until installation is 100% complete and all aspects of the assembly are correctly fastened and properly fitted. The cover is impossible to remove without damage and replacement may be necessary.

    The Screw Pack contains self-drilling machine screws. These self-drilling Tek screws are also recommended for grout-filled frames. Perform each step of these instructions.

    Installation:

    The Screw Pack contains self-drilling machine screws. These self-drilling Tek screws are also recommended for grout-filled frames. Perform each step of these instructions.

    1. Place hinge on frame as shown (Fig. 1 on attachment). Allow 1/8" between top of hinge and underside of header.

    2. Mark the position of the top and bottom holes with a center punch then drill and fasten. The use of a center punch (available through our office) can help center the hole so that the fasteners will enter straight.

    3. After the top and bottom screws are installed, drill and fasten the balance of the holes. Note that the stress on the hinge is much greater at the top. Markar recommends that all holes at the top of the hinge be drilled and fasteners be installed. At the bottom, only three of the last five holes require fasteners unless the door weighs over 200 lbs.

    4. Fold the door leaf back over the frame leaf and place the door in the door frame. Place shims under the door to provide 1/8" clearance between the header and top of door. Add shims at both the hinge and latch side of the door so that 1/8" clearance will be maintained on the lock side of the door.

    5. With the door held firmly in place, return the door leaf to the face of the door and repeat the drilling procedure described in steps 2 and 3. Molly Jacknuts and aluminum sleeve bolts (available through our office) can be used as an optional means of attaching the door leaf.

    6. When installation is complete (see Note at the start of the instructions), hold the snap-on cover squarely on the hinge leaf.

    7. Starting at the top and working downward until the entire length of the cover is firmly engaged, tap the cover firmly using a softwood block to protect the finish from hammer blows.

    8. With the cover firmly in place, secure it using the #8 sheet metal screw. The screw will be either at the top or bottom of the cover, depending on the hand of the door (see Figure 2).
