Markar FMSC325 Stainless Steel Hinge, Concealed Leaf With Swing Clear Action

Markar FMSC325 Stainless Steel Hinge, Concealed Leaf With Swing Clear Action
Markar

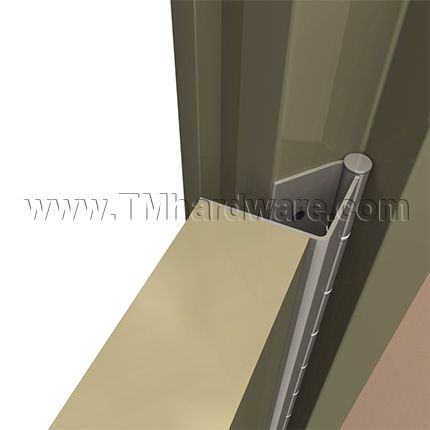

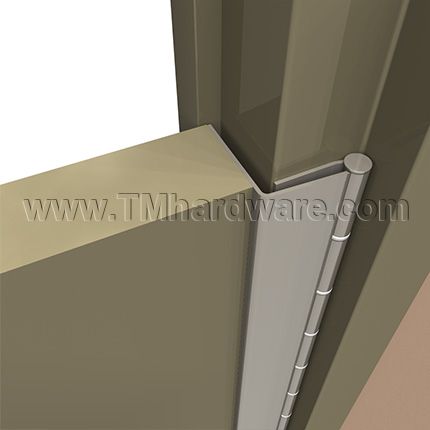

Markar FMSC325 is a Heavy-Duty Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and edge of the door to conceal both leaves.  This hinge is designed for square edges doors weighing up to 600 lbs. and a maximum width of 4'0". Hinge is Satin Stainless Steel and available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRFMSC325_79_RH
    • Market price:$1,103.00
      • save 25%
    • Starting price: Price: $827.25 per item

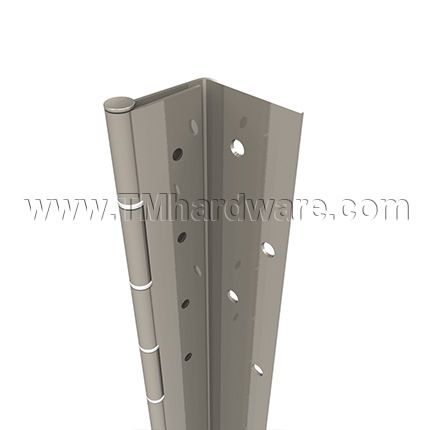

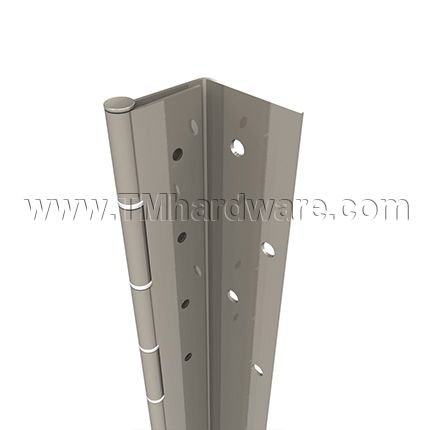

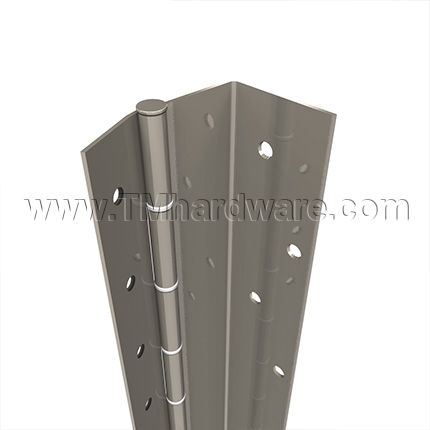

    Marker FMSC325 is a Pin and Barrel Type Continuous Stainless Steel Concealed Leaf Hinge with Swing Clear Action.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs., 4'0" maximum door thickness. Extra heavy duty for high traffic, high abuse door applications, including correctional facilities, high security locations and extra heavy doors. Used to  ensure that a door opened to a 90 degree angle is removed from the opening.

    • Design: Constructed from 14 gauge 304 stainless steel (US32D), .187" diameter 304 stainless pin (rod) with flanged nylon bearings and stainless steel end pins. Security fastener made from Extruded Aluminum. This hinge will mount on a 1 3/4" face and is especially useful for ADA upgrade work.

    • Finish: US32D Satin Stainless Steel (630), cover made from Brushed Aluminum. Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Fasteners concealed when door is closed. Universal screw pack provided.

    • Handing: Specify Handing when ordering hinge. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                            Classified in accordance with UL10C for positive pressure.
                            Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.
                            ANSI/BHMA Standard A156.26 Grade 1.
                            Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar HG326 Stainless Steel Hinge with Adjustable Hinge Guard and Swing Clear Action.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRFMSC325_79_RH
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MFMSC325
    • Handing
      Right Hand, Left Hand

    Printable Documents:

     Click to print Markar FMSC325 Stainless Steel Hinge.

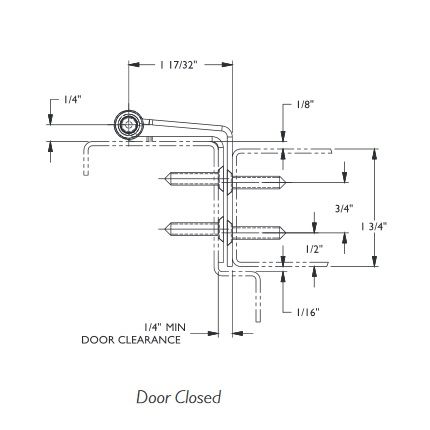

    Product Specs:
    Markar FMSC325 Stainless Steel Hinge Product SpecsMarkar FMSC325 Stainless Steel Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications
