Markar FS201 is a Heavy-Duty Full Surface Leaf Continuous Hinge which is attached to the surfaces of the door and door frame with security moldings to conceal fasteners.  Designed with 1/8" inset for door weighing up to 600 lbs. and a maximum width of 4'0". Hinge is made from Carbon Steel with a Zinc plated finish and is available in standard stock sizes, see below for details.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRFS201_79_RH
    • Market price:$642.00
      • save 25%
    • Starting price: Price: $481.50 per item


    Marker FS201 is a Pin and Barrel Type Continuous Stainless Steel Full Surface Leaf Hinge with 1/8" inset.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width. Extra heavy duty for high traffic, high abuse door applications, including correctional facilities, high security locations and extra heavy doors.  Can be used to repair and replace existing hinges on both fire-labeled and non-labeled doors that have very tight clearances.

    • Design: Constructed from 14 gauge 1012 carbon steel, .187" diameter 304 stainless steel pin (rod) with medical bearings and stainless steel end pins. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Fasteners concealed when door is closed. Built in 1/8" inset to assist in weather seal and sound barrier areas.

    • Finish: Zinc plated. Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: 1/4-14 x 3/4 Security TORX TEK Screws.
    • Handing: Specify Handing when ordering hinge. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                            Classified in accordance with UL10C for positive pressure.
                            Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.
                            ANSI/BHMA Standard A156.26 Grade 1.
                            Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, blank hinges (minus hole pattern), lead lined cover (1/16" LEAD), security fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

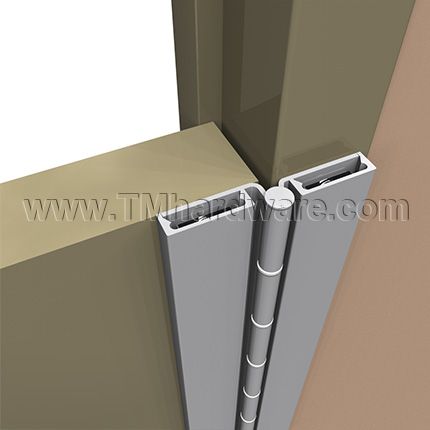

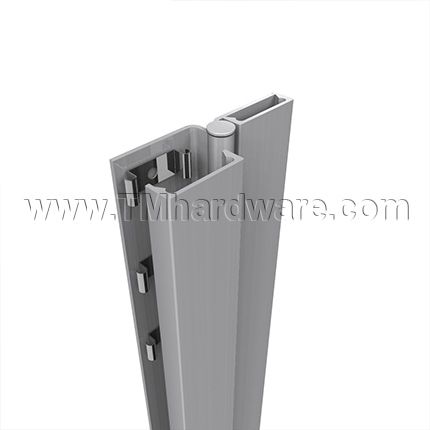

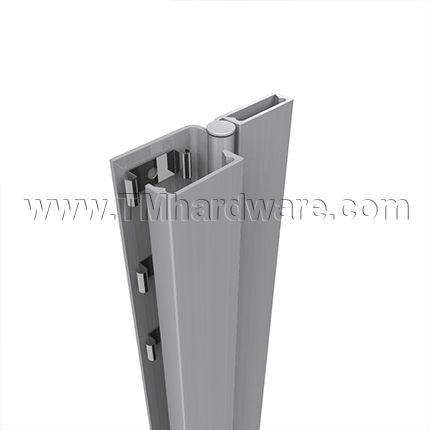

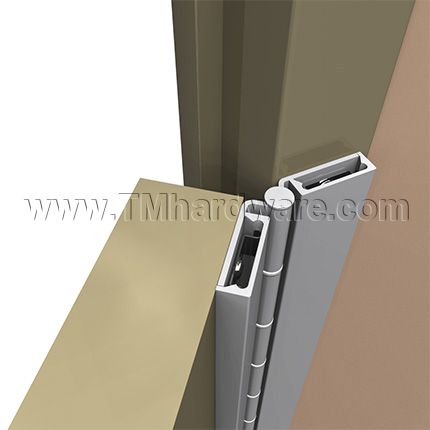

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar FS202 Full Surface Continuous Hinge, Flush Mount.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRFS201_79_RH
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MFS201
    • Handing
      Right Hand, Left Hand

    Printable Documents:

     Click to print Markar FS201 Continuous Hinge Product Specs.

    Product Specs:

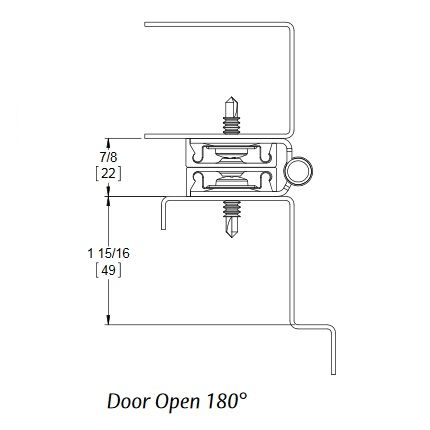

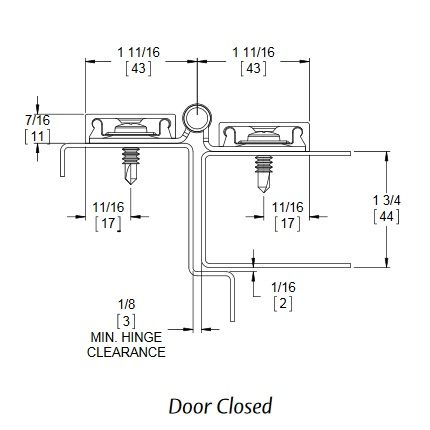

    Markar FS201 Continuous Hinge Product SpecsMarkar FS 201 Continuous Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications



    Click to print Installation Instructions for Markar FS201 Pin and Barrel Hinge.

    General Installation:

    All holes in the hinge must be drilled correctly and fasteners properly installed. Failure to use the fasteners properly installed. Failure to use the fasteners supplied by Markar Architectural Products, Inc. will void the UL or WHI fire rated listing.

    Do not install Snap-On cover until installation is 100% complete, and all aspects of the assembly are correctly fastened and properly fitted.

    The Screw Pack contains self-drilling Tek screws. These screws are also recommended for grout-filled frames.

    Installation:

    Perform each step of these instructions.

    1. Place hinge on frame as shown in Figure 1 on the other side of these instructions. Allow 1/8" between top of hinge and underside of header. Note that at least 1 5/8" of frame face is required for mounting this hinge.

    2. Mark the position of the top and bottom holes with a center punch, then drill and fasten. The use of the Markar MT-806 center punch can help center the hole so that the fasteners will enter straight.

    3. After the top and bottom screws are installed, drill and fasten the balance of the holes. Install at least five cover clips by passing a screw through the clip, hinge leaf and frame. (See Figure 2). Markar recommends that clips be positioned in the top, center and bottom holes, with the remaining clips spaced equally along the length of the hinge.

    4. Fold the door leaf back over the frame leaf and place the door in the door frame. Place shims under the door to provide 1/8" clearance between the header and the top of the door. Add shims at both the hinge and latch side of the door so that 1/8" clearance will be maintained equally on the lock side of the door.

    5. With the door held firmly in place, return the door leaf to the face of the door and repeat the drilling procedure described in steps 2 and 3. Molly Jacknuts and aluminum sleeve bolts (Markar part numbers MP-20 and MP-22) are available from you hardware supplier as an optional means of attaching the door.  Steel sleeve bolts (part# MP-23) must be used on mineral core wood fire doors.
