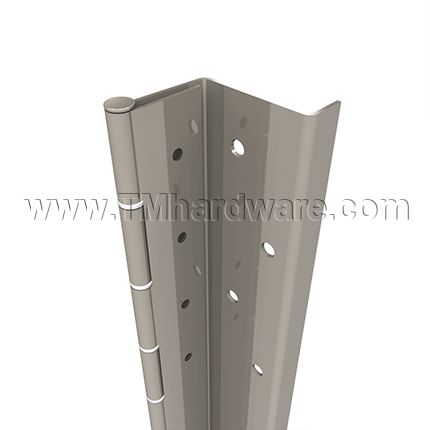

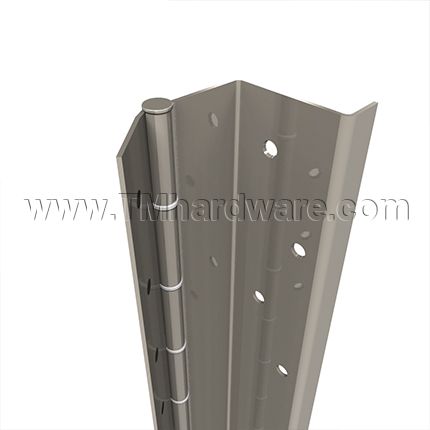

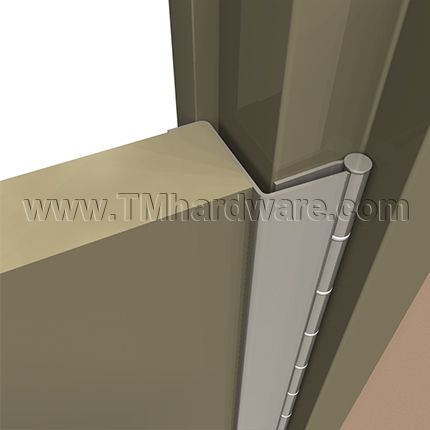

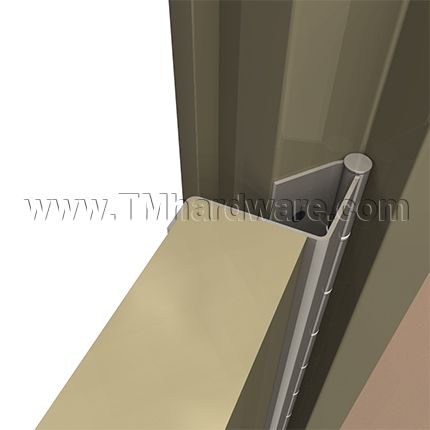

Markar HG311 is a Heavy-Duty Concealed Leaf Continuous Hinge which is mortised to the frame rabbet and edge of the door to conceal both leaves.  Single door edge wrap with Swing Clear Action for square edged doors designed for doors weighing up to 600 lbs. and a maximum width of 4'0". Hinge is Satin Stainless Steel and available in standard stock sizes, see below for details and pricing.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      MRG311_79_RH
    • Market price:$925.00
      • save 25%
    • Starting price: Price: $693.75 per item


    Marker HG311 is a Pin and Barrel Type Continuous Stainless Steel Concealed Leaf Hinge with Hinge Guard and Swing Clear Action.

    • Standard Sizes: 6'8", 7'0", 7'2", 8'0", 10'0". Custom sizing available, contact us or call at 845-388-1300 for details and pricing.

    • Applications:  Supports weights up to 600 lbs. 4'0" maximum door width. Extra heavy duty for high traffic, high abuse door applications, including correctional facilities, high security locations and extra heavy doors.  This surface applied swing clear version allows doors to meet ADA requirements.

    • Design: Constructed from 14 gauge 304 stainless steel (US32D), .187" diameter 304 stainless pin (rod) with medical bearings and stainless steel end pins. Each knuckle 2", including split nylon bearing at each separation for a quiet, smooth, self-lubricating operation. Fasteners concealed when door is closed. Single door wrap protects door edges from cart damage.

    • Finish: US32D Satin Stainless Steel (630).  Custom finishes are available, contact us or call at 845-388-1300 for details and pricing.

    • Mounting Hardware: Custom 12-24 x 11/16" S.S. Phillips Flat Head Undercut TEK Screws.

    • Handing: Specify Handing when ordering hinge. Select handing from options above. Not sure what handing is required for your door? See How to Determine Handing / Swing of Door.

    • Certifications: Fire-Rating: 3 hours on hollow metal doors. 90 minutes- hollow metal and composite. 20 minutes- wood door.
                            Classified in accordance with UL10C for positive pressure.
                            Evaluated in accordance with TAS 201-94, TAS 202-94, TAS 203-94, ASTM E330, ASTM E1886, ASTM E1996 and ANSI A250.13.
                            ANSI/BHMA Standard A156.26 Grade 1.
                            Note: Fire label for doors and frames should be placed on the header and top rail of fire rated doors and frames.

    • Modifications and Options: Adjustable monitoring switch, hospital tip hinges, medical bearings, dutch door hinge preparation, custom hole patterns, special sheared leaf, wide throw hinges, raised barrel(Swage), edge guard hardware cut-outs, special length hinges, Electrical Modification Access Prep, CTP-Current Transfer Preparation, CE - Current Transfer-Concealed, CT- Current Transfer- Contact Switch, ES-Exposed Monitoring Switch, Blank Hinges (Minus Hole Pattern), Lead Lined Cover (1/16" LEAD), Security Fasteners are available through our office. For details and pricing please contact us or call 845-388-1300.

    • Priced per Piece

    • Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    Click to view our Markar HG315 Stainless Steel Hinge with Edge Guard.

     This product has a 25 year warranty against defects in workmanship and material.

    Click here to view our Full Warranty Policy.

      • SKU
        MRG311_79_RH
    • QuickShip
      No
    • Manufacturer
      Markar
    • MPN
      MHG311
    • Handing
      Right Hand, Left Hand

    Printable Documents:

     Click to print Markar HG311 Continuous Hinge Product Specs.

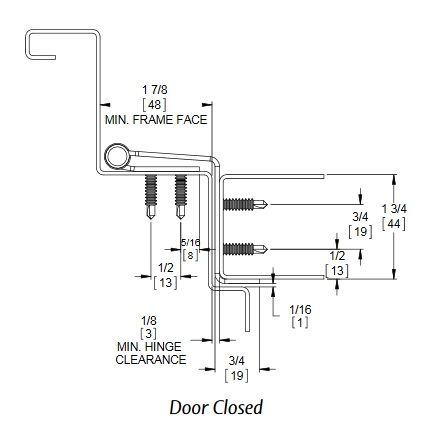

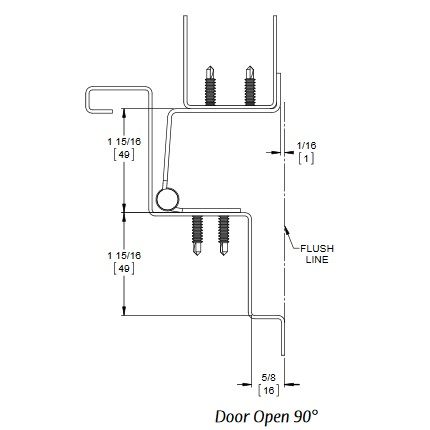

    Product Specs:
    Markar HG311 Pin and Barrel Hinge Product SpecsMarkar Pin and Barrel Hinge Product Specs

    Certifications:
    Markar Continuous Hinge Certifications



    Click to print Installation Instructions for Markar HG311 Pin and Barrel Hinge.
    All holes in the door and frame must be drilled correctly and fasteners properly installed. Failure to use the fasteners supplied by our manufacturer will void the UL or WHI fire rated listing.

    STEP 1. Frame Preparation:

    1. Place the hinge frame leaf on the frame face. Position the top of the hinge 1/8" maximum below the header. Place the hinge firmly against the face of the frame. Position the frame leaf edge 3/16" from rabbet as shown in attachment.

    2. Mark the top and bottom two holes with the hinge held firmly in place. Remove the hinge. a center punch can help center the hole so that the fasteners will enter straight. Prepare to drill the frame.

    3. Drill Holes: For wood frames, drill holes using a #28 or 9/64" drill bit. For hollow metal frames: drill holes using a #16 drill bit. If hollow metal frame is reinforced thread all holes with 12-24 tap.

    4. Install hinge with the four screws. For wood, attach hinge using #12 x 1 1/2" Flat Head Undercut Particle Board Screws (PBS12150SP10SS). for hollow metal, attach hinge using #12-24 x 11/16" Flat Head Undercut Self Drilling Machine Screws (TKS1267SP10SS).

    5. Mark remaining mounting holes, remove hinge and repeat step 3.

    Do not install the hinge to the frame at this time.

    Step 2. Door Preparation:

    1. Place the hinge door leaf on the edge of the door. Position the top of the hinge flush with the top of the door.

    2. Mark and center punch each hole on the door with the hinge held firmly in place. Remove the hinge form the door and prepare to drill the door.

    3. Drilling doors: For wood doors, drill all holes using a #28 or 9/64" drill bit. For hollow metal doors, drill all holes using a #16 drill bit. If the hollow metal door is reinforced, thread all holes with 12-24 tap.

    Step 3. Hinge Installation:

    1. Attaching hinge to door: For wood, attach hinge using #12 x 1 1/2" Flat Head Undercut Particle Board Screws (PBS12150SP10SS). For hollow metal, attach hinge using #12-24 x 11/16" Flat Head Undercut Self Drilling Machine Screws (TKS1267SP10SS).

    2. Attaching hinge to frame. For wood, attach hinge using #12 x 1 1/2" Flat Head Undercut Particle Board Screws (PBS121500SP10SS). For hollow metal, attach hinge using #12-24 x 11/16" Flat Head Undercut Self Drilling Machine Screws (TKS1267SP10SS).

    PRODUCT MUST BE INSTALLED ACCORDING TO ALL APPLICABLE BUILDING AND LIFE SAFETY CODES.
