Pemko #3496_Q Meeting Stile, Aluminum, Locking Spring Bolt with Foam Kerf-in Seal for In-swing Doors

Pemko #3496_Q Meeting Stile, Aluminum, Locking Spring Bolt with Foam Kerf-in Seal for In-swing Doors
Pemko Manufacturing

You can cut down on energy waste and stop the passage of drafts, heat, and sound between adjacent environments with quality door seals. This Meeting Stile, designed for 1.75" thick, single active, double in-swing doors, seals the midline gap with a Foam Kerf-in seal. In addition, it has a tamper-proof spring bolt that lock one of the doors in place. It has two mounting options and various aluminum finishes to match room decor. Custom cut to size.

PRICED PER RANGE

See tabs below for additional information
    • SKU
      PK3496CQ80
    • Market price:$172.87
      • save 10%
    • Starting price: Price: $155.58 per item


    This meeting stile with locking spring bolts has both a foam Kerf-in seal and a pile brush seal to provide imperforated closure to the midline gap of single active in-swing doors. This product has many customization options and is supplied with an installation kit for your convenience.

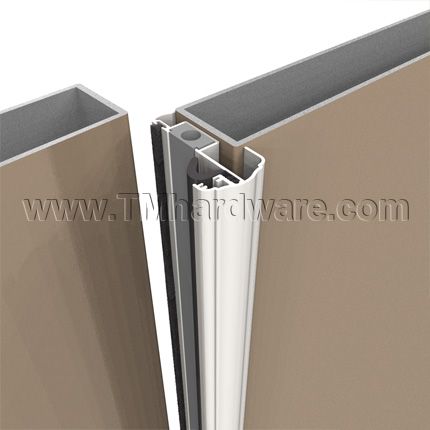

    Dimensions: This meeting stile is for 1.75" thick doors. The Inactive door is fitted with an aluminum housing that cradles the door’s edge and extends more than .5” away from edge. A colonial style front holding the foam kerf-in seal extends over the opposite door. It also holds a pile brush seal and the tube that holds an aluminum spring-lock bolt mechanism (see product specs).

    For surface mounted installation, the midline gap must exceed .5”. To mortise for a neat look, a .5” cutout in the inactive door edge is required. See product specs and detailed images for visual representation.

    Seals: This meeting stile has two seals; a foam kerf-in seal and a pile brush seal. Foam kerf-in seal is constructed from soft cell foam enclosed by an embossed, tear-resistant, low-friction, UV-stable polyethylene cover.  Shape and materials conform well to irregularities in door fit and finish for a tight seal and low air infiltration. The pile brush seal provides double protection from infiltration of unwanted  dirt, insects, sound, and light between environments.

    Lock Bolt: Meeting Stile is fitted with locking spring bolts. Spring bolt has full 3/8" diameter steel bolts with 1-1/16" throw for improved locking strength. In the extended and locked position, locking spring bolts are tamper proof and cannot be easily retracted. In the retracted position, the spring loaded bolts latch firmly, thus preventing marking of the floor and door header trim when opening or closing the inactive door.

    Handing: Please specify the handing of the active in-swing door in ‘Handing’  option above. Confused about handing? See How To Determine Door Handing or Swing of Door.

    Customization Options: You can customize this meeting stile to accommodate existing door attributes.

    Punchout Locations: If your door has a deadbolt or latchbolt, please contact us to order this product with custom punchouts at no additional cost.

    Additional Features: Vinyl snap-in cover strip: Meeting stile comes with with a vinyl snap-in cover strip to conceal the slidebolt cutout and to cover the mounting screws.

    Neoprene bottom seal: Product comes with a molded sponge neoprene bottom seal

    Installation kit and detailed instructions provided. Kit includes: Two, four-way, adjustable, Top & Bottom Bolt Strike Plates, screws for attaching astragal to door edge, strike plates, and a 3/32 Hex key for adjusting spring bolt locking units. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.

    Click to view our Full Warranty Policy.

    Many variations of meeting stiles for single active doors are available. See our Locking Meeting Stile with Spring bolts and Magnetic Kerf-In seal

      • SKU
        PK3496CQ80
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      3496_Q
    • Handing
      Right Handed, Left Handed
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Pile Brush, Kerf-in Seal
      • Door Type
        Single active door in a double door set
      • Mounting
        Surface Mounted, Fully Mortised
    • Dimensions
      • Total Height
        1-13/32"
      • Width
        1-3/4"
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), White Painted Aluminum
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Finishes Comply with the Following ANSI / BHMA Finish Codes:

    • Bright Dip Gold Anodized Aluminum- US3/ 707
    • Clear Anodized Aluminum- US28 / 628
    • Dark Bronze Anodized Aluminum- US10B / 710
    • Painted White Aluminum-  714
    • Satin Nickel Anodized Aluminum- US15/ 619
