Pemko #3495_Q Meeting Stile, Aluminum, Locking Slide Bolt with Foam Kerf-in Seal for In-swing Doors
You can cut down on energy waste and stop the passage of drafts, heat, sound, and other unwanted elements between adjacent environments with quality door seals. This Meeting Stile, designed for 1.75" thick, single active, double in-swing doors, seals the midline gap with a foam Kerf-in seal as well as a pile brush seal. In addition, it has slide bolts that lock one of the doors in place. Available in various aluminum finishes to match room decor. Custom cut to size.
PRICED PER RANGE
This locking meeting stile has both a foam Kerf-in seal and a pile brush seal to provide imperforated closure to the midline gap of single active in-swing doors. It is ideal for entrances with 1.75” thick, in-swing, double doors where only one of the doors is in use most of the time for security reasons, to control traffic, maintain room temperature, or for privacy and calm. See customization options below for additional functions.

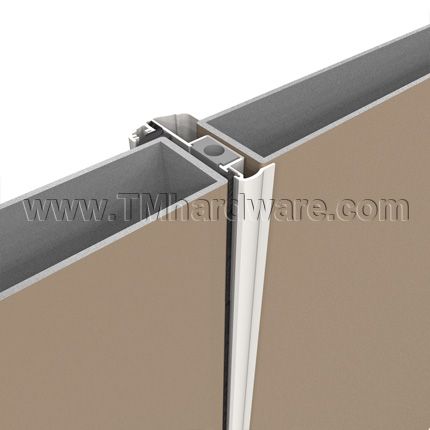

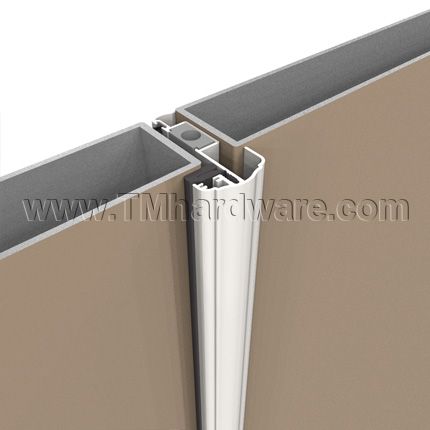

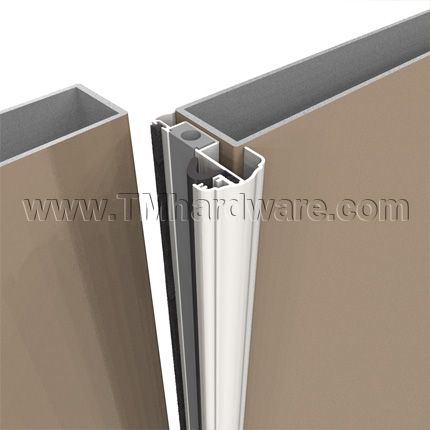

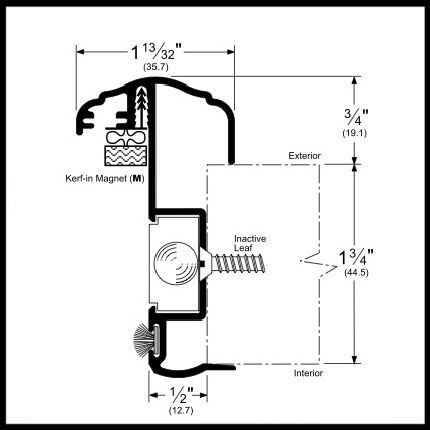

Dimensions: This meeting Stile is for 1.75" thick doors. The Inactive door is fitted with an aluminum housing that cradles the door’s edge and extends more than .5” between the doors. A colonial style front holding the foam kerf-in seal extends over the opposite door. The aluminum housing also contains the tube that holds an aluminum slide-lock bolt mechanism (see product specs).
For surface mounted installation, the midline gap must exceed .5”. To mortise for a neat look, a .5” cutout in the inactive door edge is required. See product specs and detailed images for visual representation.
Seals: This meeting stile has two seals; Foam kerf-in seal and a pile brush seal. Foam kerf-in seal is constructed from soft cell foam enclosed by an embossed, tear-resistant, low-friction, UV-stable polyethylene cover. Shape and materials conform well to irregularities in door fit and finish for a tight seal and low air infiltration. The pile brush seal provides double protection from infiltration of unwanted dirt, insects, sound, and light between environments.
Lock Bolt: Meeting Stile is fitted with an economical, smooth acting bolt slide mechanism that is installed at the top and bottom of the meeting stile. Available in two sizes:
- 4" Throw: The standard version has an aluminum steel , 4.00” throw bolt with a 3/8" diameter and 1-1/16" throw for improved locking strength.
- 18" Throw for Easy Access: Option for a longer 18" (from the top and bottom) throw bolt is available for an additional fee, included in price when 18" is selected from options. Select required bolt from options above.
Handing: Please specify the handing of the active in-swing door in ‘Handing’ option above. Confused about handing? See How To Determine Door Handing or Swing of Door.
Customization Options: You can customize this meeting stile to accommodate existing door attributes.
Punchout Locations: If your door has a deadbolt or latchbolt, please contact us to order this product with custom punchouts at no additional cost.
Additional Features: Vinyl snap-in cover strip: Meeting stile comes with with a vinyl snap-in cover strip to conceal the slidebolt cutout and to cover the mounting screws.
Neoprene bottom seal: Product comes with a molded sponge neoprene bottom seal

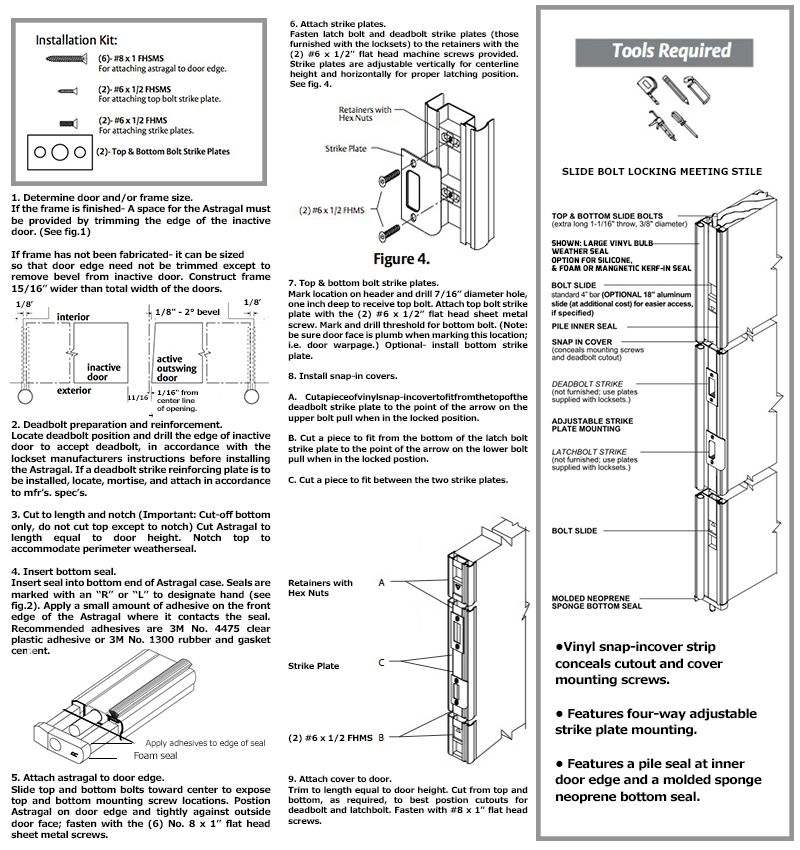

Installation kit and detailed instructions provided. Kit includes: Two, four-way, adjustable, Top & Bottom Bolt Strike Plates and screws for attaching astragal to door edge and strike plates. Screws are colored to coordinate with casing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
Many variations of meeting stiles for single active doors are available. See our Meeting Stile, Aluminum, Locking Slide Bolt with Magnetic Kerf-in Seal, In-swing Doors
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN3495_Q
-
Bolt Throw4" Throw, 18" Throw for Easy Access
-
HandingRight Handed, Left Handed
- About This Product
-
Retainer MaterialAluminum
-
Seal TypePile Brush, Kerf-in Seal
-
Door TypeSingle active door in a double door set
-
MountingSurface Mounted, Fully Mortised
-
- Dimensions
-
Total Height1-13/32"
-
Width1-3/4"
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty5 Year Limited Warranty
-
