Pemko #3443 Meeting Stile, Aluminum, Locking Slide Bolt with Double Seal for Outswing Door

Pemko #3443 Meeting Stile, Aluminum, Locking Slide Bolt with Double Seal for Outswing Door
Pemko Manufacturing

Reduce energy waste and halt the passage of heat, drafts, sound, light, insects, and dirt between adjacent environments with quality door seals. This outswing, Double Seal Meeting Stile for 1.75" thick, single active double doors is installed along the midline gap of the doors and is fitted with slide bolts which lock one of the doors in place. Meeting stile has both mortised or surface mounted applications and comes in a variety of aluminum finishes. Custom cut to size with additional customization options.

PRICED PER RANGE

See tabs below for additional information
    • SKU
      PK3443CS80
    • Market price:$201.56
      • save 10%
    • Starting price: Price: $181.40 per set


    This meeting stile for outswing doors has both pile and silicone seals to provide imperforated closure to the midline gap of single active doors. This product has many customization options and is supplied with an installation kit for your convenience.

    Applications: This meeting stile is ideal for entrances with outswing, 1.75” thick double doors where only one of the doors is in use most of the time for security reasons, to control traffic, maintain room temperature, or for privacy and calm. This product can be surface applied or mortised for a neat, sleek look. See customization options below for additional functions.

    Dimensions: This meeting Stile is for 1.75" thick doors. The active door should be beveled 2° (see product specs and installation instructions) to fit the aluminum housing that cradles the door’s edge. A silicone seal extends over the door's edge to seal the gap.

    The Inactive door is fitted with an aluminum housing that cradles the door’s edge and extends more than .5” away from edge. It holds a pile seal and contains the tube that holds an aluminum lock bolt mechanism. Therefore, for surface mounted installation, the midline gap must exceed .5”. To mortise for a neat look, a .5” cutout in the inactive door edge is required. See product specs and detailed images for visual representation.

    Lock Bolt: Meeting Stile is fitted with an economical, smooth acting bolt slide mechanism that is installed at the top and bottom of the meeting stile . Available in two sizes:

    • Standard 4" Throw: The standard version has an aluminum steel , 4.00” throw bolt with a  3/8" diameter and 1-1/16" throw for improved locking strength.
    • Easy Access 18" Throw: Option for a longer 18" (from the top and bottom) throw bolt is available for an additional fee, included in price when 18" is selected from options. Select required bolt from options above.

    Handing: Please specify the handing of your door in ‘Handing’  option above. Confused about handing? See How To Determine Door Handing or Swing of Door.

    Customization Options: You can customize this meeting stile to accommodate existing door attributes.

    Punchout Locations: If your door has a deadbolt or latchbolt, please contact us to order this product with custom punchouts at no additional cost.

    Additional Features: Vinyl snap-in cover strip: Meeting stile comes with with a vinyl snap-in cover strip to conceal the slidebolt cutout and to cover the mounting screws.

    Neoprene Bottom Seal: Product comes with a molded sponge neoprene bottom seal

    Installation kit and detailed instructions provided. Kit includes: Two, four-way, adjustable, Top & Bottom Bolt Strike Plates and screws for attaching astragal to door edge and strike plates. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship. Click to view our Full Warranty Policy.

    Many variations of meeting stiles for single active doors are available. See our Wood Meeting Stile with Locking 7” Flush Bolts and Kerf-in Seal, for In-swing Doors

      • SKU
        PK3443CS80
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      3443
    • Bolt Throw
      Standard 4" Throw, Easy Access 18" Throw
    • Handing
      Right Handed, Left Handed
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Pile Brush, Silicone
      • Door Type
        Single active door in a double door set
      • Mounting
        Surface Mounted, Fully Mortised
    • Dimensions
      • Total Height
        1-1/4"
      • Width
        1-3/4"
    • Installation
      • Installation Screws
        Provided
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), White Suede Powder Coat (WSP)
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Click to Print



    Determine Handing:

    How to determine handing for double doors

    Product Specs:

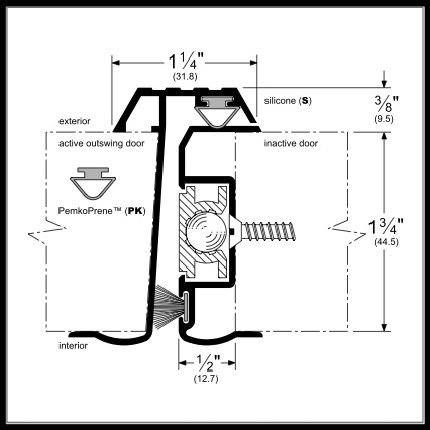

    Dimensions for a Locking Aluminum Meeting Stile with Double Seals for 1.75” Thick Outswing Doors

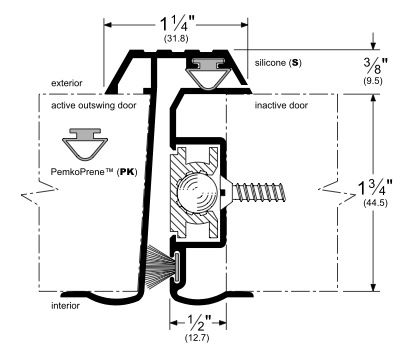

    Diagram of a Locking Aluminum Meeting Stile with Double Seals for 1.75” Thick Outswing Doors

    Finishes Comply with the Following ANSI / BHMA Finish Codes:

    • Clear Anodized Aluminum- US28 / 628
    • Dark Bronze Anodized Aluminum- US10B / 710
    • Painted White Aluminum-  714
