Pemko #3444 Meeting Stile, Aluminum, Locking Spring Bolt with Double Seal, Outswing Doors

Pemko #3444 Meeting Stile, Aluminum, Locking Spring Bolt with Double Seal, Outswing Doors
Pemko Manufacturing

Reduce energy waste and halt the passage of heat, drafts, sound, light, insects, and dirt between adjacent environments with quality door seals. This Double Seal Meeting Stile for outswing, 1.75" thick, single active double doors, is composed of two aluminum housings with seals which are installed along the midline gap of the doors. One of the housings is fitted with tamper-proof spring bolt to lock one of the doors in place. Meeting stile has both mortised or surface mounted applications and comes in various aluminum finishes. Custom cut to size with additional customization options.

PRICED PER RANGE

See tabs below for additional information
    • SKU
      PK3444CS80
    • Market price:$225.14
      • save 10%
    • Starting price: Price: $202.63 per set


    This meeting stile with locking spring bolts is designed for outswing doors. Aluminum housing has both pile and silicone seals to provide imperforated closure to the midline gap of single active doors. This product has customization options and is supplied with an installation kit for your convenience. This product can be surface applied or mortised for a neat, sleek look. See customization options below for additional functions.

    Dimensions: This meeting Stile is for 1.75" thick doors. The active door should be beveled 2° (see product specs and installation instructions) to fit the aluminum housing that cradles the door’s edge. A silicone seal extends over the door's edge to seal the gap.

    The Inactive door is fitted with an aluminum housing that cradles the door’s edge and extends more than .5” away from edge. It holds a pile seal and contains the tube that holds an aluminum lock bolt mechanism. Therefore, for surface mounted installation, the midline gap must exceed .5”. To mortise for a neat look, a .5” cutout in the inactive door edge is required. See product specs and detailed images for visual representation.

    Lock Bolt: Meeting Stile is fitted with locking spring bolts. Spring bolt has full 3/8" diameter steel bolts with 1-1/16" throw for improved locking strength. In the extended and locked position, locking spring bolts are tamper proof and cannot be easily retracted. In the retracted position, the spring loaded bolts latch firmly, thus preventing marking of the floor and door header trim when opening or closing the inactive door.

    Handing: Please specify the handing of your door in ‘Handing’  option above. Confused about handing? See How To Determine Door Handing or Swing of Door.

    Customization Options: You can customize this meeting stile to accommodate existing door attributes.

    Punchout Locations: If your door has a deadbolt or latchbolt, please contact us to order this product with custom punchouts at no additional cost.

    Additional Features: Vinyl snap-in cover strip: Meeting stile comes with with a vinyl snap-in cover strip to conceal the spring-bolt cutout and to cover the mounting screws.

    Neoprene bottom seal: Product comes with a molded sponge neoprene bottom seal

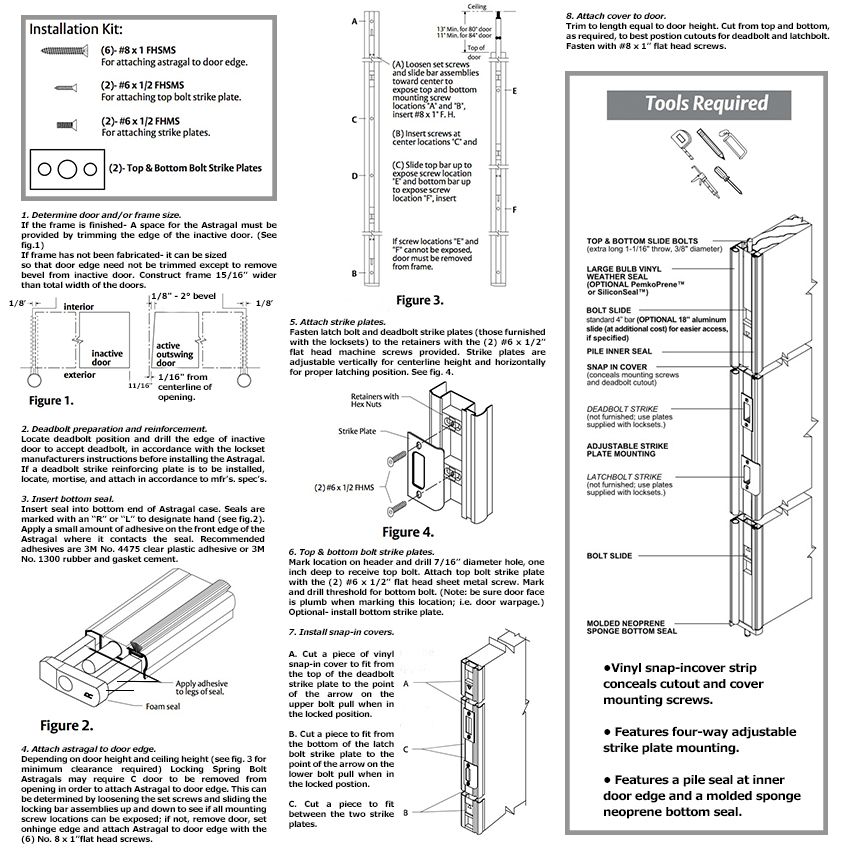

    Installation kit and detailed instructions provided. Kit includes: Two, four-way, adjustable, Top & Bottom Bolt Strike Plates and screws for attaching astragal to door edge and strike plates. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship. Click to view our Full Warranty Policy.

    Many variations of meeting stiles for single active doors are available. See our  Aluminum Meeting Stile with Locking Slide Bolt with Double Seal for In-swing Doors

      • SKU
        PK3444CS80
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      3444
    • Handing
      Right Handed, Left Handed
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Pile Brush, Silicone
      • Door Type
        Single active door in a double door set
      • Mounting
        Surface Mounted, Fully Mortised
    • Dimensions
      • Total Height
        1-1/4"
      • Width
        1-3/4"
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Click to Print

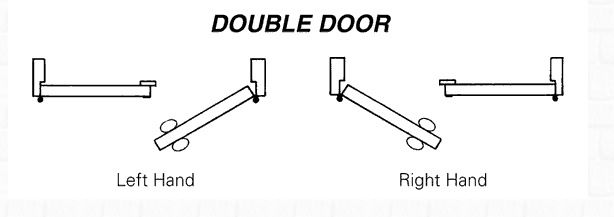

                                             A Diagram portraying How To Determine Handing of Double Doors

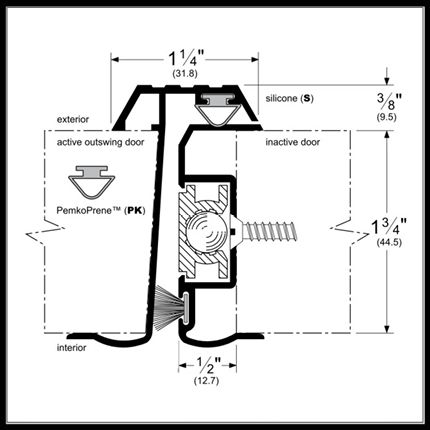

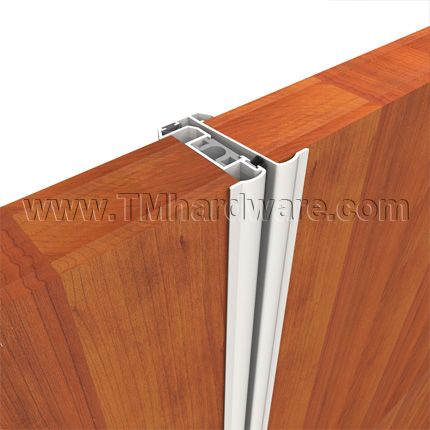

    Drawing of Dimendions of a Locking spring Bolt Astragal with Pile and Silicone Seals    Drawing of Spring Bolt Locking Meeting Stile on Door Edge

    Finishes Comply with the Following ANSI / BHMA Finish Codes:

    • Clear Anodized Aluminum- US28 / 628
    • Dark Bronze Anodized Aluminum- US10B / 710
    • Painted White Aluminum-  714
