Pemko #3572 Security Astragal, Heavy Duty Offset Steel for Single Outswing Doors

Pemko #3572 Security Astragal, Heavy Duty Offset Steel for Single Outswing Doors
Pemko Manufacturing

This security astragal is surface applied to the face of a single, outswing door to cover the gap between the door and jamb. The security aspect of this seal prevents tampering, prying and manipulation of the door, ideal for classroom and auditorium doors that open into exterior area. Available in steel variations, including stainless steel, with or without drilling, and is custom cut to size.

Need it sooner? Stock size and finish are available to ship within 1-3 business days. See Pemko #3572 Security Astragal, Heavy Duty Offset Steel for Single Outswing Doors, Steel, 96" - QUICKSHIP

PRICED PER RANGE

Note, this product is custom cut to size, with a minimal fee for trimming included in price below. Stock sizes 80", 84" and 96" do not have trimming fee included in price.

See tabs below for additional information
    • SKU
      PK3572SP-ND80
    • Market price:$252.56
      • save 10%
    • Starting price: Price: $227.90 per item


    This security astragal is designed for use along the full height of a single, outswing door to cover the cap between the door and jamb. The security aspect of this seal prevents tampering, prying and manipulation of the door, which is ideal for classroom or auditorium doors that open into exterior areas. This product is made of high quality material and has been specified and approved by major school districts.

    Need it sooner? Stock size and finish are available to ship within 1-3 business days. See Pemko #3572 Security Astragal, Heavy Duty Offset Steel for Single Outswing Doors, Steel, 96" - QUICKSHIP

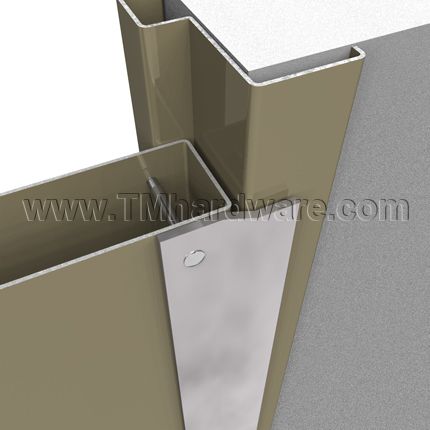

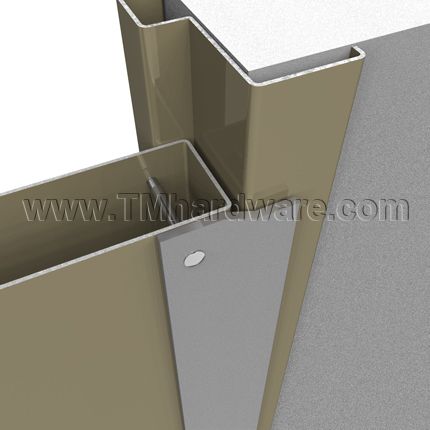

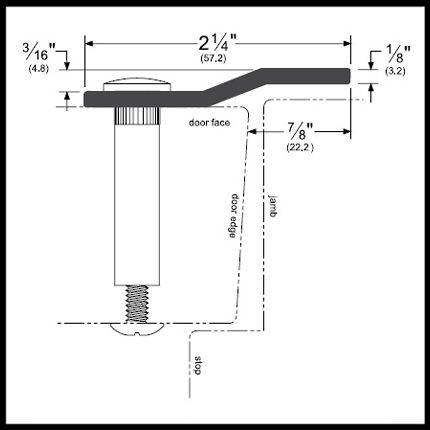

    Design: The security seal is compatible with single, outswing, wood or metal doors. It has an offset metal sheet which is surface mounted to the face of the door with security thru-bolts. Security seal should be applied to the full height of the door for maximum effectiveness.

    Material: Security Seal is available in the following high quality steel variations:

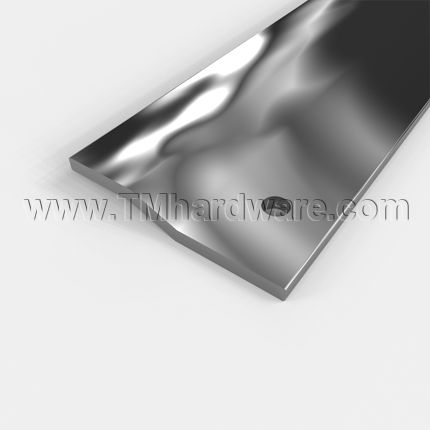

    • Stainless Steel - 10 Gauge, #4 Finish and #4 Finish Edge

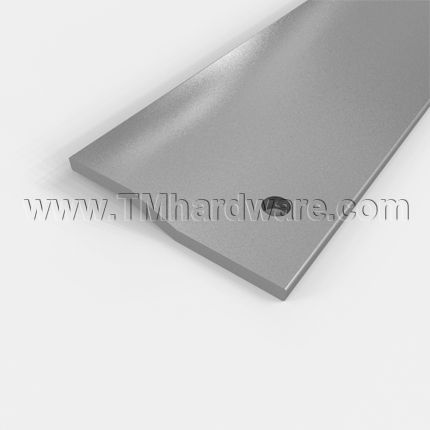

    • Prime Steel - 10 Gauge
    • Painted Prime - 7 Gauge

    Drilling: Drilling is supplied 12" on center with 1/4" holes, if required select from options above. Thru-Bolts are included only if drilling is supplied.

    Compliance: Security Seal is fire rated and can be installed on fire doors. Upon installation care must be taken to maintain compliance. Please review codes before installation.

    Note, this product is custom cut to size, with a minimal fee for trimming included in price below. Stock sizes 80", 84" and 96" do not have trimming fee included in price.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view all our Security Seals.

      • SKU
        PK3572SP-ND80
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      3572, 3572PP7
    • Length
      24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94", 94.25", 94.5", 94.75", 95", 95.25", 95.5", 95.75", 96", 96.25", 96.5", 96.75", 97", 97.25", 97.5", 97.75", 98", 98.25", 98.5", 98.75", 99", 99.25", 99.5", 99.75", 100", 100.25", 100.5", 100.75", 101", 101.25", 101.5", 101.75", 102", 102.25", 102.5", 102.75", 103", 103.25", 103.5", 103.75", 104", 104.25", 104.5", 104.75", 105", 105.25", 105.5", 105.75", 106", 106.25", 106.5", 106.75", 107", 107.25", 107.5", 107.75", 108", 108.25", 108.5", 108.75", 109", 109.25", 109.5", 109.75", 110", 110.25", 110.5", 110.75", 111", 111.25", 111.5", 111.75", 112", 112.25", 112.5", 112.75", 113", 113.25", 113.5", 113.75", 114", 114.25", 114.5", 114.75", 115", 115.25", 115.5", 115.75", 116", 116.25", 116.5", 116.75", 117", 117.25", 117.5", 117.75", 118", 118.25", 118.5", 118.75", 119", 119.25", 119.5", 119.75", 120"
    • Metal
      Stainless Steel - 10 Gauge, Steel Prime - 10 Gauge, Prime Painted - 7 Gauge
    • Drilling
      Drilling and Thru Bolts Included, Drilling Not Required
    • About This Product
      • Retainer Material
        Steel
      • Door Type
        Single Door
      • Mounting
        Surface Mounted
    • Dimensions
      • Total Height
        2-1/4"
      • Width
        3/16"

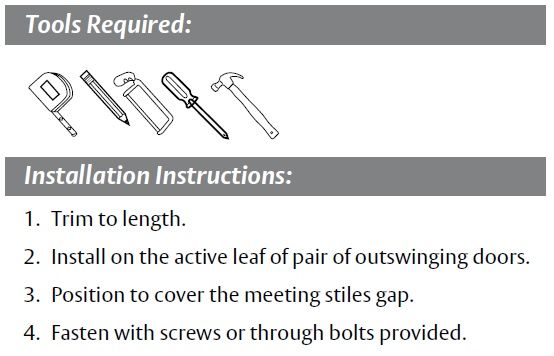

    • Installation
      • Installation Screws
        Thru-Bolts are included if drilling is supplied
    • Finishes
      • Finish
        Satin Stainless Steel (US32D)
    • Compliance Details
      • Compliance Details
        Fire Rated, UL Classified
      • Warranty
        5 Year Limited Warranty

    Click to Print

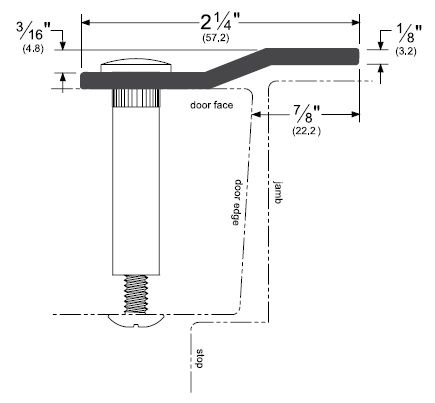

                 Stainless Steel or Steel Prime - 10 Gauge

    Product Specs for Steel Security Seal For Single, Outswing Door - 10 Gauge

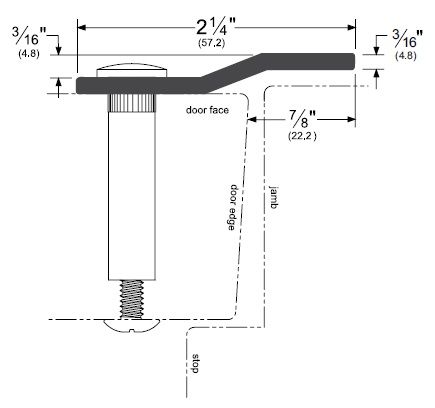

                            Painted Prime - 7 Gauge

    Product Specs for Steel Security Seal For Single, Outswing Door - 7 Gauge

    Click to View Ratings Explained

    Compliance Details for Security Seal for Single Outswing Door

    Finish Complies with the Following ANSI / BHMA Codes:
    • Stainless Steel (Polished): US32D / 630
