Zero #383FS Meeting Stile, Surface Mounted, Aluminum with Fire-Stop and Neoprene

Zero #383FS Meeting Stile, Surface Mounted, Aluminum with Fire-Stop and Neoprene
Zero International

This item has an extended lead time of 9 weeks - for a similar item see our Legacy Intumescent Overlapping Astragal

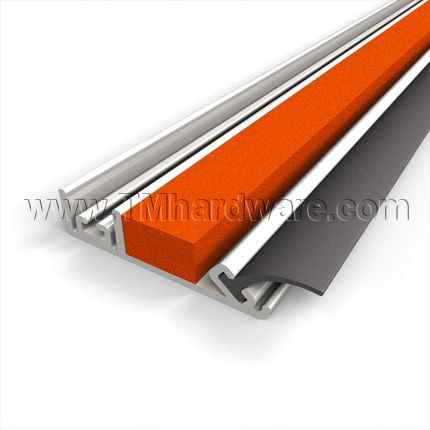

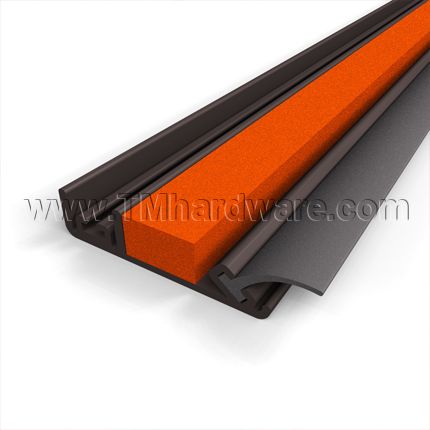

This Zero #383FS surface mounted aluminum meeting stile utilizes Intumet™ intumescent material which expands when heated to prevent the spreading of fire. Compression of the fire-stop and neoprene seals with the active door closes the gap between a pair of doors from the infiltration of fire, smoke, sound, light, drafts and insects. Available in two finishes and is custom cut to size.

SOLD BY THE FOOT

See tabs below for additional information
    • SKU
      ZR383FS-AA
    • Market price:$19.63
      • save 5%
    • Starting price: Price: $18.65 per foot


    This surface mounted aluminum meeting stile effectively seals the gap between a pair of doors from the infiltration of fire, smoke, sound, light, drafts and insects. Two seals, one neoprene and one Intumet™, an intumescent material that expands when heated to prevent the spreading of fire, compress with the active door for very effective gap closure,

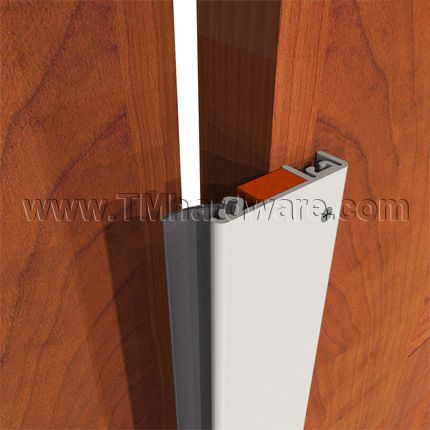

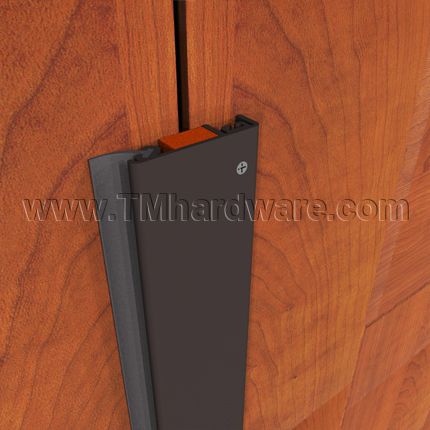

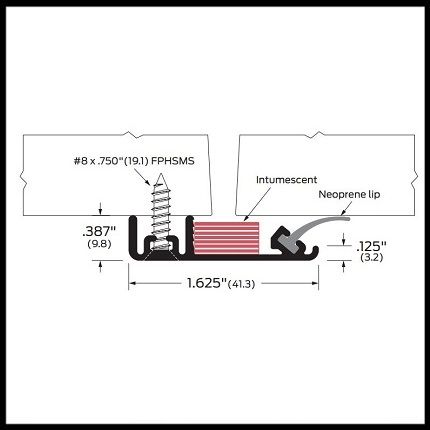

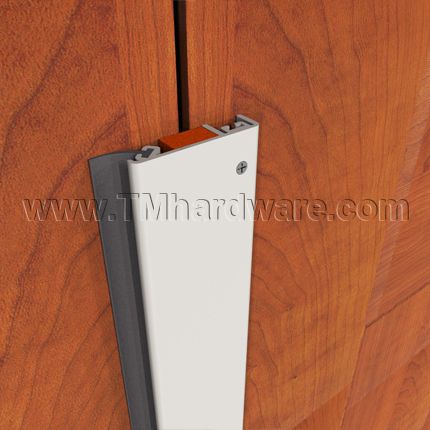

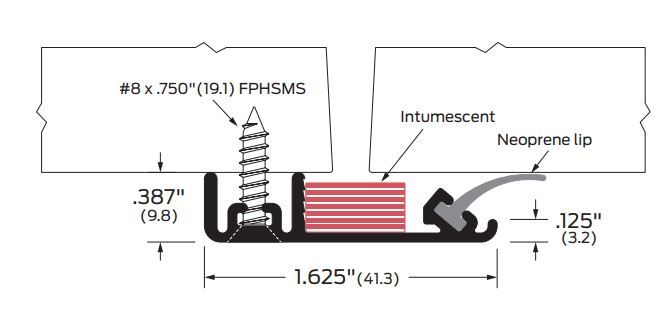

    The surface mounted application permits for a no-hassle installation process. The 1.625” aluminum casing is attached with screws to one of the doors, with the fire-stop seal placed centered between the doors. The neoprene lip seal extends over the opposite door for optimum closure (see product specs).

    Door Gasket is fitted with FS3003 INTUMET™ material. For more information, see Understanding Intumescent ­­­­Fire Stop Material.

    Installation screws provided. Screws are colored to blend unobtrusively into casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    Check out our Zero International #383 Surface Mounted Meeting Stile with Double Neoprene Seal.

      • SKU
        ZR383FS-AA
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      383FS
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Neoprene
      • Door Type
        Single active door in a double door set
      • Mounting
        Surface Mounted
    • Dimensions
      • Total Height
        1.625"
      • Width
        .387"
    • Installation
      • Installation Screws
        #8 x .750" (19.1) FPHSMS Provided
    • Finishes
      • Finish

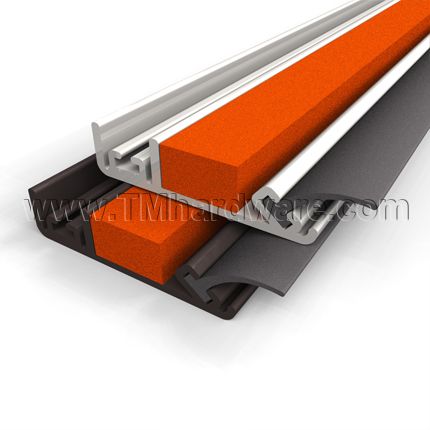

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Fire Rated, BHMA Certified
      • ANSI Designation
        R3B634
      • Warranty
        1 Year Limited Warranty

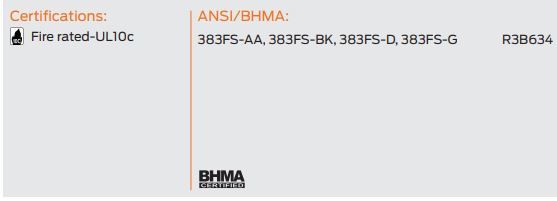

    compliance details for z383fs
