TMH Automatic Door Bottom, Surface Mounted, Heavy Duty, Double Neoprene, .562" Drop - QuickShip

TMH Automatic Door Bottom, Surface Mounted, Heavy Duty, Double Neoprene, .562" Drop - QuickShip

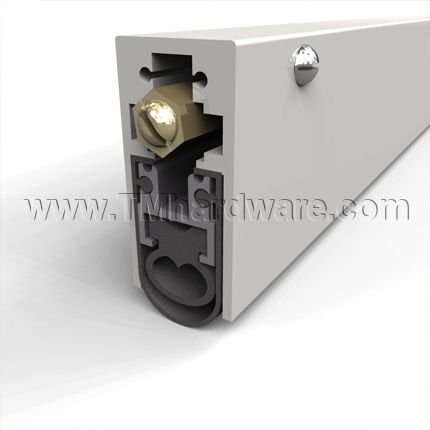

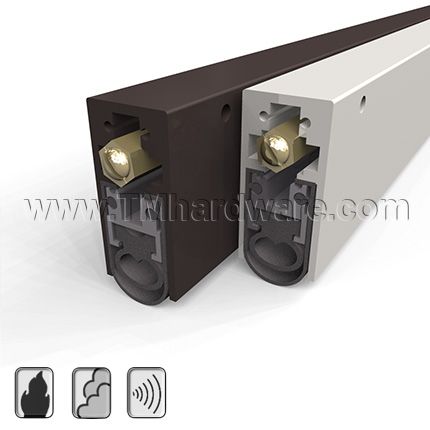

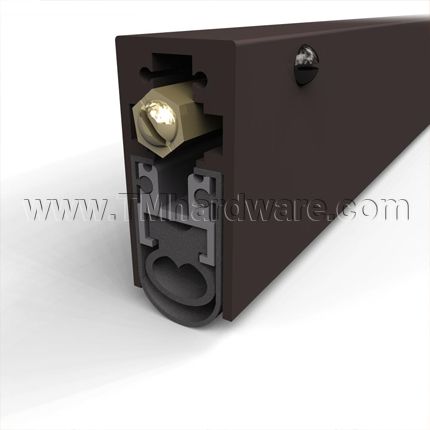

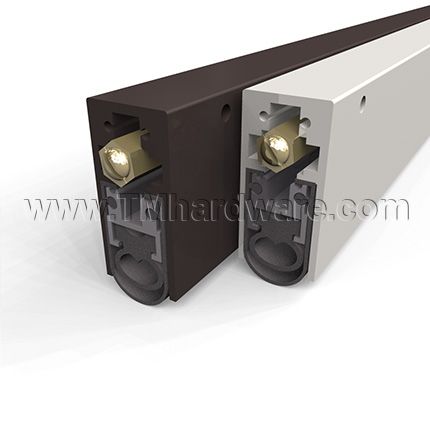

Product Specs of Automatic Door Bottom 367 Clear Anodized Aluminum Door Bottom 367 Aluminum Door Bottom 367 Applied on Interior Wooden Door, in Open Position Aluminum Door Bottom 367 Applied on Interior Wooden Door, in Closed Position Dark Bronze Anodized Door Bottom 367
0.0

This Surface Mounted, Heavy Duty, High Sound Automatic Door Bottom with a double solid neoprene seal offers the best sound control for high sound levels and will prevent infiltration of light, drafts and more. Made with high-quality mechanism that has been tested to 5 million opening and closings. Smoke and Fire-Rated and is available in two anodized finishes. Length is available in stock sizes. View more details in description tab below.

How to Order: Selecting Finish and Exact Size required will determine your total price. To determine sizing needed for your door bottom, see How to Meaure for an Automatic Door Bottom.

Available in stock sizes - 32" and 36" long ships within 1 Business Day! For custom sizes, see our Surface Mounted, Heavy Duty, Automatic Door Bottom #367.

Price: $122.14
Finish
Exact Length
Qty
Save to wishlist
Fast turnaround
Made in USA
SKU T367A32
Shipping See Shipping Tab Below
Description

This is a QuickShip product, available in stock sizes only - for custom sizes see our full product Surface Mounted Automatic Door Bottom #367.

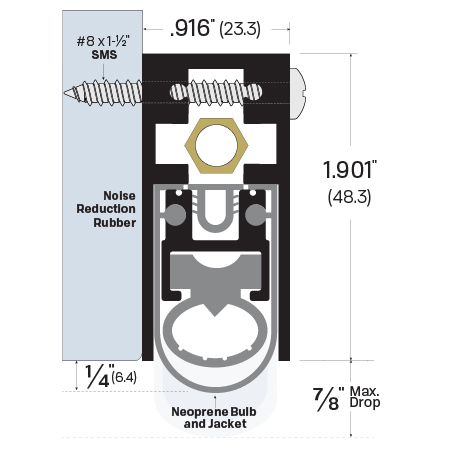

Dimensions:  Casing measures 1.901" by .916". Made of .093" thick aluminum.

Length: Available in stock lengths. Can be cut up to 2" on the field.

Seal:  Double solid neoprene bulb seal with maximum effective drop of .562".

Compliance Details: Rated for Fire, Smoke, Sound and is UL listed (see Product Data Tab for more details.)

Handing: Compatible with both right and left handed doors.

Installation:  Surface Mounted Aluminum Casing.  Installation instructions and screws included. Screws are colored to coordinate with casing.

Sizing:  To determine sizing, see How To Measure For An Automatic Door Bottom.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

If high sound control is not required, see our regular Surface Mounted Automatic Door Bottom.

How It Works

Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles!

See also About Automatic Door Bottoms.
