Pemko #R1.75F Modular Ramp, Aluminum 1.75" Height, 21.75" Length

Modular Ramps are designed to transition offset floor conditions and ease movement for those with limited mobility. This ramp ensures smooth transition for an offset of 1.75". Available in high quality Aluminum or Aluminum PemKote™ Non-Slip surface and optional, though recommended, Miter Returns (see below).

PRICED PER FOOT

See tabs below for additional information

Finish
Size (Inches)
Miter Return

Quantity

Add to compare

Modular Ramps are designed to transition offset floor conditions and ease movement for those with limited mobility. It is made of four components, which interlock to form one sturdy ramp. No welding is required for installation. This ramp is wheelchair compatible and meets the slope requirements for Americans with Disabilities Act (ADA). The grooved surface allows for a stronger grip, to prevent slipping.

Available in standard Aluminum Mill Finish or with Aluminum PemKote™ Non-Slip Surface. PemKote™ is highly recommended for all thresholds, particularly for ones placed in exterior conditions where moisture may be present.

Miter Return Ends Pieces: The use of Miter Returns are recommended to seal the sides of the ramps. However, the miter returns do not meet the ADA slope requirements and are not ADA compliant. If miter returns are not used, it is recommended to fill and feather the threshold ends with grout - do not leave the ramp ends open.

Widths Available: Standard widths can be purchased through our website, however, up to 185" can be purchased through our office. For details and pricing, please contact us or call us at 845-388-1300.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

Standard Aluminum product is guaranteed for 5 years against defects in material and workmanship.
PemKote™ finish carries a 10 year guarantee.

Click here to return to view our 2" Offset Wheelchair Compatible Modular Ramp.

- SKU
  PKR1.75FA
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
R1.75F, R1.75FMR

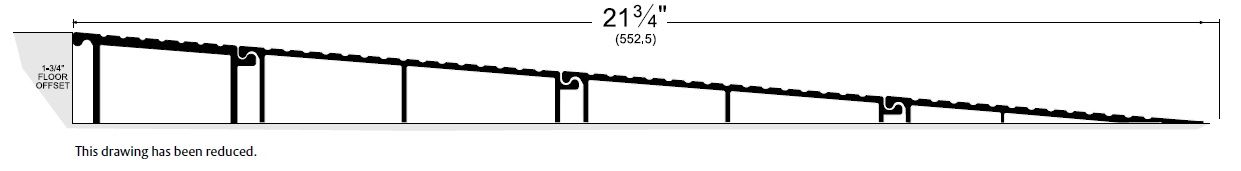

Dimensions
- Offset Height
  1.75" Height
- Width
  21.75" Width
- Length
  Custom Cut to Size
Ramp Design
- Material
  Aluminum
- Ramp Component
  Ramp End
- Ramp Type
  Flush Application
- Installation
  Supplied with #10 Stainless Steel wood screws. Expansion shields can be purchased by contacting our office. This ramp has 4 screws per foot. (Ex: a 36" width ramp will have 3 rows of 4 screws, with a total of 12 screws).
- Drilling
  Drill holes are provided
Additional Options
- Miter Return
  None Required, Aluminum Miter Return (#R1.75FMRA), PemKote™ Miter Return (#R1.75FMRAK)
Finishes
- Finish
  Mill Finish Aluminum (US27), Aluminum PemKote™
Compliance Details
- Compliance Details
  Fire Rated, ADA Compliant, BHMA Certified
- Warranty
  5 Year Limited Warranty, PemKote™ Finish Carries a 10 Year Guarantee
