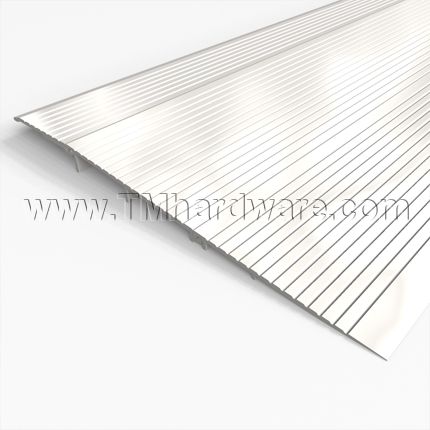

Pemko #R1.75OS Modular Ramp with Top Plate, Aluminum 1.75" Height, 24.875" Length
Modular Ramps are designed to transition offset floor conditions and ease movement for those with limited mobility. This ramp compensates for a 1.75" floor offset and has a top plate to ensure a smooth transition. Available in high quality Aluminum or Aluminum PemKote™ Non-Slip surface and optional, though recommended, Miter Returns (see below).
PRICED PER FOOT
Modular Ramps are designed to transition offset floor conditions and ease movement for those with limited mobility. This ramp compensates for a 1.75” floor offset and has a short or long top plate which ensures smooth transition and protects the upper floor surface. This ramp is wheelchair compatible and meets the slope requirements for Americans with Disabilities Act (ADA). The grooved surface allows for a stronger grip, to prevent slipping. Ramp is made of high quality, thick aluminum that will keep its shape and not buckle over time, even through constant usage.
Finishes: Available in standard Aluminum Mill Finish or with Aluminum PemKote™ Non-Slip surface. PemKote™ is highly recommended for all thresholds, particularly for ones placed in exterior conditions where moisture may be present.
Miter Return Ends Pieces: The use of Miter Returns are recommended to seal the sides of the ramps (see detailed images). However, the miter returns do not meet the ADA slope requirements and are not ADA compliant. If miter returns are not used, it is recommended to fill and feather the threshold ends with grout - do not leave the ramp ends open.
Ramp has a total of 5 components which are easily interlocked and welding is not required for installation.
Width Available: Standard widths can be purchased through our website, however, up to 185" can be purchased through our office. For details and pricing, please contact us or call us at 845-388-1300.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPNR1.750S, R1.750SMR, R1.750SS, R1.750SSMR
- Dimensions
-
Offset Height1.75" Height
-
Width24.875" Width
-
LengthCustom Cut to Size
-

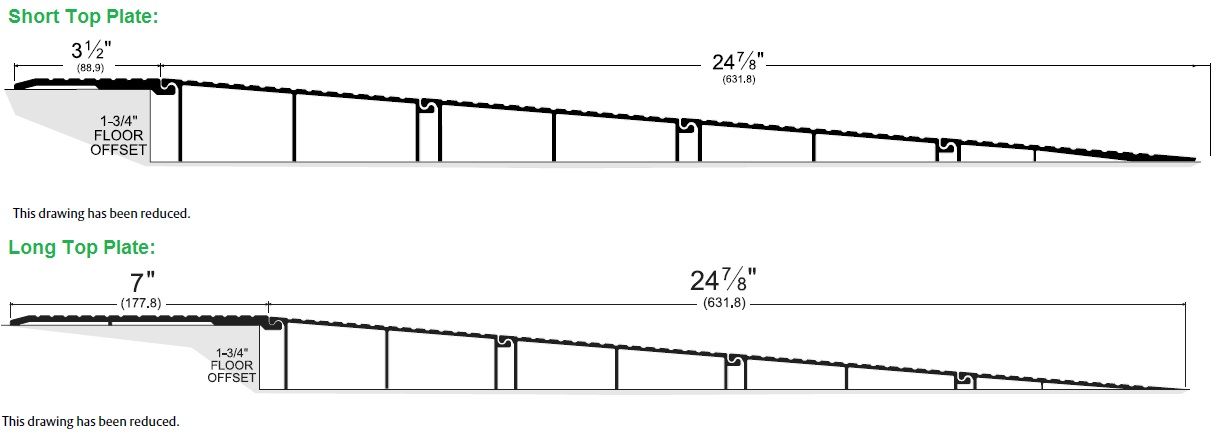

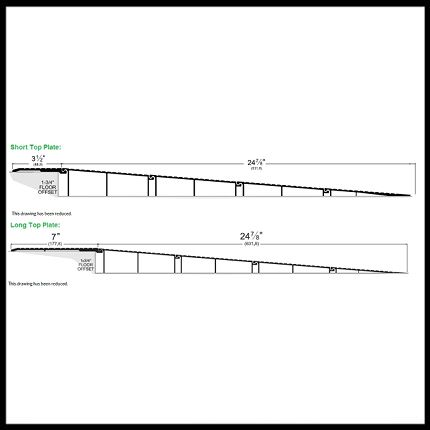

Top Plate3.5" Short Top Plate, 7" Long Top Plate
-
Short Top Plate SpecificsPlate has a length of 3.5”. The ramp component length is 24.875”, making it a total 28.375" ramp length. Ramp with short top plate has 5 screws per foot. (Ex: a 36" width ramp will have 3 rows of 5 screws, with a total of 15 screws).
-
Long Top Plate SpecificsPlate has a length of 7”. The ramp component length is 24.875”, making it a total 31.875” ramp length. The large length of the plate works well with floor closers. Ramp with long top plate has 6 screws per foot. (Ex: a 36" width ramp will have 3 rows of 6 screws, with a total of 18 screws).
-
- Ramp Design
-
MaterialAluminum
-
Ramp ComponentRamp End
-
Ramp TypeTop Plate Application
-
InstallationSupplied with #10 Stainless Steel wood screws.
-
DrillingDrill holes are provided
-
- Additional Options
-
Miter ReturnNone Required, Aluminum Miter Return (#R1.75OMRA), PemKote™ Miter Return (#R1.75OMRAK)
-
- Finishes
-
FinishMill Finish Aluminum (US27), Aluminum PemKote™
-
- Compliance Details
-
Compliance DetailsFire Rated, ADA Compliant, BHMA Certified
-
Warranty5 Year Limited Warranty, PemKote™ Finish Carries a 10 Year Guarantee
-
