PemkoHinge™ #FM_SLF138, Full Mortised with Short Leaves for 1-3/8" Commercial Doors, Continuous Hinge

This Standard Full Mortised Continuous PemkoHinge is designed for doors with a thickness of 1-3/8". This hinge can be used in a commercial setting since there are more bearings on this hinge than our standard 1-3/8" residential hinge.

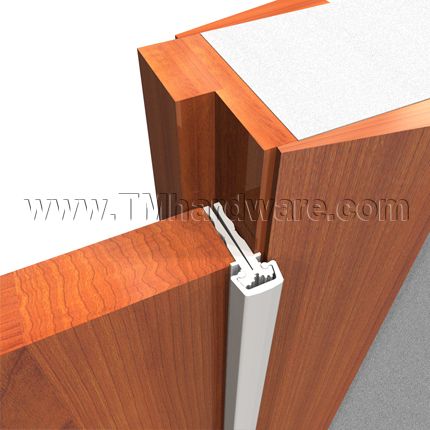

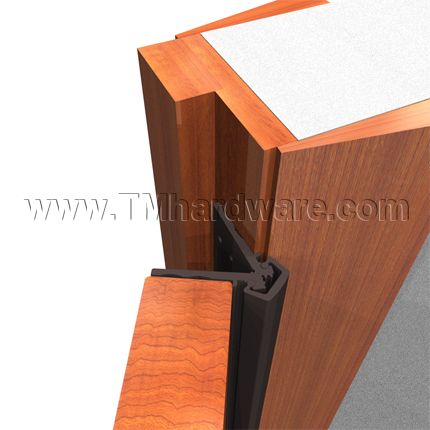

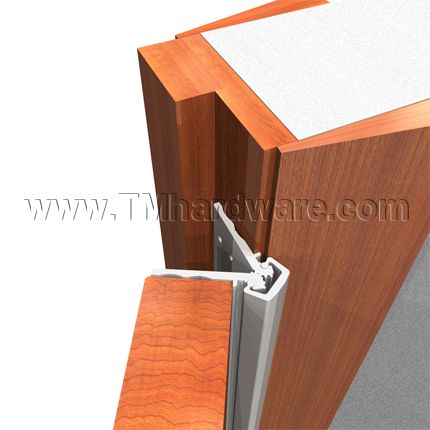

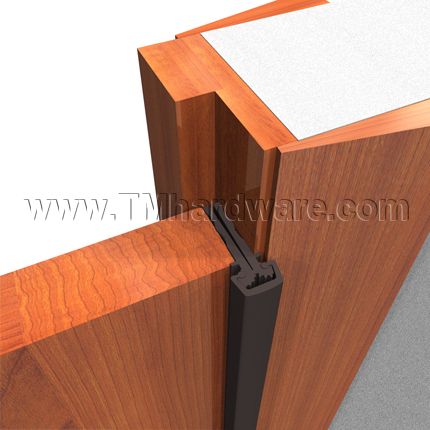

This hinge is intended for new door applications. It is Full Mortised, with one leaf mounted to a rabbet in the door frame and the other leaf applied along the door edge.

Attributes:

• Efficiency: With a continuous hinge, typical alignment problems (such as door sag and binding) are eliminated.
• Uniformity: The continuous hinge distributes load stress uniformly along the full length of the door and frame.
• Durability: The gear design of the continuous hinge ensures symmetrical operation of each leaf which extends the life of the hinge and door.
• Low Operating Force: 1⁄2 lb. or less operating force required to operate most doors, regardless of size.
• Code Compliance: Low operating force feature makes continuous hinges ideal for doors used by the physically challenged.
• Steel Frame Compatibility: The continuous hinge, when installed on standard steel doors and frames, requires no additional reinforcement. However, hinge preps must have fillers installed for proper operation.
• Security: A high degree of security can be achieved for exterior openings or restricted spaces by using a continuous hinge. With the geared construction and the full-length channel cap, the common gap between the door and frame is sealed, which provides security against prying.
• Safety: In addition, the continuous full-height hinge cap protects against pinching fingers in doors in public areas, particularly those where children are present.
• Privacy: Sight proof design of the continuous hinge provides privacy for lavatories, executive offices, or file rooms.

Design Features:

• PemkoHinge™ has increased critical stress points of the hinge leaf extrusions providing additional strengths and rigidity to the completed product.
• PemkoHinge™ bearing design eliminates premature wear, guarantees proper alignment, and requires fewer bearings to carry more weight. The bearing is produced for the manufacturer using a chemical composition and injection process that provides a stronger, more accurately formed bearing.
• PemkoHinge™ is designed with inter-meshing gear segments in the hinge which provide 50% more bearing surface resulting in less wear.
• PemkoHinge™ goes through the anodizing process after completing all machining. This means the machined aluminum surfaces that are in direct contact with the bearing have a smoother, harder surface, thereby reducing wear.
• PemkoHinge™ maintains uniform bearing spacing for the full length of the hinge even when lengths exceed 10'.
• PemkoHinge™ uses #12-24 size fasteners instead of #10. (#12 Tek fasteners available upon request through our office).
• PemkoHinge™ commercial models are ideal for use on lead lined doors (i.e. hospital X-ray rooms), without requiring special screw locations.

Additional Options Available - See Options Tab for more details:

• Hospital Tip
• FirePins for Fire Rated Assemblies

Stock Sizes: Stock sizes include 83", 85" and 95"- these sizes will not be charged a cutting fee. If required select from options above.

Fasteners: Supplied with standard fastener kit. Replacement Kit or individual screws can be purchased through our office. TORX / TEK screws can also be purchased through our office.

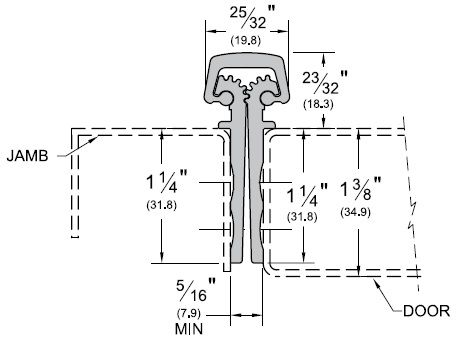

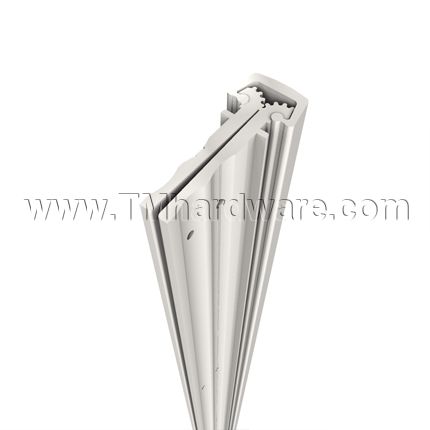

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 10 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

For standard doors, see our Commercial Grade Full Mortised Pemko Continuous Hinges.
