Zero #8729 Rabbeted Threshold, 6.625" (W) Aluminum with Neoprene and Double Thermal Break, .875" H
This Zero #8729 smoke rated doorway threshold is fitted with a rubber seal and PVC thermal break to provide you with a top-quality seal and protection. It will prevent dust, drafts and water infiltration and increase insulation. Available in aluminum mill finish with options of full body strength. Length is custom cut to size.
PRICED PER FOOT
Threshold is fitted with a PVC break which reduces heat loss and prevents frost build up on the interior surface of the saddle.
Width: 6.625"
Door Clearance Height: .625"
Total Height: .875"
Length: Custom cut to size
Thickness: .187"
Saddle Material: Aluminum Mill Finish
Seal: Solid Neoprene EBF (Extruded Bulb and Finger) Seal. Protruding finger compensates for misalignment of door, due to natural warping or poor installation of door. Neoprene is a long lasting material that remain effective in extreme temperatures.
Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.
Drilling: Threshold is supplied drilled for easy installation
Additional Options: Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals and industrial facilities.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy
Click here to see our Zero International #8724 Utility Threshold with Double Thermal Break.
-
QuickShipNo
-
ManufacturerZero International
-
MPN8729
-
OptionsStandard Aluminum, Full Body Strength
- Dimensions
-
Overall Height.875" Height
-
Interior Height.5" Height
-
Overall Width6.625" Width
-
Interior Width3.5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.187" Thick
-
- Product Design
-
Threshold TypeRubber Seal / Bumper Threshold, Thermal Break Threshold
-
Seal TypeNeoprene Seal
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27)
-

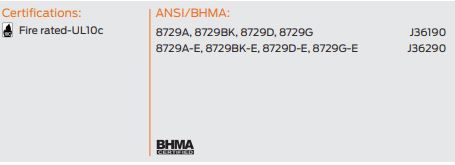

- Compliance Details
-
Warranty1 Year Limited Warranty
-
