Zero #565B Rabbeted Threshold, Heavy Duty Bronze with Neoprene Gasket, .875" H

Zero #565B Rabbeted Threshold, Heavy Duty Bronze with Neoprene Gasket, .875" H
Zero International

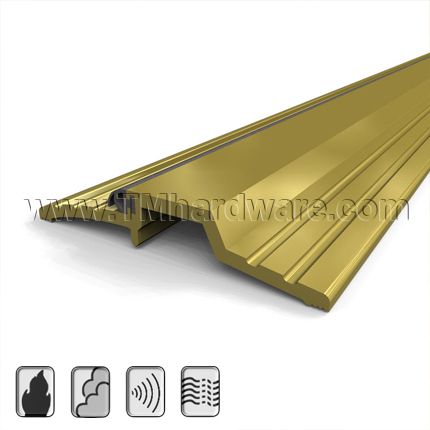

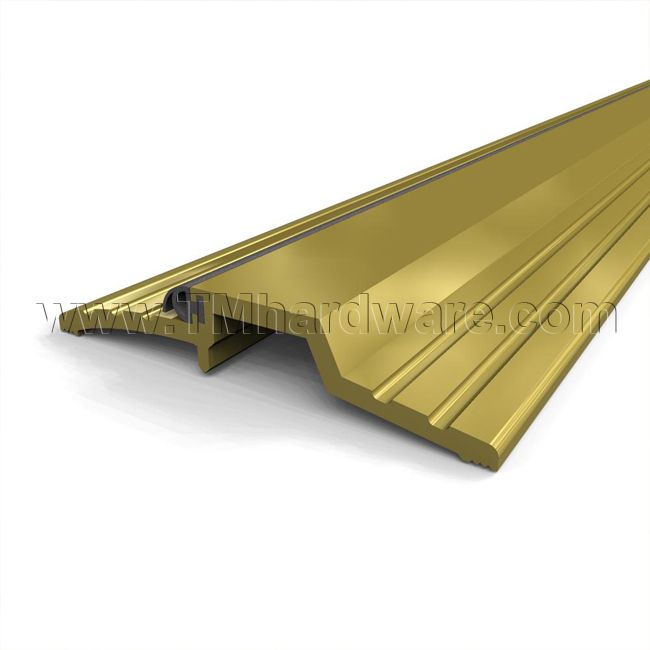

This Zero #565B door threshold is is fitted with a neoprene stop which will ensure solid protection from sound, air infiltration, smoke and fire. It is crafted from heavy duty material to ensure quality performance. Custom cut to size.

PRICED PER FOOT

This product can also be purchased in Aluminum, see our Heavy Duty Aluminum or Bronze with Neoprene Gasket.

See tabs below for additional information
    • SKU
      ZR_565B_
    • Market price:$213.21
      • save 10%
    • Starting price: Price: $191.89 per foot


    This product can also be purchased in Aluminum, see our Heavy Duty Aluminum or Bronze with Neoprene Gasket.

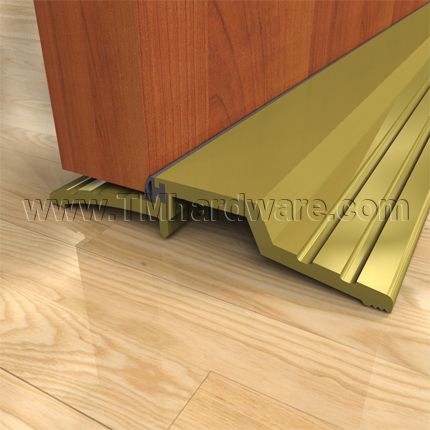

    Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal. Saddle design has a flat top surface which works well with a Surface Mounted Automatic Door Bottom.

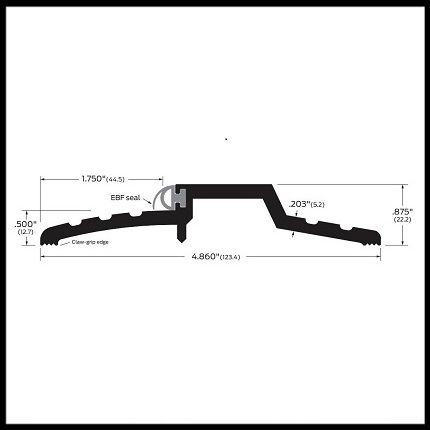

    Total Width: 4.860"

    Width Under Door: 1.75"

    Required Door Clearance: .5"

    Total Height: .875"

    Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)

    Thickness: .203"

    Finish: Bronze mill finish (Oil Rubbed Bronze can also be purchased through our office at an additional 49% of the standard bronze price)

    Compliance Details: Positive Pressure Fire Rated, Smoke Rated, ITS Warnock Hersey Listed

    Seal: Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

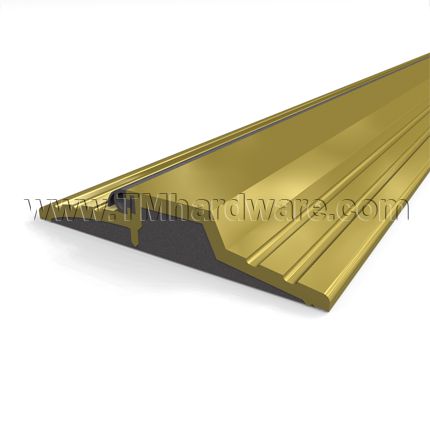

    Additional Options: Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

    Please note, the images are for illustration purposes. They are not actual photos. Therefore, actual color may vary and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    For a threshold with a lower profile, see our Zero International #564 Soundproof Rabbeted Threshold
