Pemko #RVAR Ramp Assembly with Top Plate, 10" Length for Various Heights

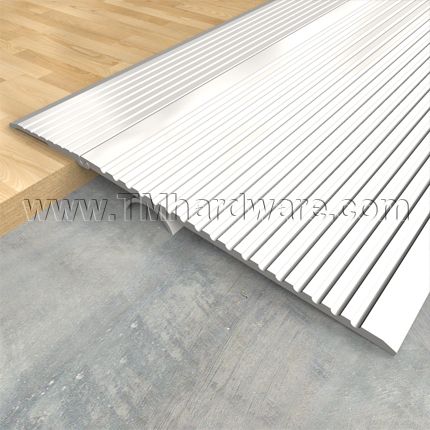

Modular Ramps are designed to transition offset floor conditions and remove tripping hazards. This 'Variable' ramp assembly is used to accommodate various or irregular heights. It can be applied to offsets between .5" and 1.25". Available in Aluminum Mill Finish or PemKote Non-Slip Aluminum. Ramp is ADA Compliant, see note below, and is custom cut to size.

PRICED PER FOOT

See tabs below for additional information

Finish
Top Plate
Size (Inches)

Quantity

Add to compare

Modular Ramps are deisgned to transition offset floor conditions which remove tripping hazards and provides ease of movement for those with limited mobility. This convenient ramp combines various components to create an assembly that can be applied to various offset heights. Key features include:

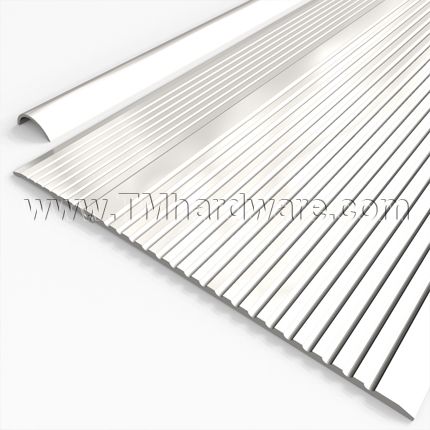

Components: Assembly is made of a Short or Long Top Plate, 10" Variable Plate and Semi-Circular Support for Variable. Support is needed for offsets greater than .75" only. Components are made of high quality aluminum that will last through many usages and not buckle.

ADA Compliance: This assembly meets the 1:8 Maximum Slope Allowance of ADA Regulations for Existing Buildings. However, it may require a variance from some state building codes. Assembly is ideal for use in cross traffic corridors where minimal ramp projection may be required and steeper slope may be allowed.

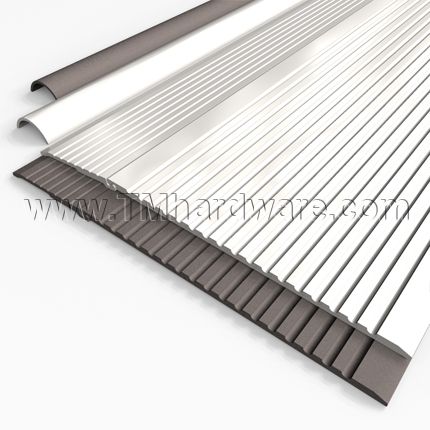

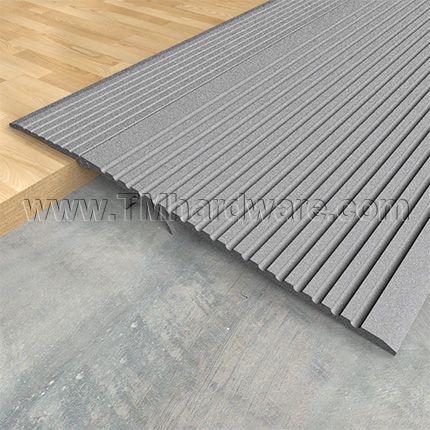

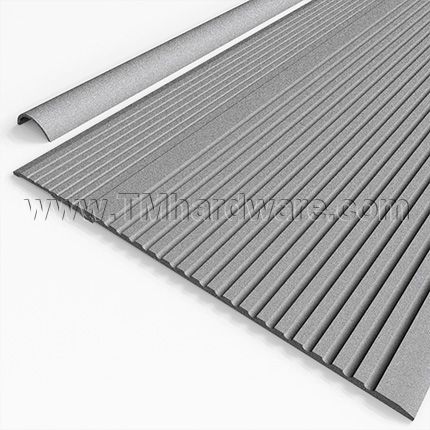

Finishes: Available in standard Aluminum Mill Finish or with Aluminum PemKote™ Non-Slip surface. PemKote™ is highly recommended for all thresholds placed in exterior conditions where moisture may be present. For additional non-slip protection, the plate is grooved which creates traction.

Drilling: Ramp components are not pre-drilled. Due to the variance in angles, it must be drilled on the field. To properly install, apply the support under the variable plate after the assembly is in place. Drill and anchor through both components.

Available Widths: Standard Widths can be purchased through our website, however, lengths up to 185" can be purchased through our office. For details and pricing, please contact us or call us at 845-388-1300.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

Aluminum Mill Finish has a 5 year guarantee against defects in material and workmanship.
PemKote Non-Slip Finish carries a warranty of 10 years.
Click here to view our Full Warranty Policy.

- SKU
  PKRVARIOSS/A
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
RVARI00S, RVARI
Dimensions
- Offset Height
  Custom up to 1.25"
- Width
  10" Width
- Length
  Custom Cut to Size
- Top Plate

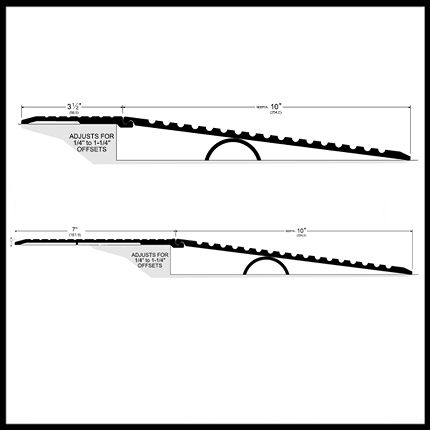

  3.5" Short Top Plate, 7" Long Top Plate
- Short Top Plate Specifics
  Plate has a length of 3.5”. The ramp variable length is 10”, making it an approximate 13.5” length, depending on height of offset. Ramp with short top plate requires 2 screws per foot. (Ex: a 36" width ramp will have 3 rows of 2 screws, with a total of 6 screws).
- Long Top Plate Specifics
  Plate has a length of 7”. The ramp variable length is 10”, making it an approximate 17” length, depending on height of offset. Ramp with short top plate requires 3 screws per foot. (Ex: a 36" width ramp will have 3 rows of 3 screws, with a total of 9 screws).
Ramp Design
- Material
  Aluminum
- Ramp Component
  Ramp End
- Ramp Type
  Top Plate Application
- Installation
  Ramp is supplied with #10 Sheet Metal Screws. Ramp components are not pre-drilled. Due to the variance in angles, it must be drilled on the field. To properly install, apply the support under the variable plate after the assembly is in place. Drill and anchor through both components.
- Drilling
  Drilling holes NOT provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Aluminum PemKote™
Compliance Details
- Compliance Details
  ADA Compliant, Fire Rated, BHMA Certified
- Warranty
  5 Year Limited Warranty, PemKote™ Finish Carries a 10 Year Guarantee

Click to Print Product Specs

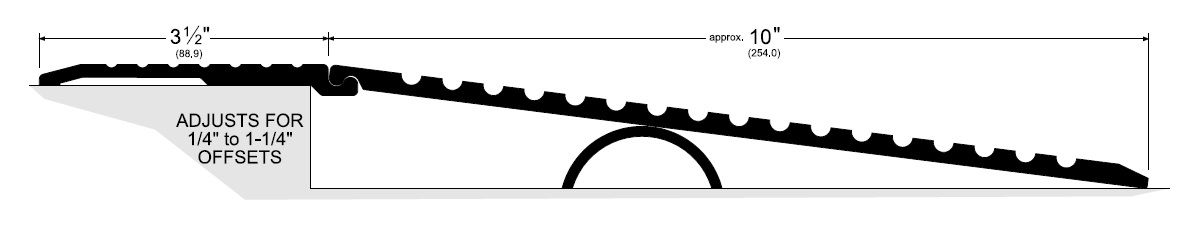

3.5" Top Plate:

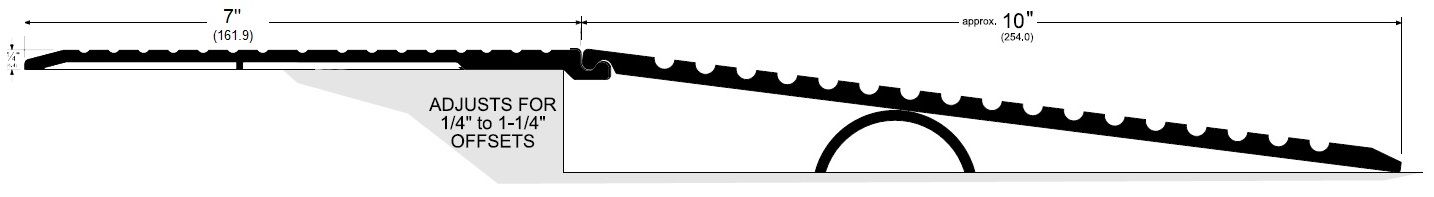

7" Top Plate:
