Rockwood 107x73B/73BL Concealed Mount Pull Plate Sets

Rockwood 107x73B/73BL commercial grade concealed mount pull plate sets include a pull plate and a push plate. This concealed mount pull plate set is ideal for use on architectural doors in high traffic areas. Many variations of material, bar diameter sizes, plate sizes and finishes are available for any door of your choice. For details and options, see below.

PRICED PER SET

See tabs below for additional information

Quantity

Add to compare

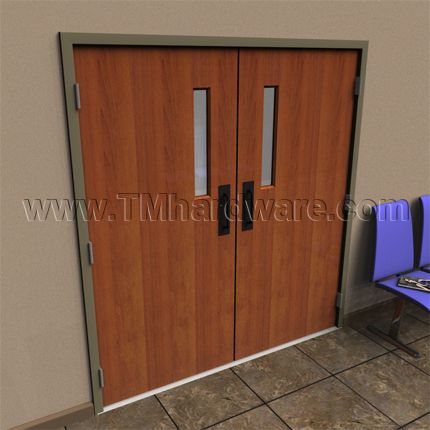

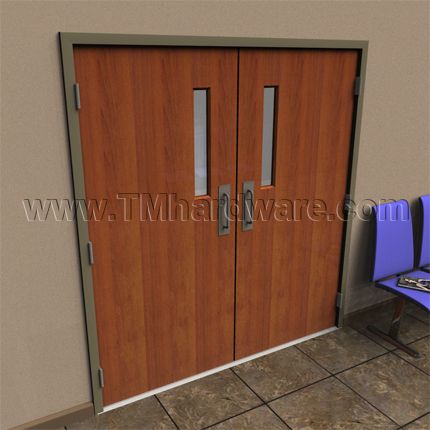

Rockwood 107x73B/73BL concealed mount pull and push plate sets is comprised of architectural grade and long lasting products. They are all for doors with a 1.75" thickness, but can be custom made for any door of your choice. This door pull plate set is great for all standard doors, especially those in high traffic areas.

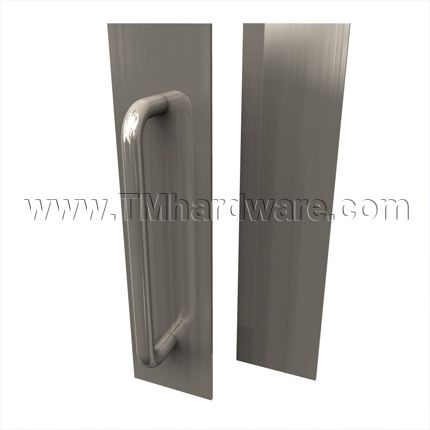

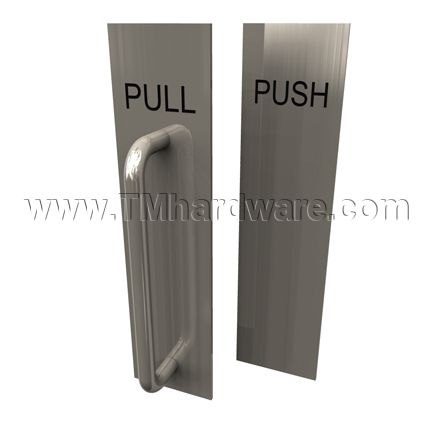

Concealed Mount Pull Plate Set: Set includes a door pull plate and an R73B push plate with stud welded lugs for concealed mounting.

Materials: Stainless Steel

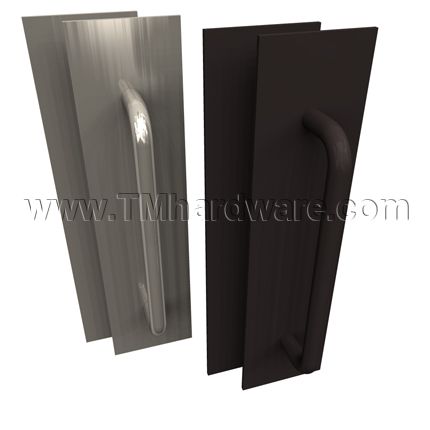

Finishes: Dark Oxidized Satin Bronze, Equivalent; Stainless Steel, Satin; Satin Microshield Coated (All finishes comply with BHMA codes. See Product Data for compliance details.)

A Note on Finishes: Dark Oxidized Satin Bronze, equivalent-This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Microshield Coated-The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.

Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

Features: This set has a concealed mounting system with no perimeter screw holes on either plate.

Options: For details and pricing, see options tab.

Engraving
Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)

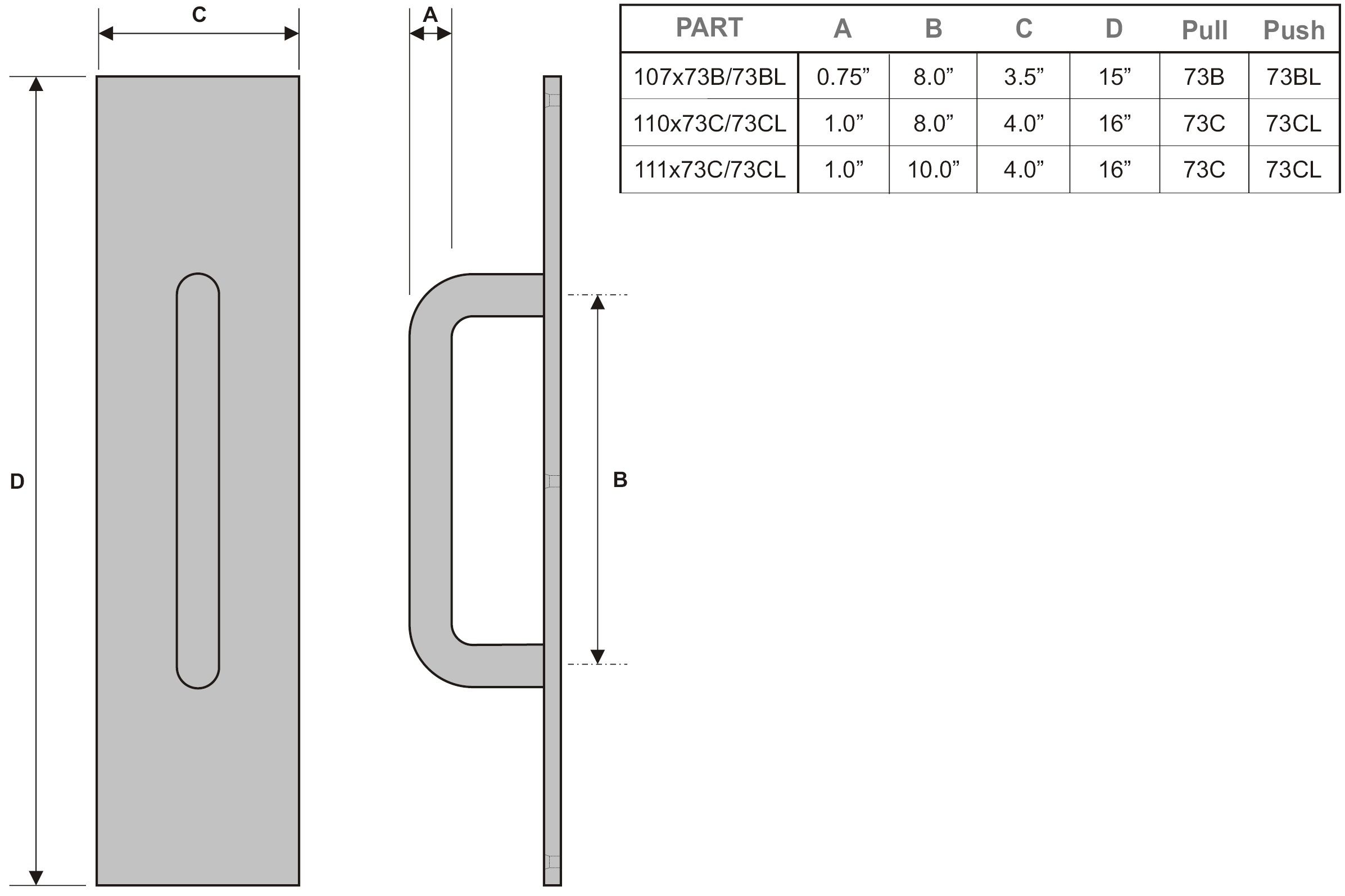

Sizes: 3 sizes (chart)

Product #	Pull Size	Pull CTC	Pull Plate	Push Plate	Overall Size	Weight
107x73B/73BL	3/4" diameter	8"	73B	73BL	3.5" x 15"	5.8 lbs

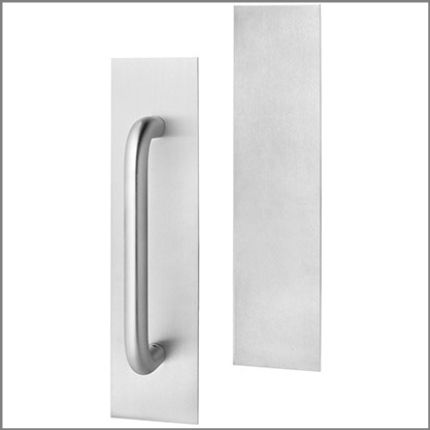

110x73C/73CL	1" diameter	8"	73C	73CL	4" x 16"	8.0 lbs
111x73C/73CL	1" diameter	10"	73B	73CL	4" x 16"	8.5 lbs

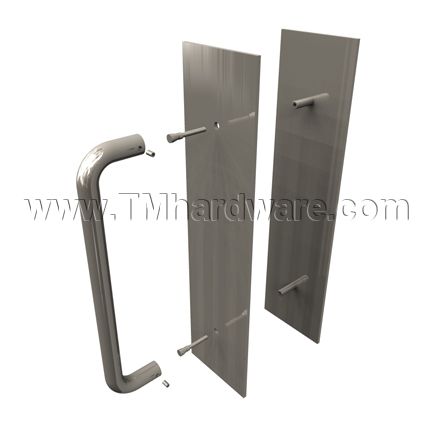

Fastener: Stud welded lugs are permanently attached to the back of the 1/8" push plates. Cone head machine screws attached to door pull.

Custom fasteners available for doors other than 1.75" thick. For details and pricing please contact us or call us at 845-388-1300.

Priced per set.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in workmanship and materials.

Click here to view our Full Warrany Policy.

Click here to view all our Rockwood 110x70B Heavy Weight Pull Plate.

- SKU
  RK107X73B/73BL_US32D
QuickShip
No
Manufacturer
Rockwood Company
MPN
107x73B/73BL, 110x73C/73CL, 111x73C/73CL
Cut-Out
None, CFC, CFTT
Finishes
- Finish
  Oil Rubbed Bronze, Equiv. (10BE), Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin

Click to Print

To order products with more than one option, please contact us or call us at 845-388-1300.

ENGRAVING
	Standard engraving words are: Push/Pull/Men/Women, 3/4" high condesed block letters with enamel fill. Other letters and styles are available upon order. To order standard or custom engravings, and for details and pricing please contact us or call us at 845-388-1300. Price per engraving: $16.00 ($19.20 for Stainless Steel) Adhesive mounting is available for $6.40

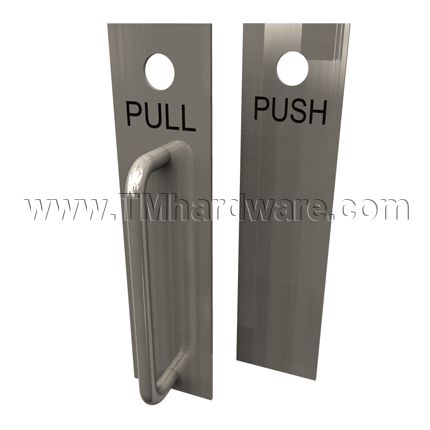

CYLINDER(CFC)/ TURN KNOB(CFTT) CUTOUTS

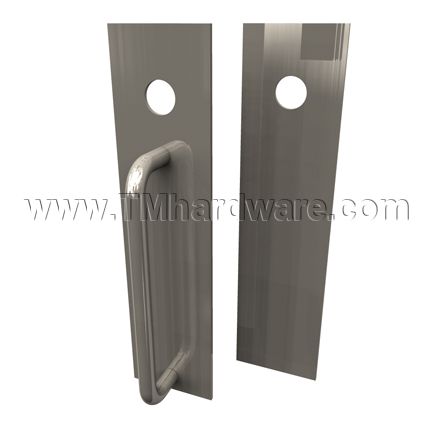

	Cut-Outs will be applied to both the pull plate and the push plate. Cylinder Cutouts are holes cut out from the top of the plate for cylinders (key locks) or thumbturns. Turn Knob Cutouts are holes cut out from the top of the plate for a turn knob to be installed. Price of cutout per set: $4.00

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

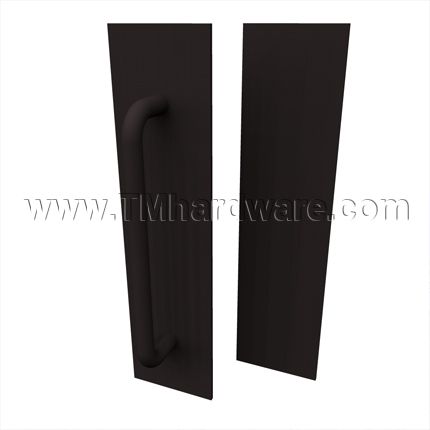

Dark Oxidized Satin Bronze, Equivalent-US10BE/613E

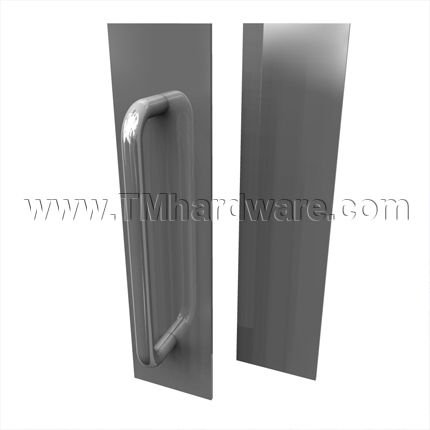

Satin Stainless Steel-US32D/630
Satin Microshield Coated-US32DMS

Pull Plate complies with ANSI A156.6: J406
