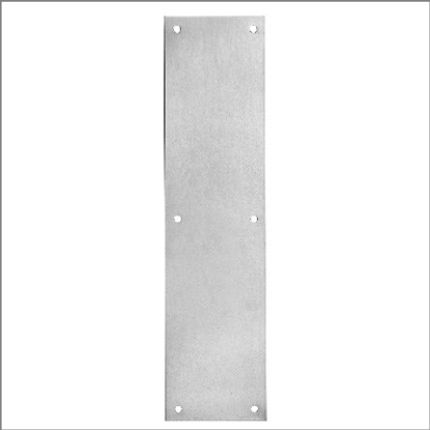

Rockwood 73 Push Plate, Square Corner, Extra Heavy Duty, .125" Thick

Rockwood's 73 extra heavy duty and square cornered high quality push plate. Beveleged Edges for added safety. Available in many sizes, weights and finishes. See details and options below.

PRICED PER PIECE

Some variants qualify for QUICK SHIP! See shipping tab for details

See tabs below for additional information
    • SKU
      RK73A US28
    • Market price:$44.60
      • save 10%
    • Starting price: Price: $40.14 per item


    Rockwood's 73 commercial grade and long lasting push plate, is extra heavy duty (.125" thick), square cornered and contains a beveled edge. This push plate is great for use on any door of your choice, particularly doors in high traffic areas.

    Materials: Aluminum, Brass, Bronze, Stainless Steel

    Finishes: Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Polish Chrome; Satin Chrome; Clear Anodized Aluminum; Polished Stainless; Satin Stainless; Stainless Steel Microshield;  Satin 316 Alloy (All finishes comply with BHMA codes. See Product Data for compliance details.)

    A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32​ - Enhanced corrosion resistance of stainless steel. 316 Alloy-Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution.

    Custom finishes available. For details and pricing please contact us or call us at 845-338-1300.

    Options: For details and pricing, see options tab.

    • TORX - security torx screws
    • SA - self adhesive mounting-1/16" double face foam tape (no screw holes)
    • Engraving
    • Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)

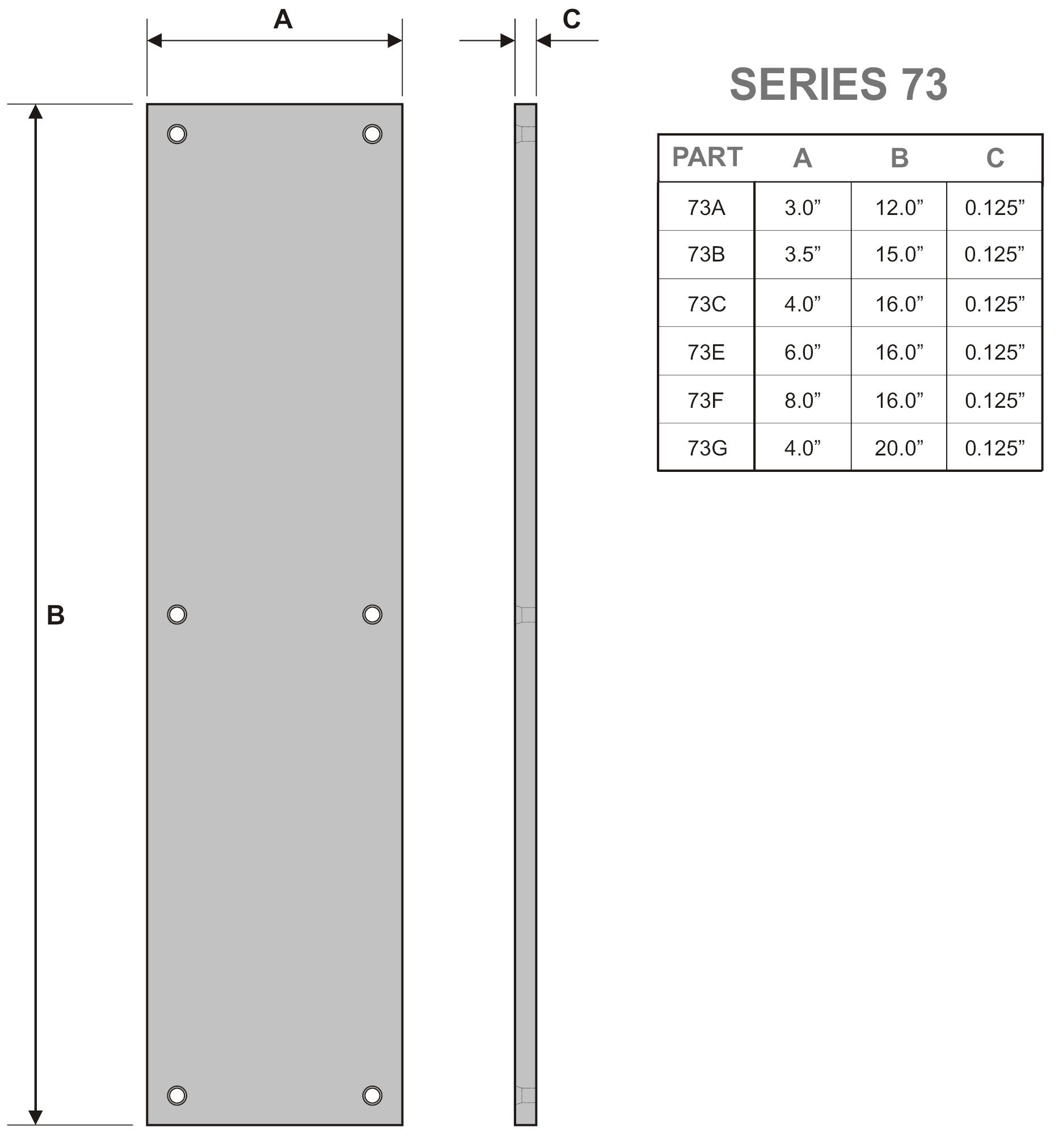

    Sizes: 6 availabe sizes (chart)

      Product #   Size (Inches)   Weight
      73A   3 x 12   1.7 lbs
      73B   3-1/2 x 15   2.1 lbs
      73C    4 x 16   2.5 lbs
      73E
      6 x 16   3.8 lbs
      73F   8 x 16    5.0 lbs
      73G   4 x 20   3.2 lbs

    Fastener: #6 x 5/8" OH SMS. Included.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warrany Policy.

    Click here to view Rockwood's 73RC Round Cornered Push Plates with .125" Thickness.

      • SKU
        RK73A US28
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      73
    • Size
      3" x 12" (73A), 3-1/2" x 15" (73B), 4" x 16" (73C), 6" x 16" (73E), 8" x 16" (73F), 4" x 20" (73G)
    • Options
      None, 6 TORX Screws, SS, 6 TORX Screws, Brass, Adhesive Mounting, 1"-12", Adhesive Mounting, 12"-48", Cylinder Cutout, Turn-knob Cutout
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Oil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D), Satin Stainless Steel (US32D), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished, 316 Alloy Stainless Steel, Satin, Clear Anodized Aluminum (US28), Microshield Stainless Steel, Satin



    To order products with more than one option, please contact us or call us at 845-338-1300.

     TORX SCREWS

    Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used.

    Push plate needs a total of six screws.

    Size: #6 x 5/8" Oval Head SMS

    Priced per 6 screws: Stainless Steel-$4.80      Brass Plated-$16.20

     SELF-ADHESIVE MOUNTING

    1/16" double face foam tape. No screw holes on the plate. This tape is applied by the buyer for easy installation.

    Price: Up to 12" Height-$15.00     12"-48" Height-$32.00

     ENGRAVING

    Standard engraving words are: Push/Pull/Men/Women, 3/4" high condesed block letters with enamel fill. Other letters and styles are available upon order. To order standard or custom engravings, and for details and pricing please contact us or call us at 845-352-3200.

    Price per engraving: $16.00 ($19.20 for Stainless Steel)

    Adhesive mounting is available for $6.40

     CYLINDER(CFC)/ TURN KNOB(CFTT) CUTOUTS

    Cylinder Cutouts are holes cut out from the top of the plate for cylinders (key locks) or thumbturns.

    Turn Knob Cutouts are holes cut out from the top of the plate for a turn knob to be installed.

    Price per cutout: $4.00



    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Satin Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Chrome-US26/625
    • Satin Chrome-US26D/626
    • Clear Anodized-US28/628
    • Stainless Steel, Polished-US32/629
    • Stainless Steel, Satin-US32D/630
    • Polished 316 Alloy-US32316
    • Satin 316 Alloy-US32D316
    • Stainless Steel Microshield-US32DMS

    ​Push Plate complies with ANSI A156.6: J301


    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Stocked Items: 3 - 4 Days (please call to confirm stock)
    Non Stocked Items: 10 - 14 Business Days
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Freight Items: Orders containing items sized 90" - 96" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 97" and above have an oversize surcharge of $250.00.
      • Orders totals above $2,000.00 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • Products are custom made to order and are not returnable.
      • We are committed to your satisfaction. As a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within ten (10) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
