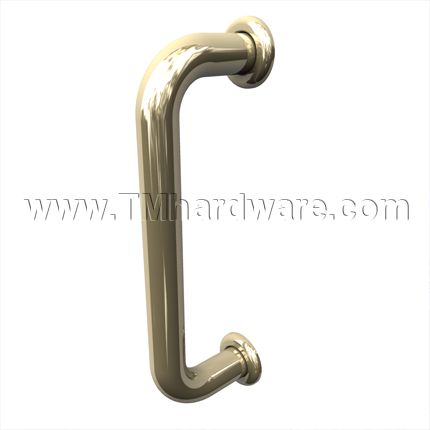

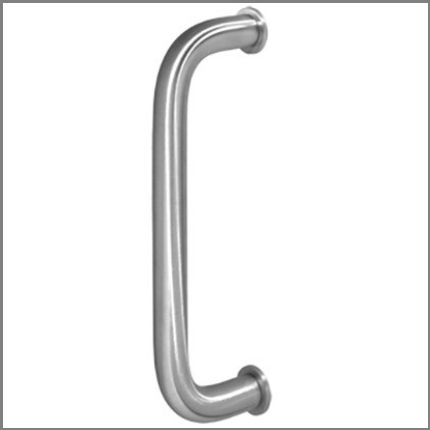

Rockwood #Y102 - Y109 Standard Weight Door Pull Bar With Base Plates, 5.5" - 12" CTC

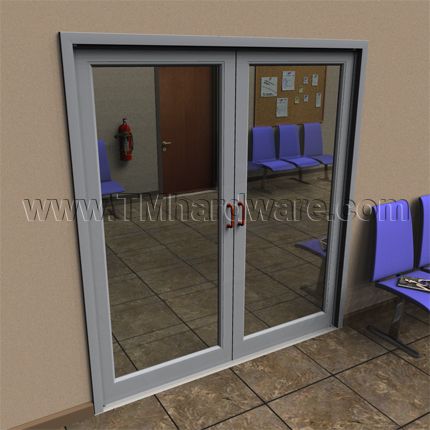

Rockwood standard weight architectural door pull with base plates, mounted with thru-bolt for wooden and metal doors, 1.75" thick. Base plates provide additional stability, ideal for wooden or glass doors (glass door compatible mounting is available through our office). Many sizes, materials and finishes available, see below.
PRICED PER PIECE
See tabs below for additional information
Rockwood Standard Weight Door Pulls with Base Plates for Commercial Applications:

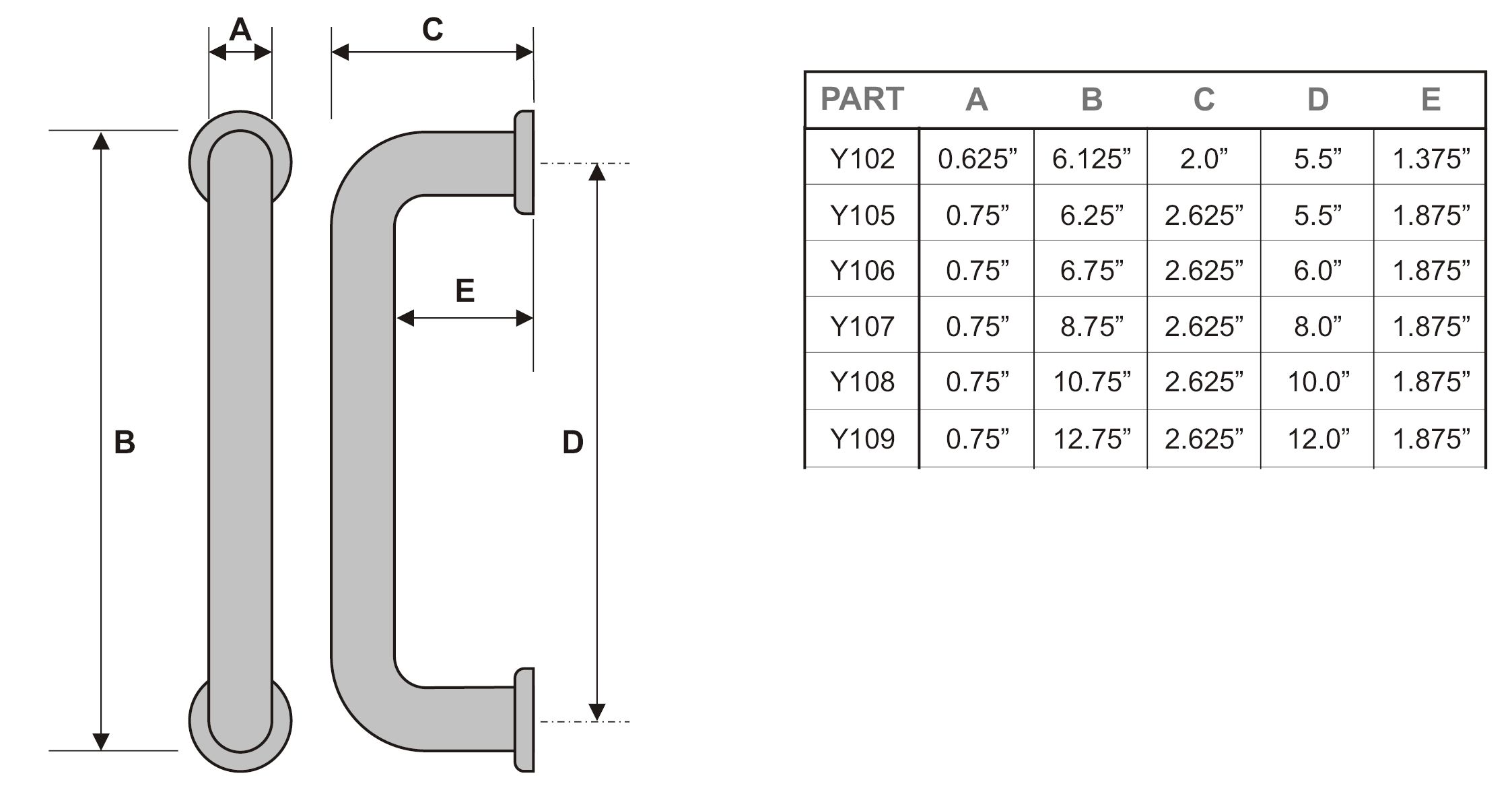

Product Dimensions: 6 sizes available (chart-inches)
| Product # | Material Size | CTC | Overall Size | Base | Projection | Clearance | Weight |
| Y102 | 5/8" | 5-1/2" | 6-1/8" | 7/8" | 2-1/8" | 1-1/2" | 0.6 lbs |
| Y105 | 3/4" | 5-1/2" | 6-7/8" | 1-1/16" | 2-3/8" | 1-5/8" | 1.2 lbs |
| Y106 | 3/4" | 6 | 7-1/16" | 1-1/16" | 2-3/8" | 1-5/8" | 1.3 lbs |
| Y107 | 3/4" | 8 | 9-1/16" | 1-1/16" | 2-3/8" | 1-5/8" | 1.6 lbs |
| Y108 | 3/4" | 10 | 11-1/16" | 1-1/16" | 2-3/8" | 1-5/8" | 1.8 lbs |
| Y109 | 3/4" | 12 | 13-1/16" | 1-1/16" | 2-3/8" | 1-5/8" | 2.1 lbs |
Materials: Aluminum, Brass, Bronze, Stainless Steel
Features: 1/8" diameter base plates improve stability on the door. Recommended for glass and wood doors.
Fastener: 1/4-20 x 2.5" thru bolt and finish washer (standard 1.75" door). Included.
Additional Fastener Options:
- For doors other than 1-3/4" thick, please state door thickness in order comments
- Back to back mounting in pairs, Types 5, 13 - See Additional Options, can be purchased through our office
- Concealed mounting single pulls, Types 6, 6R, 8 - See Additional Options, can be purchased through our office
Door Type: Wooden or Metal, 1-3/4" doors.
Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warrany Policy.
Click here to view our Rockwood 110 Heavy Weight Door Pulls with Base Plates
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNY102,Y105,Y106,Y107,Y108,Y109
- Finishes
-

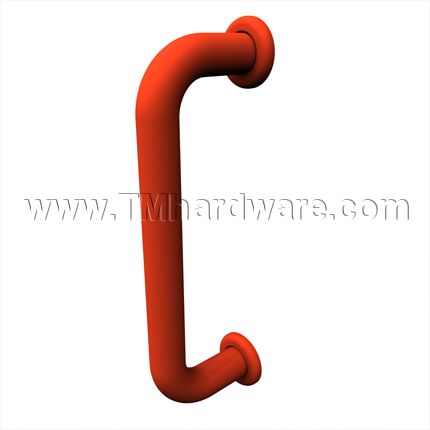

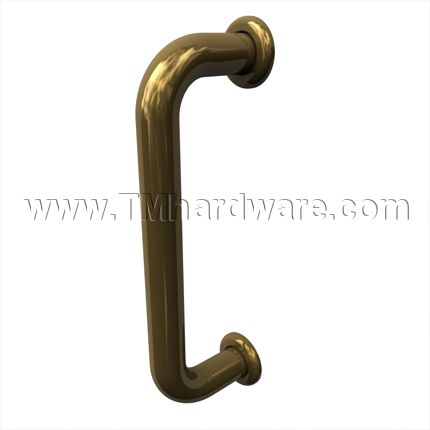

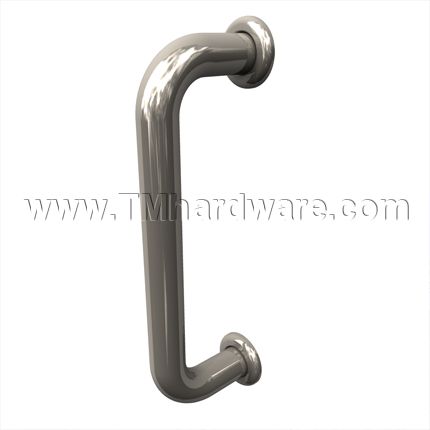

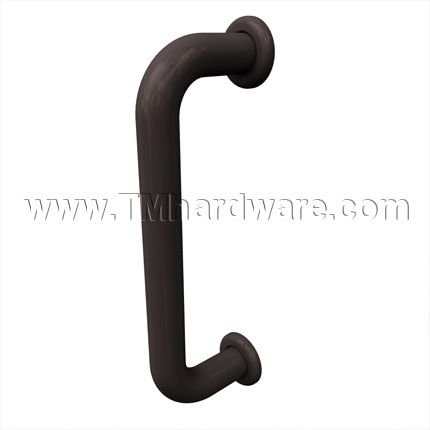

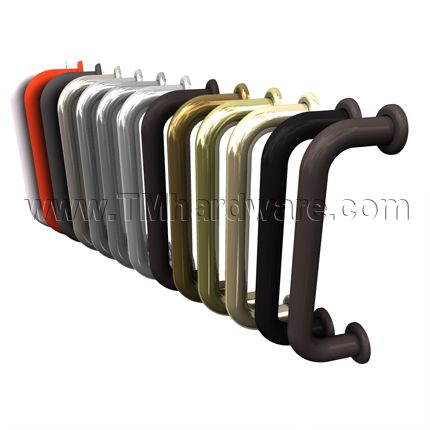

FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Oil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Extra Dark Bronze Anodized Alum. (314), Black Anodized Aluminum (315), White Powder Coat, Red Powder Coat, Black Powder Coat, Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished, Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin, 316 Alloy Stainless Steel, Satin
-
|
STANDARD (INCLUDED) MOUNTING TYPE - FOR 1-3/4" DOORS |
|
 |
|
|
OPTIONAL MOUNTING TYPES - PLEASE PURCHASE THROUGH OUR OFFICE |
|
|
To view more details on these mounting types, see Mounting Types for Door Pulls. |
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Polished Chrome-US26/625
- Satin Chrome-US26D/626
- Clear Anodized Aluminum-US28/628
- Dark Bronze Anodized Aluminum-313/710
- Ex Dk Brz Anodized-314
- Black Anodized Aluminum-315/711
- White Powder Coat-WPC
- Red Powder Coat-RPC
- Black Powder Coat-BPC
- Polished Stainless Steel-US32/629
- Satin Stainless Steel-US32D/630
- Satin Microshield Coated-US32DMS
- Polished 316 Alloy-US32316
- Satin 316 Alloy-US32D316
Door Pull Bar complies with ANSI A156.6: J401
