Rockwood 94L Flush Pull with Lugs for Thru Bolt - 3.5" x 5"

Rockwood 94L Flush Pull with Lugs for Thru Bolt - 3.5" x 5"
Rockwood Company

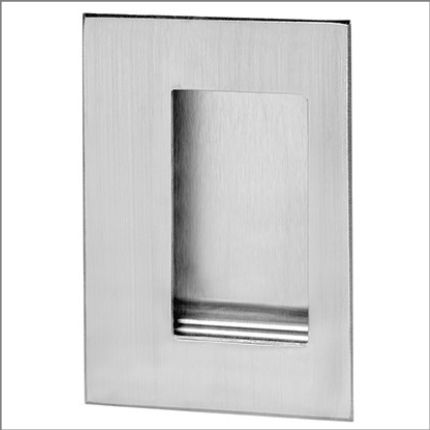

Rockwood 94L flush pull, is equipped with lugs for thru bolts. Pull is square cornered and extra heavy duty (.125" thick), and for use on doors of 1.75" thickness. Fasteners are not on the pull side, giving the door pull a smooth look. Available in many finishes and materials, the size of the this pull is 3.5" x 5". See below for details and options.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      RK94L US32D
    • Market price:$66.00
      • save 10%
    • Starting price: Price: $59.40 per item


    Rockwood 94L commercial grade and long lasting flush pull. It is extra heavy duty (.125" thick), and comes equipped with lugs for thru bolts. Great for use on all standard doors in high traffic areas. The fasteners are not on the pull side, giving the pull a very smooth look.

    Materials: Brass, Bronze, Stainless Steel

    Finishes: Polished Brass; Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Satin Chrome; Stainless Steel, Satin; Stainless Steel, Polished; Satin MicroShield Coated; Polished 316 Alloy; Satin 316 Alloy (All finishes comply with BHMA codes. See Product Data for compliance details.)

    A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32​ - Enhanced corrosion resistance of stainless steel. 316 Alloy - Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution. Microshield Coated - The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.

    Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.

    Features:

    • Includes lugs for thru bolts used for mounting.
    • Fasteners are not on pull side of door.
    • For standard 1.75" thick doors. For door thickness other than 1.75", please contact us or call us at 845-388-1300.
    • Cups are painted black on all finishes except for stainless steel.

    ​Options: TORX Screws. See options tab for details and pricing.

    Size: 3.5" x 5"

    Weight: 0.6 lbs.

    Grip Opening: 1.75" x 3.125"

    Depth: 0.875"

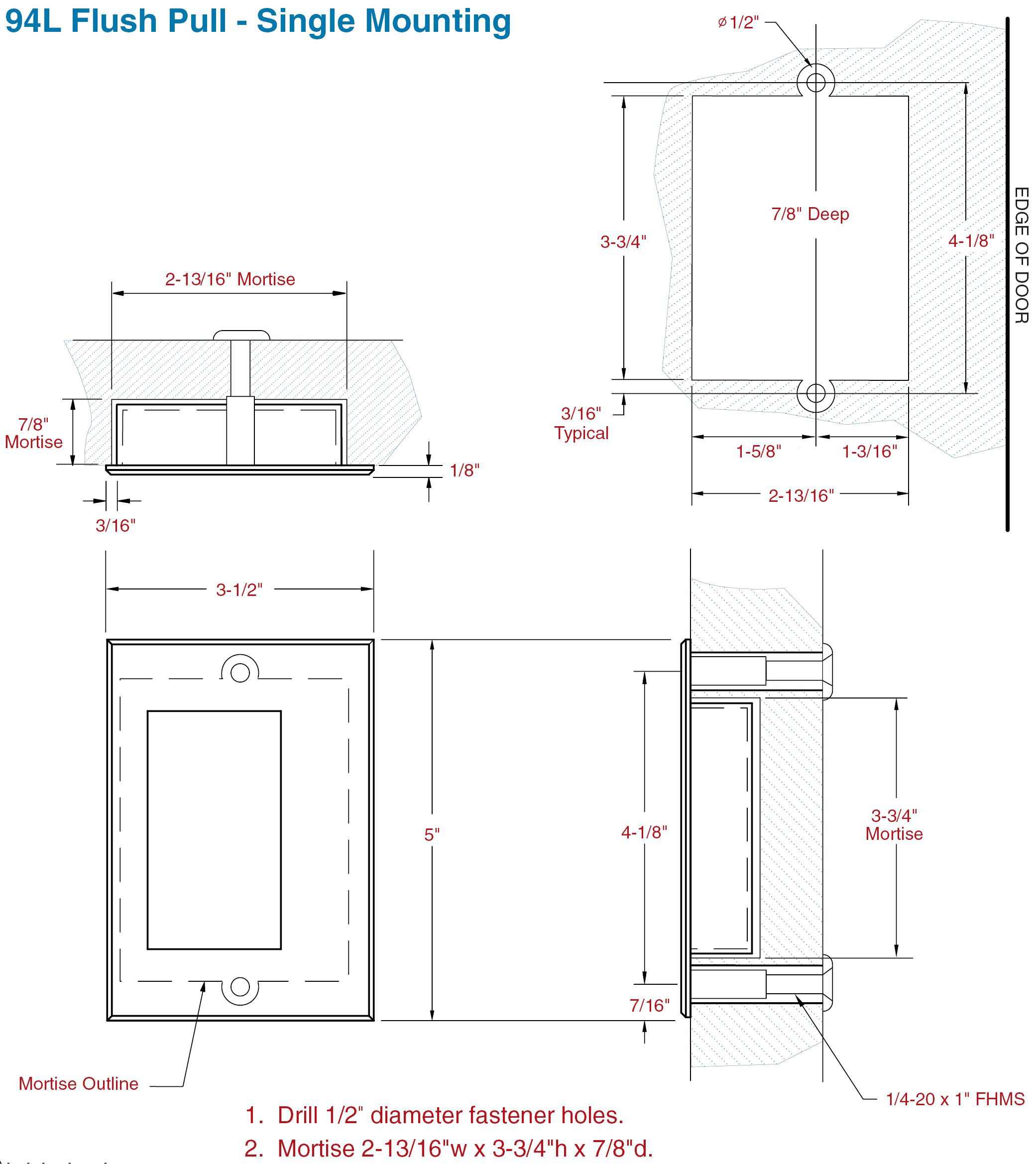

    Mortised Channel: 2.8125"(W) x 3.75"(H) x 0.875"(D)

    Fastener: 1/4-20 x 1-1/2" thru bolt and finish washer (standard 1.75" door). Included.

    Priced per piece.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in workmanship and materials.

    Click here to view our Full Warrany Policy.

    Click here to view its Rockwood's 94 Partner Door Pull.

      • SKU
        RK94L US32D
    • QuickShip
      No
    • Manufacturer
      Rockwood Company
    • MPN
      94L
    • Options
      None, TORX Screws
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Oil Rubbed Bronze, Equiv. (10BE), Satin Chrome (US26D), Polished Stainless Steel (US32), 316 Alloy Stainless Steel, Polished, Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin, 316 Alloy Stainless Steel, Satin



     TORX SCREWS

    Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used.

    Door pull needs a total of two screws.

    Size: #8 x 3/4" FH SMS

    Priced per 4 screws: $3.60



    All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

    • Polished Brass-US3/605
    • Satin Brass-US4/606
    • Satin Bronze-US10/612
    • Oil Rubbed Bronze-US10B/613
    • Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
    • Polished Chrome-US26/652
    • Satin Chrome-US26D/626
    • Stainless Steel, Polished/US32/629
    • Stainless Steel, Satin-US32D/630
    • Satin MicroShield Coated-US32DMS
    • Polished 316 Alloy-US32316
    • Satin 316 Alloy-US32D316

    ​Push Plate complies with ANSI A156.6: J403
