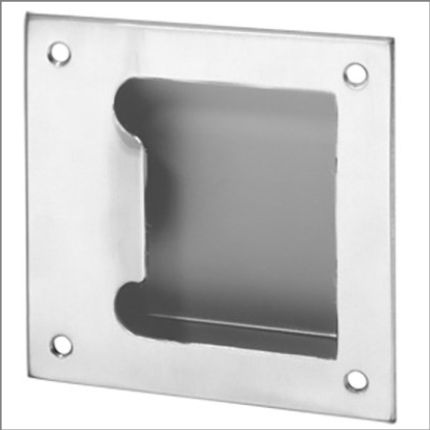

Rockwood BF97 Barrier Free Flush Door Pull - 5" x 5"
Rockwood's BF97 barrier free flush pull, is extra heavy duty (.125" thick), high quality and architectural grade. It is the perfect pull for any commercial door, and is ADA compliant with a large grip opening. Size of door pull is 5" x 5" and various finishes are available. See options and details below.
PRICED PER PIECE
Rockwood's BF97 commercial grade and long lasting push plate. It is an extra heavy duty (.125" thick) barrier free grip, high quality flush pull and great for use on all doors in high traffic areas, especially in wheelchair accessible facilities.Â
Materials:Â Brass, Bronze, Stainless Steel
Finishes:Â Polished Brass;Â Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent;Â Satin Chrome; Satin Stainless Steel; Satin MicroShield Coated (All finishes comply with BHMA codes. See Product Data for compliance details.)
Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Microshield Coated - The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.
Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.
Features:Â ADA compliant-wheelchair accessible.
Mounting Options:Â
- BF97Â -Â standard mounting with screws

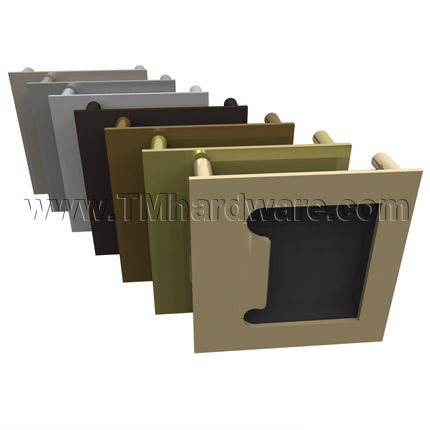

- BF97L - door pull with stud welded lugs (for mounting purposes)
Options: TORX screws. See options tab for more details and pricing information.
Size:Â 5" x 5"
Weight: 1.0 lb
Depth:Â 0.875"
Grip Opening: 2.5" x 3.5"

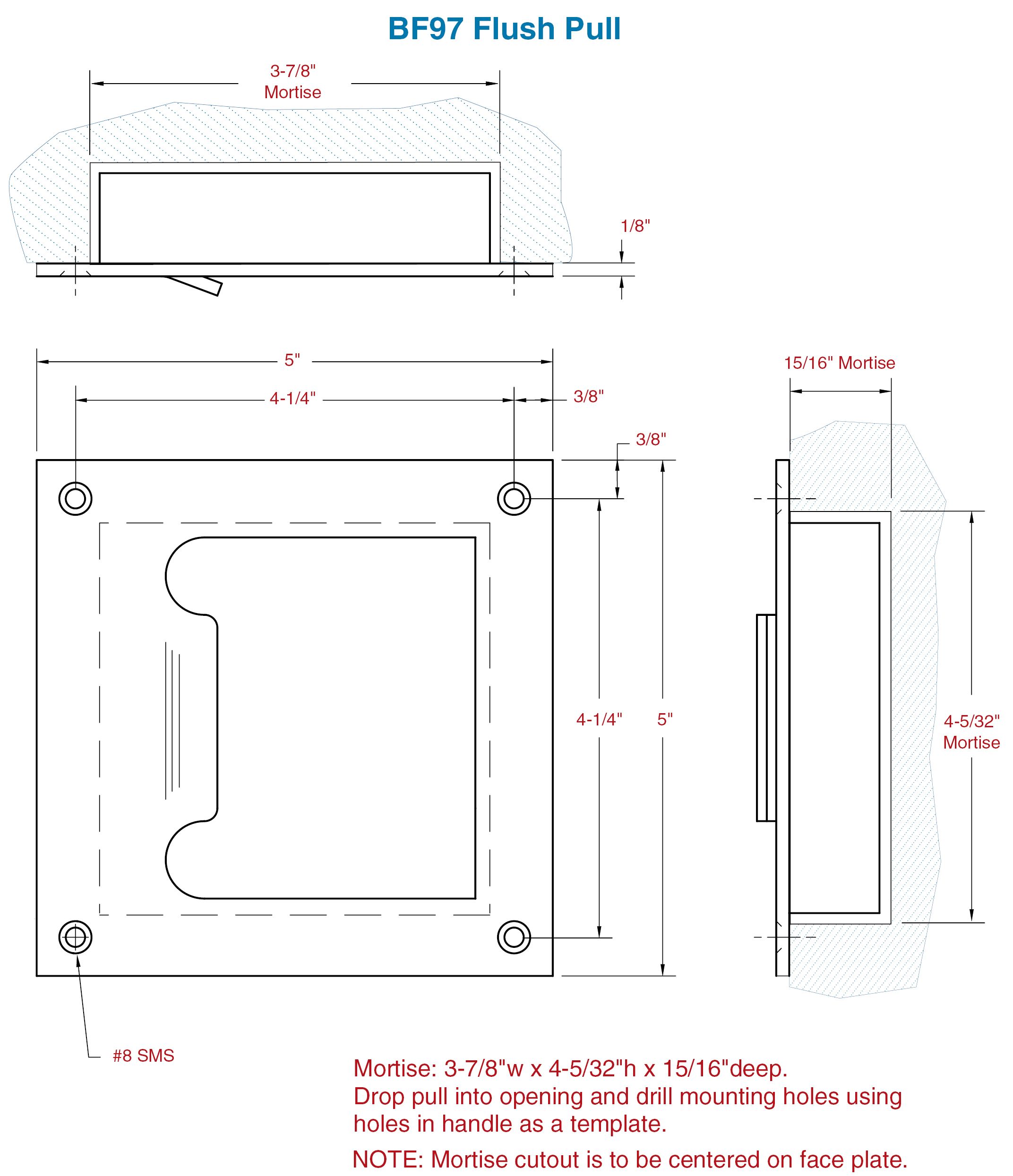

Mortise Channel: 3.875"(w) x 4.15625"(h) x 0.9375"(d)
Fastener:Â BF97Â - #8-7/8" SMS. Included.Â
Fastener:Â BF97LÂ - #10-24 stud welded lugs and #10-24 thru bolts. Included.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warrany Policy.
Click here to view our Rockwood "T" Series-Tubular Door Pulls.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNBF97, BF97L
-
MountingStandard (BF97), Stud Welded Lugs (BF97L)
-
OptionsNone, TORX Screws
- Finishes
-
FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin
-
Â
 TORX SCREWS |
|
Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used. Push plate needs a total of four screws. Size: #8 x 3/4" FH SMS Priced per 4 screws: $7.20 |
|
 STUD WELDED LUGS |
|

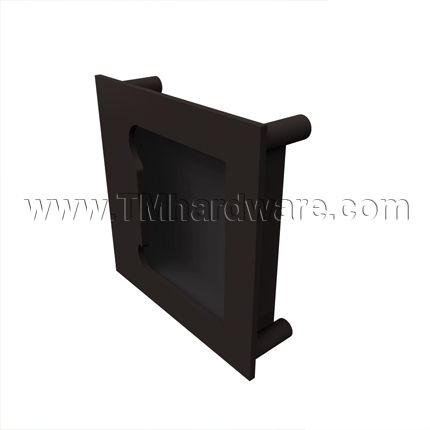

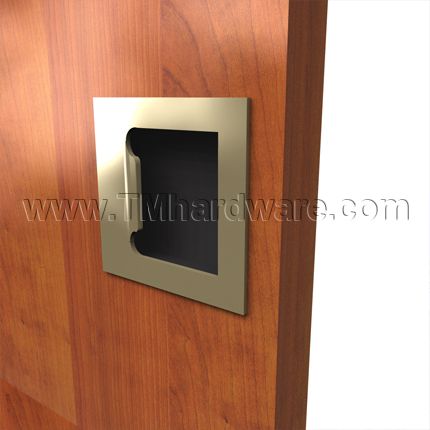

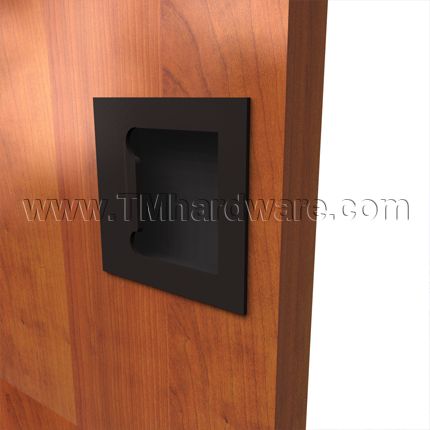

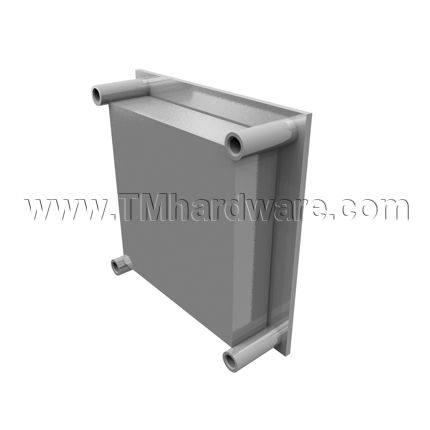

BF97L-This door pull can be purchased with stud welded lugs. The lugs are welded onto the product to enable easy mounting from the other side of the door. This feature is cost free. Simply select the BF97L option when you're ready to order. |
Â
Door pull is ADA compliant-wheelchair accessible.
All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Polished Chrome-US26/652
- Satin Chrome-US26D/626
- Satin Stainless Steel-US32D/630
- Satin MicroShield Coated-US32DMS
​Push Plate complies with ANSI A156.6: J403
