Rockwood 550 Lever Extension Flush Bolt, Extra Wide Face Plate
Rockwood's 550 Lever Extension Flush Bolt with an extra wide face plate, is designed to hold your door in place when the lever is manually extended. This product is suitable for the top or the bottom of the door, and is mainly used for hollow metal doors. Bolt is made of brass and is available in many finishes. See below for dimensions and options.
PRICED PER ITEM
Rockwood's lever extension flush bolts are architectural grade products and are available in many finishes and rod lenghts.

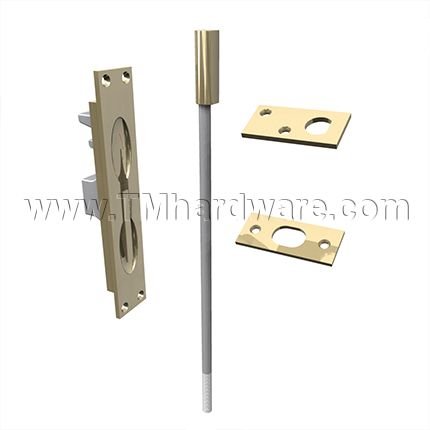

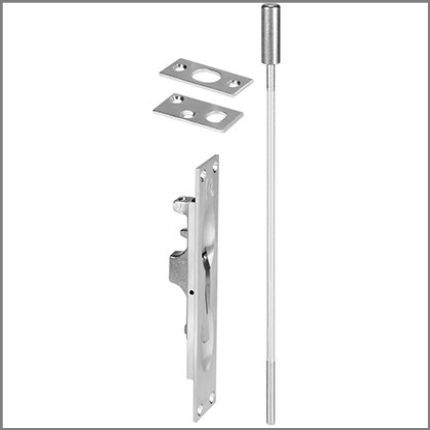

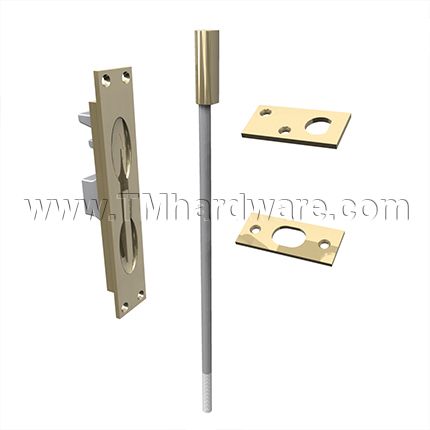

Set Includes: Face Plate; Rod; Bolt Head; Guide Plate; Strike Plate
Materials: Brass
Features:
- For Fire Rated Hollow Metal Swinging Doors measuring up to 4'(W) x 10'(H) rated up to and including 3 hours.
- 3/4" bolt throw and rod backset
- 12" rod length-from the center of the face plate to the bolt end (while retracted)
- 1-1/2" adjustable bolt head
Options:
- Other rod sizes available: 18", 24", 36", 48". Make your selection above.
For custom rod sizes please call us at 845-388-1300. - #570 Dust Proof Strike available to prevent dirt blocking the bottom strike.
Face Plate: 1-1/4"(W) x 6-3/4"(H)-extra wide face plate
Strike Plate: 15/16" x 2-1/4"
Guide Plate: 1"x 2"
Rod: 1/4-20 threaded
Fasteners: 8 each-#8 x 3/4" FH combo screws. Included.
Weight: .85 lbs
Priced per set.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact dimensions
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
Click here to view all our Door Bolts.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPN550
-
Bolt Head Length1-1/2" (Standard), 2-1/2" (Custom #550B Head)
-
Rod Length12" (Standard), 18" (+550ROD18), 24" (+550ROD24), 36" (+550ROD36), 48" (+550ROD48)
- Finishes
-

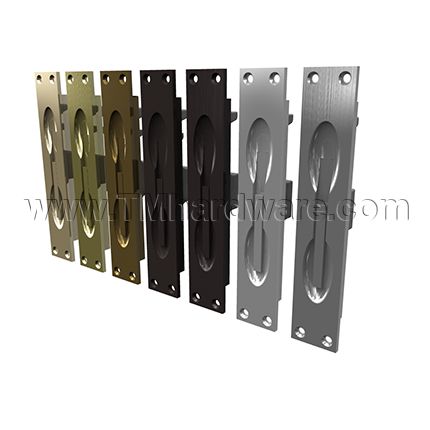

FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Satin Nickel (US15), Polished Chrome (US26), Satin Chrome (US26D)
-
*All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Bright Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze-US10BE/613E
- Satin Nickel-US15/619
- Bright Chrome-US26/625
- Satin Chrome-US26D/626
*Complies with ANSI A156.1: L04251
