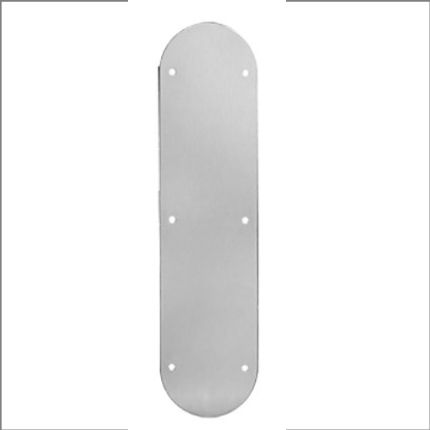

Rockwood 71RE Push Plate, Round Edge, Heavy Weight .062" Thick
Rockwood's 71RE heavy weight and round edged high quality push plate. Available in many sizes, weights and finishes. See options and details below.
PRICED PER PIECE
Rockwood's 71RE commercial grade and long lasting push plate, is heavy weight (.062" thick), round cornered and contains a beveled edge. Designed with a clean, smooth look and great for use on any door of your choice, particularly doors in high traffic areas.Â
Materials: Aluminum, Brass, Bronze, Stainless Steel
Finishes: Dark Oxidized Satin Bronze, Equivalent; Satin Stainless; Satin MicroShield Coated (All finishes comply with BHMA codes. See Product Data for compliance details.)
A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Microshield Coated - The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.
Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.
Features: Four beveled edges.
Options:Â For details and pricing, see options tab.
- TORX - security torx screws
- SA-self adhesive mounting-1/16" double face foam tape (no screw holes)
- Engraving
- Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)

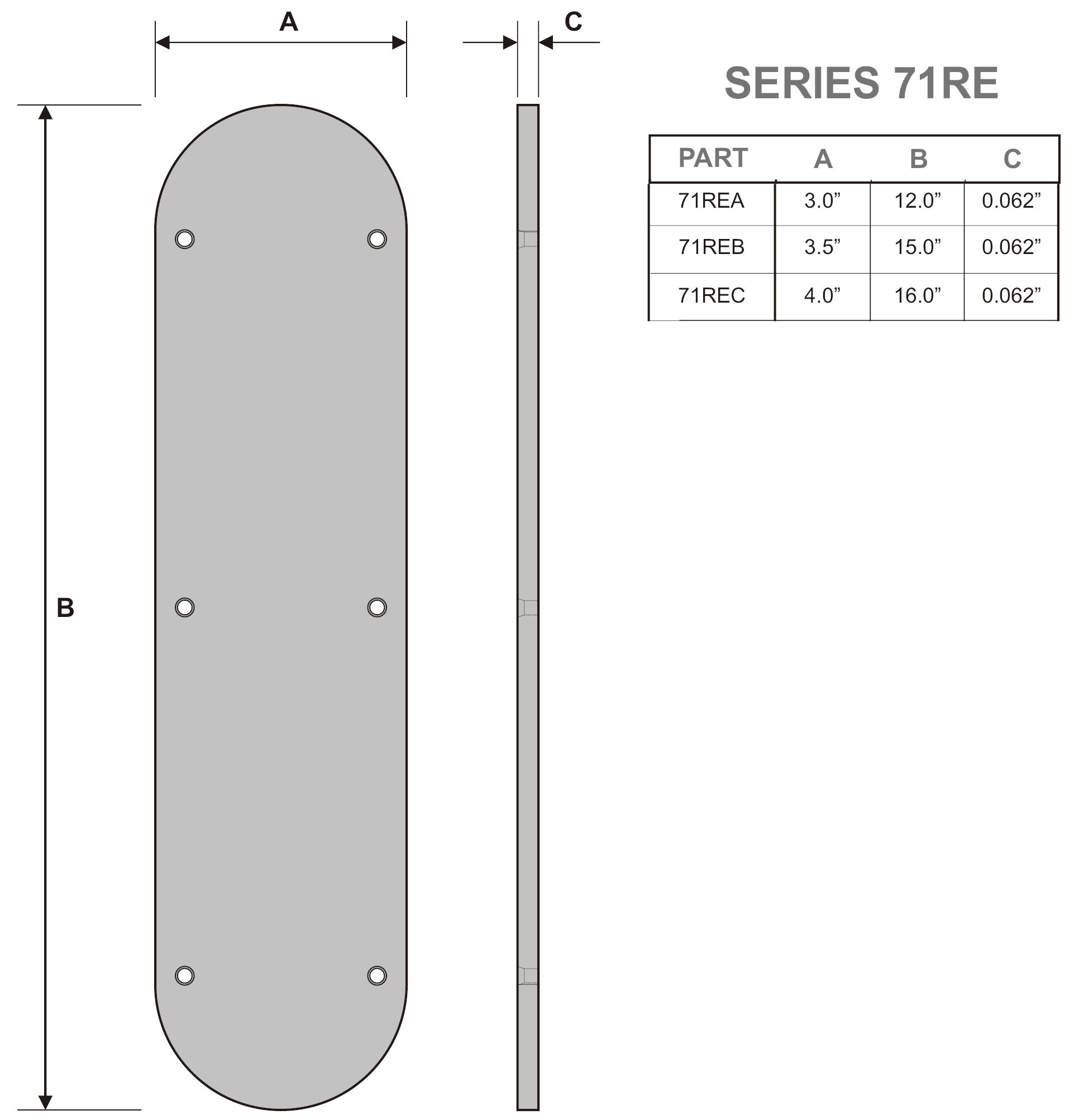

Sizes:Â 3 available sizes (chart)
 Product # |  Size (Inches) |  Weight |
 71REA |  3 x 12 |  0.9 lbs |
 71REB |  3-1/2 x 15 |  1.1 lbs |
 71REC |  4 x 16 |  1.2 lbs |
Fastener:Â #6 x 5/8" OH SMS. Included.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warrany Policy.
Click here to view Rockwood's 73 Extra Heavy Duty Square Cornered Plate.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPN71RE
-
Size3" x 12" (71REA), 3-1/2" x 15" (71REB), 4" x 16" (71REC)
-
OptionsNone, 6 TORX Screws, SS, 6 TORX Screws, Brass, Adhesive Mounting, 1"-12", Adhesive Mounting, 12"-48", Cylinder Cutout, Turn-knob Cutout
- Finishes
-
FinishSatin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Polished Chrome (US26), Satin Chrome (US26D), Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin
-
Â
To order products with more than one option, please contact us or call us at 845-388-1300.
 TORX SCREWS |
|
Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used. Push plate needs a total of six screws. Size: #6 x 5/8" Oval Head SMS Priced per 6 screws: Stainless Steel-$4.80 Â Â Â Â Brass Plated-$16.20 |
|
 SELF-ADHESIVE MOUNTING |
|
1/16" double face foam tape. No screw holes on the plate. This tape is applied by the buyer for easy installation. Price: Up to 12" Height-$15.00 Â Â 12"-48" Height-$32.00 |
|
 ENGRAVING |
|
Standard engraving words are: Push/Pull/Men/Women, 3/4" high condesed block letters with enamel fill. Other letters and styles are available upon order. To order standard or custom engravings, and for details and pricing please contact us or call us at 845-352-3200. Price per engraving: $16.00 ($19.20 for Stainless Steel) Adhesive mounting is available for $6.40 |
|
 CYLINDER(CFC)/ TURN KNOB(CFTT) CUTOUTS |
|
Cylinder Cutouts are holes cut out from the top of the plate for cylinders (key locks) or thumbturns. Turn Knob Cutouts are holes cut out from the top of the plate for a turn knob to be installed. Price per cutout: $2.40 |
