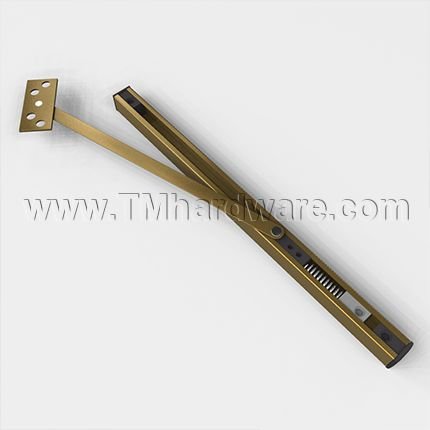

Rockwood OH1000M Standard Duty Surface Mounted Overhead Multi Function Holder and Stop
Rockwood's OH1000M Standard Duty Surface Mounted Overhead Holder and Stop is recommended for use in medium traffic with medium weight doors. Holder is multi functional, non-handed, made of stainless steel and is available in two finishes. See below for dimensions and options.
PRICED PER SET
Rockwood's OH1000M Surface Mounted, Overhead Multi Function Stops are used to extend the life of the door, frame and any door closing devices. They may be necessary if there are strong winds, high traffic or abuse.Â
* When used in conjunction with a floor closer you have absolute door control, top and bottom. See our full line of Door Closers.
* Provides positive deadstop at selected degree.
* Standard mount on push side of door.
* Adaptable as hold open and/or stop.
*Â Hold Open Function:Â Door remains open near deadstop location.
*Â Stop Function: Door deadstops at a particular degree of opening.

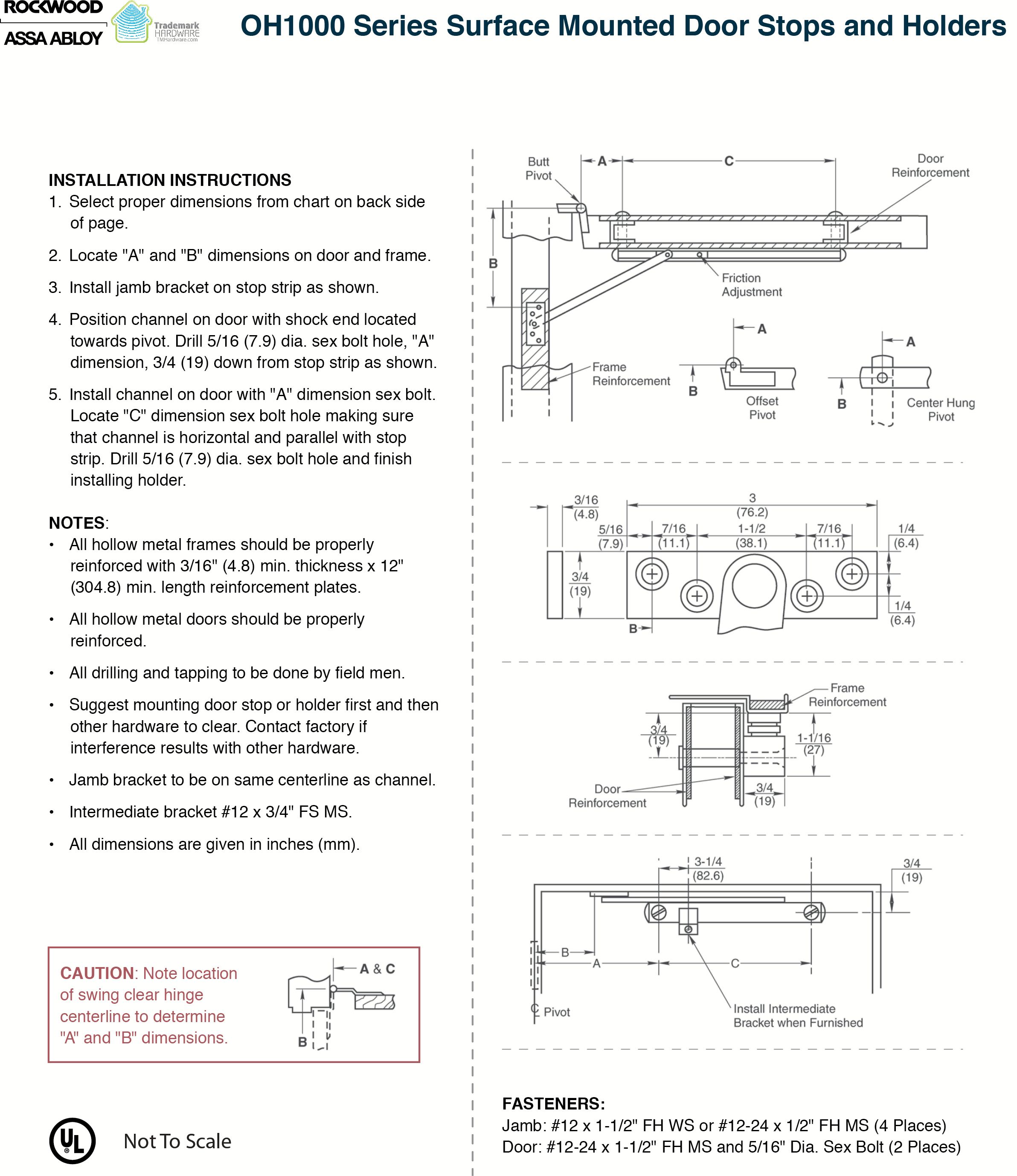

* Click here to view How to Convert from Hold Open to Stop Function and Select Degree of Stop.
Features:
- Single acting doors
- Non-handed
- Slide track design
- Recommended for medium traffic, medium weight doors
- Degree of opening fully adjustable and can be adapted to changing needs
- Heavy shock absorber spring provides 5-7 degree compression before deadstop
- Multi Function unit is shipped as a stop. Can be converted to hold open or friction in the field. MF5012 KIT (adapter kit) included.
- Complete screw packet kit for installation in wood and machine screws for door and frame
- Durable slider cam and shock block
- 110° maximum opening
- 1-3/4" door thickness. For thicker doors, please contact us or call us at 845-388-1300.
- 3/4" channel
- Stop function UL listed for fire-door assemblies
- Warning: Hold open function cannot be used on labeled openings.
- For pull side mounting or flush and rabbeted mounting on push side use angle jamb bracket adapter JB1000. To order, please contact us or call us at 845-388-1300.
Options:Â TORX Screws for exposed fasteners available. However, note that heavy duty units should be considered for high security applications. Please contact us or call us at 845-388-1300 for pricing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.Â
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
Click here to view Rockwood's Overhead Concealed Heavy Duty Door Stop.
-
MaterialStainless Steel
-
StrengthStandard / Medium Duty
-
FunctionMulti-Function
-
MountingSurface Mount
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNOH1000
-
Product #ROH1001, ROH1002, ROH1003, ROH1004, ROH1005
- Finishes
-
FinishOil Rubbed Bronze (US10B), Satin Stainless Steel (US32D)
-
- Compliance Details
-
Compliance DetailsBHMA Certified
-
ANSI DesignationC05542
-
Warranty1 Year Limited Warranty
-
